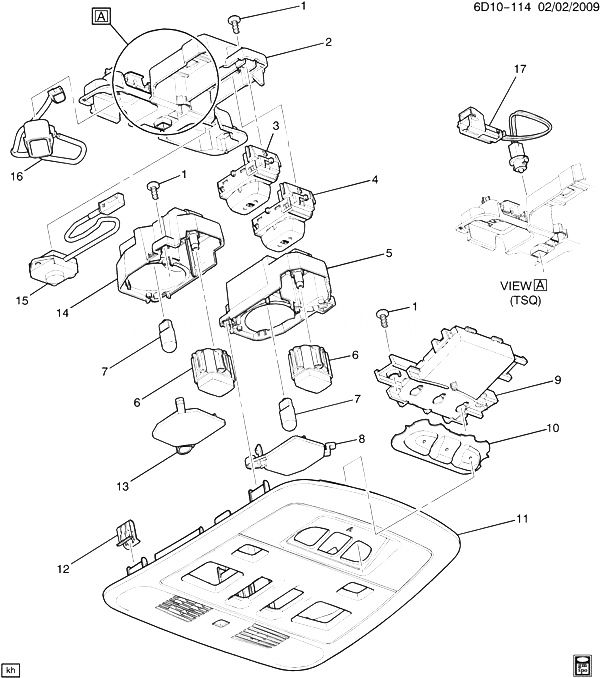

(6D10-114) 2011-2013 DM,DN47 ПОТОЛОЧНАЯ КОНСОЛЬ (SUNROOF CBF, GARAGE OPENER UG1, EXC MOVEMENT SENSOR UTV) CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11562028 BOLT, RF CNSL (PART OF 11) D47 2011-2013 AR
002 PLATE, RF CNSL BKG (PART OF 11) 2011-2013
003 25789090 SWITCH, SUN RF SUNSHADE (PART OF 11) D 2011-2013 01
004 25789091 SWITCH, SUN RF (PART OF 11) D 2011-2013 01
005 25886563 LAMP, RF CNSL CTSY RDG (PART OF 11) (INCLS 6-8) D35-47-69 2011-2013 01
006 PUSHBUTTON, W/S HDR CTSY RDG LP SW (PART OF 5, 11, 14) 2011-2013
007 01999382 BULB, (PART OF 5, 11, 14) (ACDelco #W5WLL) (LONGER LIFE) 2011-2013 02
008 25886565 LENS, RF CNSL RDG LP (PART OF 5, 11) D35-47-69 2011-2013 01
009 20929720 TRANSMITTER, GARAGE DR OPENER (PART OF 11) (NO NIGHT TIME BACKLIGHT IN P/BTTNS) D47 2011-2013 01
010 20791938 PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 11) (EBONY) DM, DN47 2011-2013 01
011 20996548 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, UE1, UG1, UQA, 4AL, 4AM, 4AR) (EXC TSQ, UTV, WXS) 2011-2013 01
011 20881321 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, TSQ, UG1, UQS, 4AL, 4AM, 4AR, 4EV) (EXC UE1, UPF, UTV, WXS) 2013-2013 01
011 20881321 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DN47 (CBF, TSQ, UG1, UQS, 4AL, 4AM, 4BZ, 4EV) (EXC UE1, UPF, UTV, WXS) 2013-2013 01
011 20881323 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, UG1, UQA, 4AL, 4AM, 4AR, 4EV) (EXC TSQ, UE1, UTV, WXS) 2013-2013 01
011 20895959 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, UG1, UQS, 4AL, 4AM, 4AR, 4EV) (EXC TSQ, UE1, UTV, WXS) 2013-2013 01
011 20996544 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, UE1, UG1, UQS, 4AL, 4AM, 4AR, 4EV) (EXC TSQ, UTV, WXS) 2013-2013 01
011 25940367 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, TSQ, UE1, UG1, UQS, 4AL, 4AM, 4AR, 4EV) (EXC UTV, WXS) 2013-2013 01
011 25940367 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DN47 (CBF, TSQ, UE1, UG1, UQS, 4AL, 4AM, 4BZ, 4EV) (EXC UTV, WXS) 2013-2013 01
011 25940367 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DM47 (CBF, TSQ, UG1, UQS, 4AL, 4AM, 4AR, 4EV) (EXC UE1, UTV, WXS) 2013-2013 01
011 25940367 CONSOLE, RF (INCLS 1-10, 12-17) (EBONY) DN47 (CBF, TSQ, UG1, UQS, 4AL, 4AM, 4BZ, 4EV) (EXC UE1, UTV, WXS) 2013-2013 01
012 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 11) 2011-2013 04
013 25886564 LENS, RF CNSL RDG LP (PART OF 11, 14) D35-47-69 2011-2013 01
014 25886562 LAMP, RF CNSL CTSY RDG (PART OF 11) (INCLS 6, 7, 13) D35-47-69 2011-2013 01
015 15246939 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 11) (RDO VOL COMP) DM, DN (EXC UTV) 2011-2013 01
016 13576669 MICROPHONE, MOBILE TEL (PART OF 11) (2-CAVITY) D 2012-2013 01
017 25821823 LAMP, RF CNSL CTSY (PART OF 11) (PIN SPOT LED) D35-47-69 2011-2013 01
