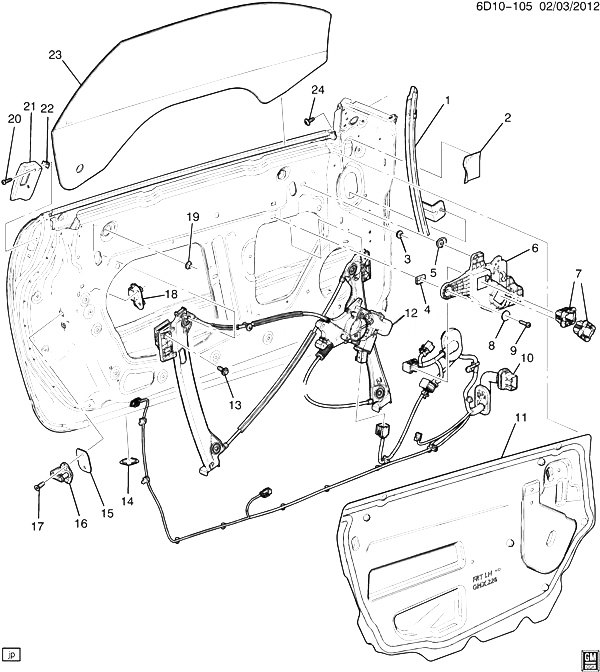

(6D10-105) 2011-2013 D47 ФУРНИТУРА ДВЕРИ/ПЕРЕДНЯЯ PART 2 CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25780433 RETAINER, FRT S/D WDO FRT W/STR D47 2011-2013 01
001 25780434 RETAINER, FRT S/D WDO FRT W/STR D47 2011-2013 01
002 BARRIER, FRT S/D INR PNL SND 2011-2013
003 11519612 NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (FRT S/D WDO UPR W/STR RET) 2011-2013 02
004 20310739 NUT, ELEK SYS PWR SPLY MDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D47 2011-2013 02
005 11570209 STUD, ELEK SYS PWR SPLY MDL BRKT D 2011-2013 04
006 25785810 BRACKET, ELEK SYS PWR SPLY MDL D 2011-2013 01
006 25785811 BRACKET, ELEK SYS PWR SPLY MDL D 2011-2013 01
007 88956522 RETAINER, FRT S/D WRG HARN (12-WAY DOCK LOCK, FEMALE) (W/O LEADS) (7.068) D35-47-69 2011-2013 01
008 11509262 WASHER, FL 6.8X25.40X2.30 STL PEOR (ELEK SYS PWR SPLY MDL) 2011-2013 02
009 03539184 BOLT, ELEK SYS PWR SPLY MDL BRKT (14.683) D47 2011-2013 02
010 20940856 HARNESS, FRT S/D DR WRG DM, DN47 (UQA) 2011-2013 01
010 20940857 HARNESS, FRT S/D DR WRG DM, DN47 (UQA) 2011-2013 01
010 22790799 HARNESS, FRT S/D DR WRG DM, DN47 (UQS) 2012-2013 01
010 22790800 HARNESS, FRT S/D DR WRG DM, DN47 (UQS) 2012-2013 01
011 22774499 DEFLECTOR, FRT S/D WAT D47 2011-2013 01
011 22774500 DEFLECTOR, FRT S/D WAT D47 2011-2013 01
012 22787441 REGULATOR, FRT S/D WDO (INCLS 13) (10.783) (ACDelco #22787441) D47 2011-2013 01
012 22787441 REGULATOR, FRT S/D WDO (INCLS 13) (ACDelco #22787441) D47 2011-2013 01
012 22787442 REGULATOR, FRT S/D WDO (INCLS 13) (10.783) (ACDelco #22787442) D47 2011-2013 01
012 22787442 REGULATOR, FRT S/D WDO (INCLS 13) (ACDelco #22787442) D47 2011-2013 01
013 BOLT, FRT S/D WDO REG (PART OF 12) 2011-2013
014 25912394 PLUG, FRT S/D ACC HOLE D47 2011-2013 04
015 12451685 SHIM, FRT S/D LK STKR DM, DN47 2011-2013 02
016 13503001 STRIKER, FRT S/D LK DM, DN, DR 2011-2013 02
017 11518445 SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (FRT S/D LAT STKR) 2011-2013 04
018 13503002 PLATE, FRT S/D LAT STKR ANC (USE T/W 25842437, 20832573 25887002) DM, DN47 2011-2013 02
019 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT S/D WDO REG) 2011-2013 10
020 11516638 SCREW, TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (DR LAT REL SW) (8.906) 2011-2013 04
021 22751942 SWITCH, DR LAT EXTR REL DM, DN47 2011-2013 01
021 22751943 SWITCH, DR LAT EXTR REL DM, DN47 2011-2013 01
022 11570654 NUT, FRT S/D HDL SW (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) D47 2011-2013 04
023 25780452 WINDOW, FRT S/D D47 2011-2013 01
023 25780453 WINDOW, FRT S/D D47 2011-2013 01
024 11609665 SCREW, MACH RD WA HD 6-LOBED M6X1X20 (FRT S/D WDO UPR FRT W/STR RET) 2011-2013 02
