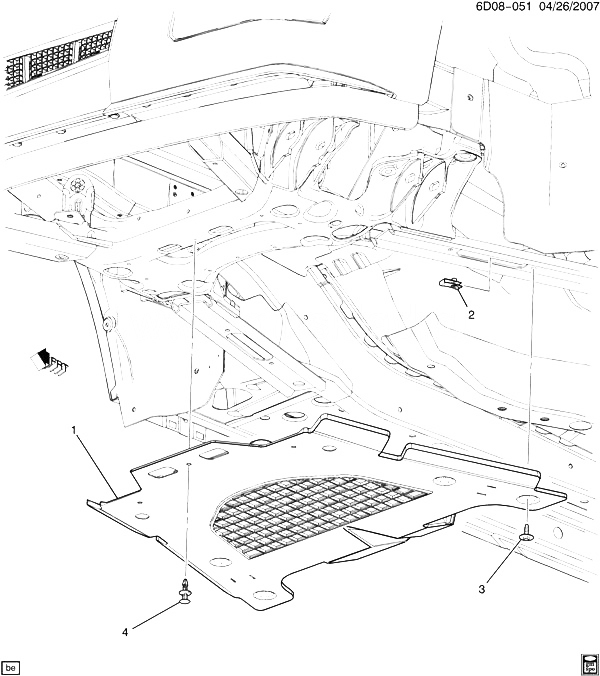

(6D08-051) 2012-2013 DM47 ЗАЩИТНАЯ ПАНЕЛЬ ДВИГАТЕЛЯ (LFX/3.6-3, REAR WHEEL DRIVE MN6,MX0) CADILLAC - CTS COUPE 2013
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15849031 | SHIELD, F/CMPT LWR NOISE | DM47-69 (LFW, LFX, MN6, MX0) | 2012-2013 | 01 |
| 002 | 11609385 | NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (F/CMPT LWR NOISE SHLD BRKT) | 2011-2013 | 04 | |
| 003 | 11609681 | BOLT, HEX W/FL WA, M6X1X25, 14 THD, 24 OD, GM6202M STEEL, GMW3200 (F/CMPT LWR NOISE SHLD) | 2011-2013 | 04 | |
| 004 | 11589291 | RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT LWR NOISE SHLD) | 2011-2013 | 03 |
