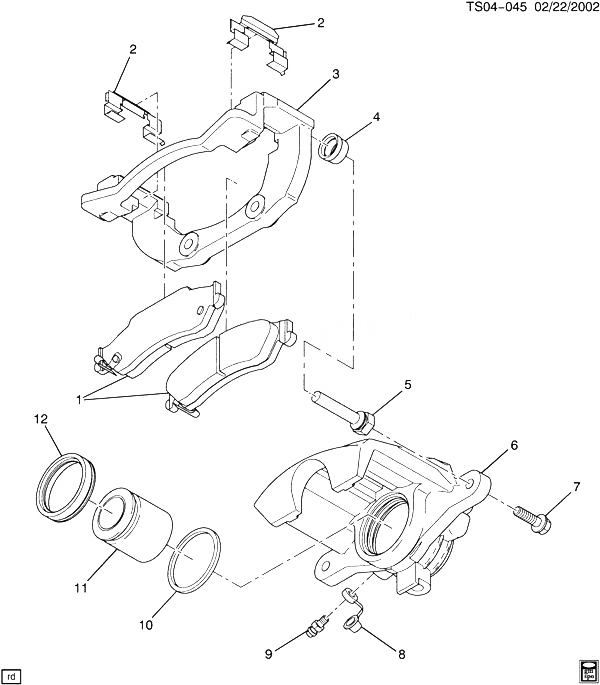

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20962994 |
PAD KIT, RR DISC BRK (INCLS 2) (INCLS BOTH STYLES OF SPRING CLIPS AVAILABLE FOR VEHICLE) (ACDelco #171-1062) |
DM (JE5) |
2011-2013 |
01 |
| 002 |
|
SPRING, RR DISC BRK PAD (PART OF 1) |
|
2011-2013 |
|
| 003 |
20894773 |
BRACKET, RR BRK CLPR |
DM (JE5) |
2011-2013 |
02 |
| 004 |
88935808 |
SEAL KIT, RR BRK CLPR GDE PIN (4.670) |
DM (JE5, J55) |
2011-2013 |
02 |
| 005 |
15855612 |
PIN, RR BRK CLPR GDE |
DM (JE5, J55) |
2011-2013 |
02 |
| 006 |
25843039 |
CALIPER, RR BRK (INCLS 8-12) (ACDelco #25843039) |
DM (JE5) |
2011-2013 |
01 |
| 006 |
25843040 |
CALIPER, RR BRK (INCLS 8-12) (ACDelco #25843040) |
DM (JE5) |
2011-2013 |
01 |
| 007 |
89027183 |
BOLT, RR BRK CLPR GDE PIN (M8X1.0) (14MM SOCKET) |
DM (JE5, J55) |
2011-2013 |
04 |
| 008 |
88935785 |
CAP, RR BRK BLEDR VLV (PART OF 6) |
DM (JE5, J55) |
2011-2013 |
02 |
| 009 |
88935776 |
VALVE, RR BRK BLEDR (PART OF 6) (M10X1.0) (ACDelco #88935776) |
DM (JE5, J55) |
2011-2013 |
02 |
| 010 |
|
SEAL, RR BRK CLPR PSTN (PART OF 6) (*KIT1) |
|
2011-2013 |
|
| 011 |
15926282 |
PISTON, RR BRK CLPR (PART OF 6) (ACDelco #15926282) |
DM (JE5) |
2011-2013 |
02 |
| 012 |
|
BOOT, RR BRK CLPR PSTN (PART OF 6) (*KIT1) |
|
2011-2013 |
|
| K01 |
25814676 |
SEAL KIT, RR BRK CLPR PSTN (INCLS 10, 12) (INCLS 1 PISTON BOOT 1 PISTON SEAL) |
DM (JE5) |
2011-2013 |
02 |
