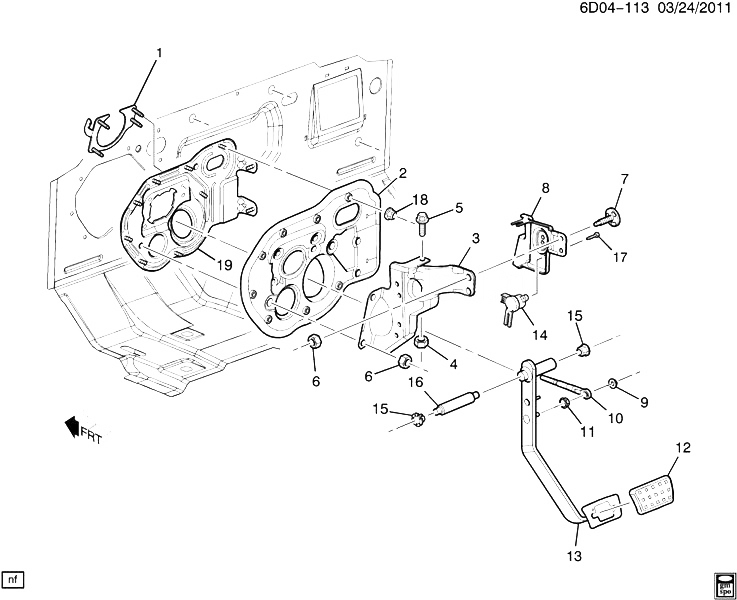

(6D04-113) 2011-2013 DM,DN35-47-69 ПЕДАЛЬ ТОРМОЗА CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25675835 BRACKET, BRK PED BRKT DM, DN 2011-2013 01
002 25913292 BARRIER, BRK PED BRKT SND DN (MYD, MX0) 2011-2013 01
002 25931380 BARRIER, BRK PED BRKT SND DN (MG9, MN6) 2011-2013 01
002 25913292 BARRIER, BRK PED BRKT SND DM (LFW, LFX, MYA, MX0, MX7) 2012-2013 01
003 BRACKET, BRK PED (PART OF 13) 2011-2013
004 NUT, BRK PED BRKT BR (PART OF 13) 2011-2013
005 11517518 BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (PART OF 13) (ACDelco #11517518) 2011-2013 01
006 11514519 NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) 2011-2013 06
007 STUD, BRK PED BRKT (PART OF 13) 2011-2013
008 BRACKET, BRK PED (PART OF 13) 2011-2013
009 15685170 NUT, HEX HD W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (PART OF 13) (8.917) 2011-2013 01
010 25916806 ROD, BRK PED PUSH (PART OF 13) DM 2011-2013 01
010 25916806 ROD, BRK PED PUSH (PART OF 13) DN 2011-2013 01
011 10434956 BUSHING, BRK PED PUSH ROD (PART OF 13) D 2011-2013 01
012 15854394 PAD, BRK PED (PART OF 13) DM (MN6) 2011-2013 01
012 15854394 PAD, BRK PED (PART OF 13) DN (MN6, W2E) 2011-2013 01
012 15854395 PAD, BRK PED (PART OF 13) DN (JF5, MX0, MX7) 2011-2013 01
012 15854395 PAD, BRK PED (PART OF 13) DM (JF5, MX0, MX7) 2011-2013 01
012 25771615 COVER, BRK PED (PART OF 13) DN (MX0, MX7) (EXC JF5) 2011-2013 01
012 25771615 COVER, BRK PED (PART OF 13) DM (MX0, MX7) (EXC JF5) 2012-2013 01
012 25697444 COVER, BRK PED (PART OF 13) DN (MN6) 2012-2013 01
013 25913333 PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-17) DN (MN6, W2E) 2011-2013 01
013 25913335 PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-17) DN (AQ9, MN6) 2011-2013 01
013 22868145 PEDAL, BRK (INCLS 3-5, 7-12, 14-17) DM, DN (MX0, MX7) (EXC JF5) 2013-2013 01
013 22868147 PEDAL, BRK (INCLS 3-5, 7-12, 14-17) DM, DN (JF5, MX0, MX7) 2013-2013 01
014 25888497 SENSOR, BRK PED POSN (PART OF 13) (INCLS 17) (*KIT1) (ACDelco #25888497) DM (MN6) 2012-2013 01
014 25888497 SENSOR, BRK PED POSN (PART OF 13) (INCLS 17) (*KIT1) (ACDelco #25888497) DN (MN6) 2012-2013 01
014 25888497 SENSOR, BRK PED POSN (PART OF 13) (INCLS 17) (*KIT1) (4.625) (ACDelco #25888497) DN (MN6) 2012-2013 01
014 13583373 SENSOR, BRK PED POSN (PART OF 13) (INCLS 17) (*KIT1) (ACDelco #13583373) DM, DN (MX0, MX7) 2013-2013 01
014 13583373 SENSOR, BRK PED POSN (PART OF 13) (INCLS 17) (*KIT1) (4.625) (ACDelco #13583373) DM, DN (MX0, MX7) 2013-2013 01
015 14004821 BUSHING, BRK PED PIV (PART OF 13) (0.831) D 2011-2013 02
016 PIN, BRK PED PIV (PART OF 13) 2011-2013
017 11609999 SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (PART OF 13, 14) (*KIT1) 2011-2013 01
018 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) 2011-2013 08
019 REINFORCEMENT, STRG COL SUPT BRKT 2011-2013
K01 25814705 SENSOR KIT, BRK PED POSN (INCLS 14, 17) (ACDelco #25814705) DM, DN 2011-2013 01
