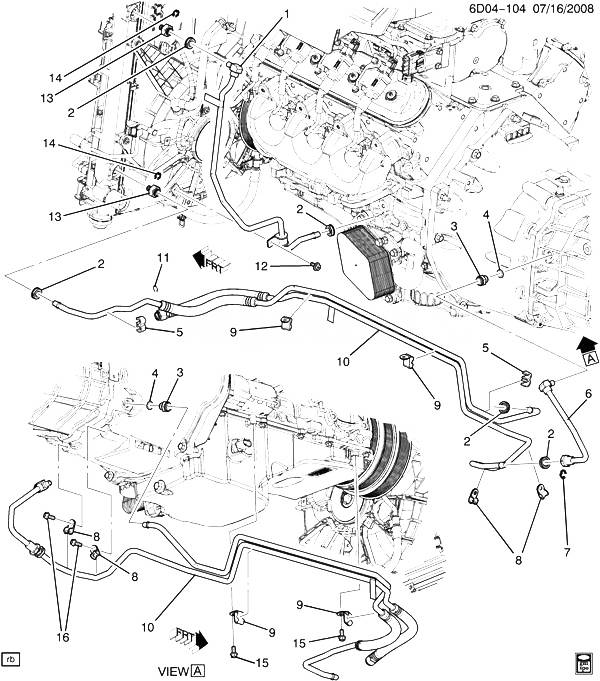

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25876668 |
PIPE, TRANS FLUID CLR OTLT (INCLS 2) (ACDelco #25876668) |
DN (MG9) |
2011-2013 |
01 |
| 002 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 10) (PLASTIC RETAINER) (ACDelco #15052228) |
DN |
2011-2013 |
AR |
| 003 |
19180517 |
FITTING, TRANS FLUID PMP OTLT PIPE (INCLS 4) (ACDelco #19180517) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 004 |
|
SEAL, TRANS FLUID PMP OTLT PIPE FTG (O RING) (PART OF 3) |
|
2011-2013 |
|
| 005 |
10405874 |
CLIP, TRANS FLUID CLR HOSE (PART OF 10) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) |
DM, DN |
2011-2013 |
01 |
| 006 |
|
HOSE, TRANS FLUID CLR (PART OF 10) |
|
2011-2013 |
|
| 007 |
|
RETAINER, TRANS FLUID CLR (PART OF 10) |
|
2011-2013 |
|
| 008 |
03535114 |
CLIP, TRANS FLUID CLR PIPE (PART OF 10) (SNGL TUBE CL, 9.5 DIA, 8.7 X 11.2 SLOT, 16.3 CTR, 15.7 WIDE) |
DN |
2011-2013 |
02 |
| 009 |
11570856 |
CLIP, TRANS FLUID CLR HOSE (PART OF 10) (HOLDS TWO 4.8 DIA TUBES) |
DN |
2011-2013 |
02 |
| 010 |
25812247 |
HOSE, TRANS FLUID CLR (INCLS 2, 5-9, 11) (ACDelco #25812247) |
DN (MG9) |
2011-2013 |
01 |
| 011 |
|
RETAINER, TRANS FLUID CLR (PART OF 10) |
|
2011-2013 |
|
| 012 |
11570323 |
BOLT, TRANS FLUID CLR OTLT PIPE (M6X1X18, 13 THD) (1.277) |
DN |
2011-2013 |
02 |
| 013 |
|
FITTING, TRANS FLUID CLR PIPE |
|
2011-2013 |
|
| 014 |
24205103 |
RETAINER, TRANS FLUID CLR (EXPANDING SPRING WIRE) (ACDelco #24205103) |
DN |
2011-2013 |
02 |
| 015 |
11518061 |
BOLT, HFH, M6X1X13, 10 THD, 14.2 OD, GMW25M (8.8) STL, GMW14C-PT (TRANS FLUID CLR PIPE CLIP) |
|
2011-2013 |
02 |
| 016 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE CLIP) (ACDelco #11570082) |
|
2011-2013 |
02 |
