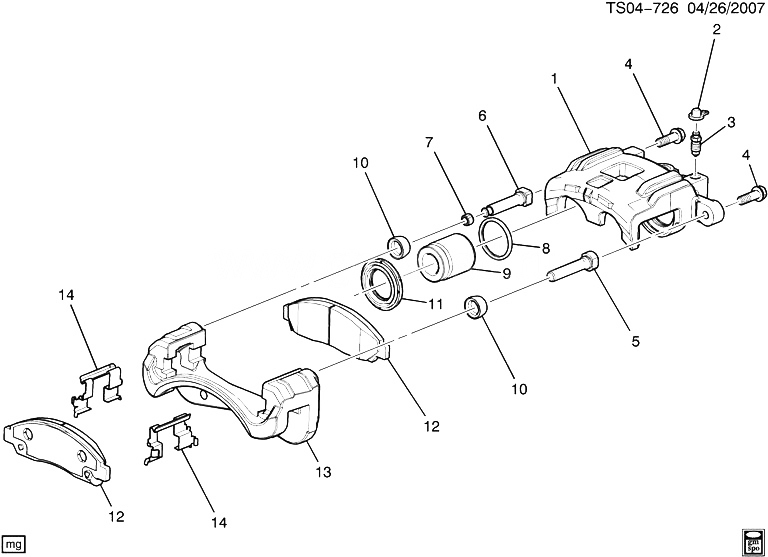

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15851479 |
CALIPER, FRT BRK (INCLS 2, 3, 8, 9, 11) (ACDelco #172-2449) |
DM (J55, MN6, MX0) |
2011-2013 |
01 |
| 001 |
15851479 |
CALIPER, FRT BRK (INCLS 2, 3, 8, 9, 11) (ACDelco #172-2449) |
DM (J55, MX7) |
2011-2013 |
01 |
| 001 |
15851480 |
CALIPER, FRT BRK (INCLS 2, 3, 8, 9, 11) (ACDelco #172-2450) |
DM (J55, MN6, MX0) |
2011-2013 |
01 |
| 001 |
15851480 |
CALIPER, FRT BRK (INCLS 2, 3, 8, 9, 11) (ACDelco #172-2450) |
DM (J55, MX7) |
2011-2013 |
01 |
| 002 |
|
CAP, FRT BRK CLPR BLEDR VLV (PART OF 1) |
|
2011-2013 |
|
| 003 |
15851382 |
VALVE, FRT BRK CLPR BLEDR (PART OF 1) (ACDelco #15851382) |
DM (J55) |
2011-2013 |
02 |
| 004 |
25809684 |
BOLT, FRT BRK CLPR HSG (GUIDE PIN) |
DM (J55) |
2011-2013 |
04 |
| 005 |
25809681 |
PIN, FRT BRK CLPR GDE (W/O BUSHING) |
DM (J55) |
2011-2013 |
02 |
| 006 |
25809679 |
PIN, FRT BRK CLPR GDE (INCLS 7) (W/PLASTIC SLEEVE 2.0MM FROM TIP) (W/BUSHING) |
DM (J55) |
2011-2013 |
02 |
| 007 |
|
BUSHING, FRT BRK CLPR GDE PIN (PART OF 6, 10) |
|
2011-2013 |
|
| 008 |
|
SEAL, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) |
|
2011-2013 |
|
| 009 |
15926289 |
PISTON, FRT BRK CLPR (PART OF 1) (ACDelco #15926289) |
DM (J55) |
2011-2013 |
04 |
| 010 |
25814703 |
SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 7) (ACDelco #25814703) |
DM (J55, MN6, MX0, MX7) |
2011-2013 |
02 |
| 011 |
|
BOOT, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) |
|
2011-2013 |
|
| 012 |
25958115 |
PAD KIT, FRT DISC BRK (INCLS 14) (ACDelco #171-1015) |
DM (J55) |
2011-2013 |
01 |
| 013 |
15851384 |
BRACKET, FRT BRK CLPR |
DM (J55, MN6, MX0) |
2011-2013 |
01 |
| 013 |
15851384 |
BRACKET, FRT BRK CLPR |
DM (J55, MX7) |
2011-2013 |
01 |
| 013 |
15851476 |
BRACKET, FRT BRK CLPR |
DM (J55, MX7) |
2011-2013 |
01 |
| 014 |
|
SPRING, FRT DISC BRK PAD RET (PART OF 12) |
|
2011-2013 |
|
| K01 |
25814704 |
SEAL KIT, FRT BRK CLPR PSTN (INCLS 8, 11) (INCLS 2 PISTON BOOTS 2 PISTON SEALS) (ACDelco #25814704) |
DM (J55, MN6, MX0, MX7) |
2011-2013 |
02 |
