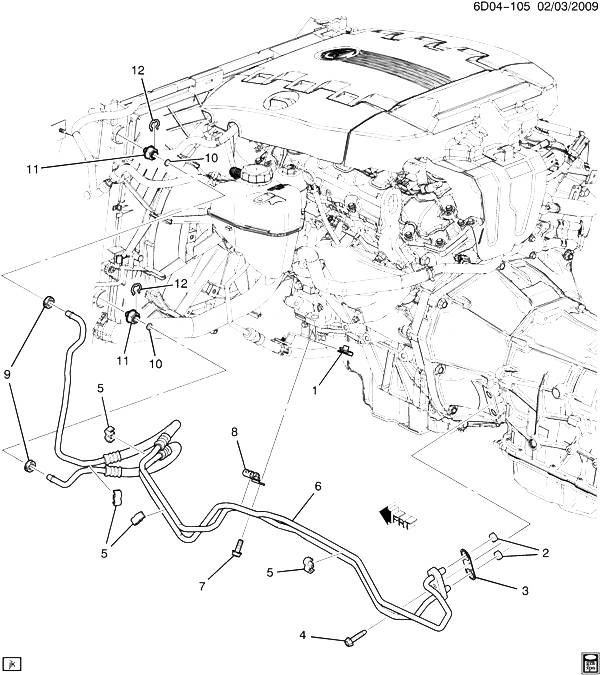

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516149 |
NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (TRANS FLUID CLR HOSE CLIP BRKT) |
|
2011-2013 |
01 |
| 002 |
24237658 |
SEAL, TRANS FLUID CLR PIPE FTG (AT TRANS) (SEALS ONE PIPE) (ACDelco #24237658) |
D |
2011-2013 |
02 |
| 003 |
15251488 |
SEAL, TRANS FLUID CLR HOSE (PART OF 6) (SEALS TWO PIPES) (ACDelco #15251488) |
DM |
2011-2013 |
01 |
| 004 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) |
|
2011-2013 |
01 |
| 005 |
10405874 |
CLIP, TRANS FLUID CLR HOSE (PART OF 6) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) |
DM, DN |
2011-2013 |
01 |
| 006 |
20977541 |
HOSE, TRANS FLUID CLR (INCLS 3, 5, 8, 9) (ACDelco #20977541) |
DM (MYA, MYB, JJB, MX0) (EXC V03) |
2011-2013 |
01 |
| 007 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) |
|
2011-2013 |
01 |
| 008 |
|
BRACKET, TRANS OIL CLR INL OTLT PIPE (PART OF 6) |
|
2012-2013 |
|
| 009 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 6) (PLASTIC RETAINER) (ACDelco #15052228) |
DM |
2011-2013 |
02 |
| 010 |
|
SEAL, TRANS FLUID CLR INL PIPE FTG (O RING) |
|
2012-2013 |
|
| 011 |
|
FITTING, TRANS FLUID CLR PIPE |
|
2012-2013 |
|
| 012 |
|
RETAINER, TRANS FLUID CLR PIPE FTG |
|
2012-2013 |
|
