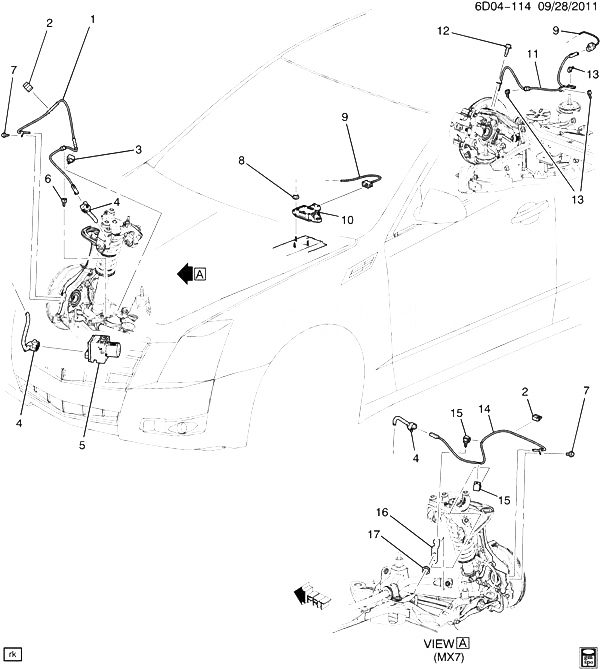

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 012 |
11516521 |
BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (RR WHL SPD SEN) |
|
2012-2013 |
02 |
| 013 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 11) (6.8MM HOLE) (9.242) |
DM |
2012-2013 |
03 |
| 013 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 11) (6.8MM HOLE) (9.242) |
DN |
2012-2013 |
03 |
| 014 |
22897414 |
SENSOR, FRT WHL SPD (INCLS 2, 15, 16) (ACDelco #22897414) |
DM (MX7) |
2012-2013 |
02 |
| 015 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 14) (6.8MM HOLE) (9.242) |
DM |
2012-2013 |
03 |
| 015 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 14) (6.8MM HOLE) (9.242) |
DN |
2012-2013 |
03 |
| 016 |
25820819 |
BRACKET, FRT WHL SPD SEN WIRE (PART OF 14) |
DM (MX7) |
2012-2013 |
01 |
| 017 |
11570352 |
NUT, HEX JAM M12X1.75X6, GM510 (5) STL, GMW14100. (WHL SPD SEN BRKT) |
|
2012-2013 |
02 |
| 001 |
22897413 |
SENSOR, FRT WHL SPD (INCLS 2, 3, 6) (ACDelco #22897413) |
DM (MN6, MX0) |
2012-2013 |
02 |
| 001 |
22897413 |
SENSOR, FRT WHL SPD (INCLS 2, 3, 6) (ACDelco #22897413) |
DN (MN6, MX0) |
2012-2013 |
02 |
| 002 |
15158259 |
CLIP, WHL SPD SEN WIRE (PART OF 1, 14) (12.0MM HOLE) (HOLDS (1)11MM GROMMET, PRONG FITS 18X6 SLOT IN 2.25 THK PNL) |
DM |
2012-2013 |
01 |
| 002 |
15158259 |
CLIP, WHL SPD SEN WIRE (PART OF 1, 14) (12.0MM HOLE) (HOLDS (1)11MM GROMMET, PRONG FITS 18X6 SLOT IN 2.25 THK PNL) |
DN |
2012-2013 |
01 |
| 003 |
15158261 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (HOLDS (1)10MM GROMMET, PRONG FITS 18X2.5 SLOT IN A 3 THK PNL) |
DM |
2012-2013 |
01 |
| 003 |
15158261 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (HOLDS (1)10MM GROMMET, PRONG FITS 18X2.5 SLOT IN A 3 THK PNL) |
DN |
2012-2013 |
01 |
| 004 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 005 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 006 |
15715954 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
DM |
2012-2013 |
03 |
| 006 |
15715954 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
DN |
2012-2013 |
03 |
| 007 |
11516521 |
BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT WHL SPD SEN) |
|
2012-2013 |
02 |
| 008 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (VEH YAW SEN LATL ACCLRM) |
|
2012-2013 |
02 |
| 009 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 010 |
13587220 |
SENSOR, VEH DYNAMIC |
DM, DN |
2013-2013 |
01 |
| 011 |
25996838 |
SENSOR, RR WHL SPD (INCLS 13) (ACDelco #25996838) |
DM |
2012-2013 |
02 |
| 011 |
25996838 |
SENSOR, RR WHL SPD (INCLS 13) (ACDelco #25996838) |
DN |
2012-2013 |
02 |
