| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

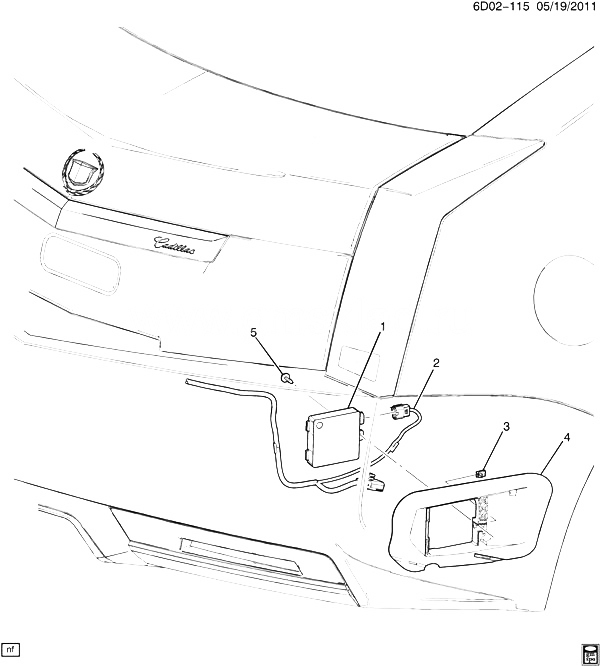

| 001 |
22817915 |
SENSOR, SIDE OBJECT |
DN47 (UFT) |
2012-2013 |
02 |
| 001 |
22817915 |
SENSOR, SIDE OBJECT |
DM47 (ATH, UFT) |
2012-2013 |
02 |
| 001 |
22817915 |
SENSOR, SIDE OBJECT |
DM47 (ATG, UFT) |
2012-2013 |
02 |
| 002 |
|
HARNESS, B/U ALARM WRG (SEE GROUP 07.000 BUMPER/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 003 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (FRT BPR FASCIA) (ACDelco #11513599) |
|
2012-2013 |
02 |
| 004 |
|
BRACKET, SIDE OBJECT SEN (SEE GROUP 07.000 BUMPER/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 005 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (SIDE OBJECT SEN) |
|
2012-2013 |
02 |
