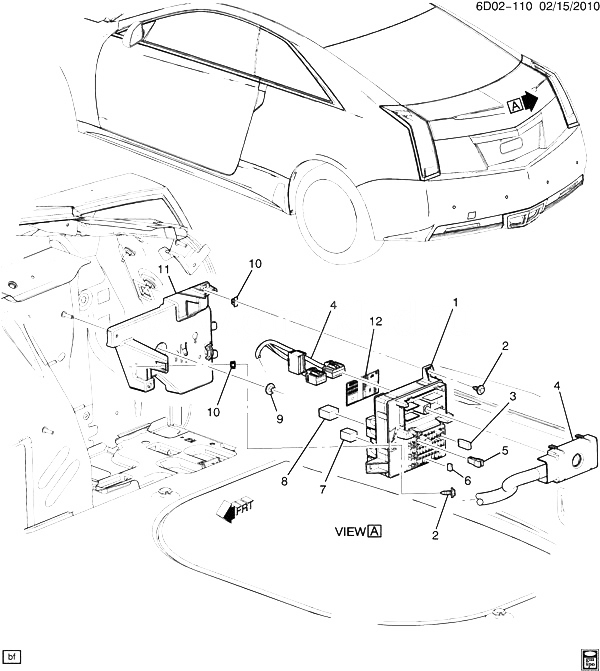

(6D02-110) 2011-2013 D47 БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ/ЗАДНИЕ ФОНАРИ CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22782850 BLOCK, BODY WRG HARN JUNC (INCLS 3, 5-8, 12) (13.100) D47 (EXC T90) 2012-2013 01
001 22782850 BLOCK, BODY WRG HARN JUNC (INCLS 3, 5-8, 12) D47 (EXC T90) 2012-2013 01
001 22782851 BLOCK, BODY WRG HARN JUNC (INCLS 3, 5-8, 12) (13.100) DM47 (T90) 2012-2013 01
001 22782851 BLOCK, BODY WRG HARN JUNC (INCLS 3, 5-8, 12) (13.100) DN47 (T90) 2012-2013 01
002 11509374 BOLT, SCR HEX W/FL WA, SELF TAP, 4.2X1.41X16, 12.5 O.D. (RR BODY FUSE BLK) 2011-2013 02
003 19167272 BREAKER, CIRC (PART OF 1) (20 AMP MANUAL RESET) D 2011-2013 01
003 19116527 BREAKER, CIRC (PART OF 1) (25 AMP MANUAL RESET) D47 2011-2013 04
003 19116821 BREAKER, CIRC (PART OF 1) (15AMP MOD RESET) D47 2012-2013 02
004 HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) 2011-2013
005 19116060 PULLER, FUSE (PART OF 1) D 2011-2013 01
006 19116041 FUSE, 2AMP, LOW PROFILE MINI, GRAY (PART OF 1) 2011-2013 02
006 19116042 FUSE, 10AMP, LOW PROFILE MINI, RED (PART OF 1) 2011-2013 12
006 19116043 FUSE, 15AMP, LOW PROFILE MINI, BLUE (PART OF 1) 2011-2013 09
006 19116048 FUSE, 20AMP, LOW PROFILE MINI, YELLOW (PART OF 1) 2011-2013 03
006 19116050 FUSE, 30AMP, LOW PROFILE MINI, GREEN (PART OF 1) 2011-2013 03
006 19153648 FUSE, 7.5AMP, LOW PROFILE MINI, BROWN (PART OF 1) 2011-2013 02
007 19116059 RELAY, SI MKR PARK BRK LP (PART OF 1) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) D47 2011-2013 01
007 19116059 RELAY, S/LP SW (PART OF 1) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) D47 2011-2013 01
007 19116059 RELAY, RR FOG LP (PART OF 1) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) D47 2012-2013 01
007 19116057 RELAY, RR FOG LP (PART OF 1) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) D 2011-2013 01
008 19116058 RELAY, PARK/NEU POSN SW (PART OF 1) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) D47 2011-2013 01
008 19116058 RELAY, F/TNK FIL DR LK REL (PART OF 1) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) DM, DN47 2011-2013 01
008 19116058 RELAY, DR LK (PART OF 1) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) D47 2011-2013 02
008 19116059 RELAY, PARK/NEU POSN SW (PART OF 1) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) D 2011-2013 01
009 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN J/BLK BRKT) 2011-2013 01
010 NUT, RR BODY FUSE BLK BRKT (PART OF 11) 2011-2013
011 20757099 BRACKET, BODY WRG HARN J/BLK (INCLS 10) D47 2011-2013 01
012 22805475 LABEL, FUSE BLK (PART OF 1) DM, DN 2012-2013 01
012 22805475 LABEL, FUSE BLK (PART OF 1) (8.808) DM, DN 2012-2013 01
