| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20860986 |

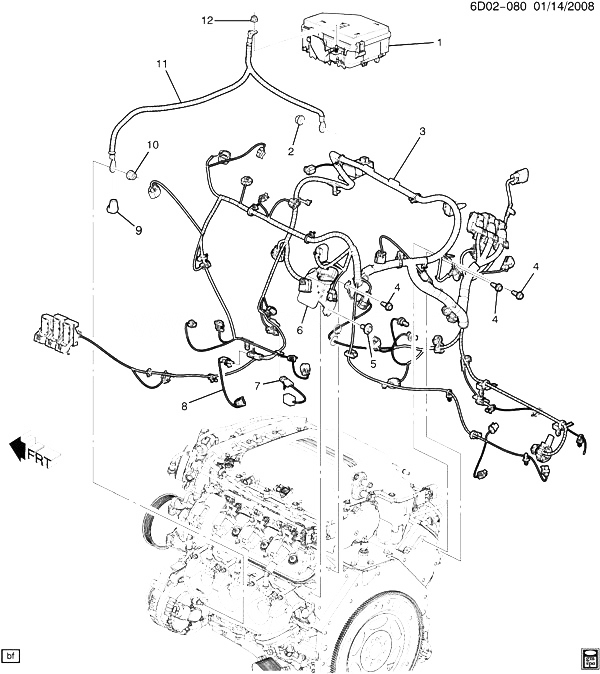

BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 RELAYS/ENGINE COMPARTMENT FOR DETAILED ILLUSTRATED VIEW) |
DN |
2011-2013 |
01 |
| 002 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
D35-47-69 |
2012-2013 |
01 |
| 003 |
22968176 |
HARNESS, ENG WRG (INCLS 6, 9, 10) |
DN (LSA, MG9) |
2013-2013 |
01 |
| 003 |
22968177 |
HARNESS, ENG WRG (INCLS 6, 9, 10) |
DN (LSA, MYD) |
2013-2013 |
01 |
| 004 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ECM ENG WRG HARN GND) |
|
2011-2013 |
03 |
| 005 |
11518341 |
BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ECM ENG WRG HARN GND) |
|
2011-2013 |
01 |
| 009 |
|
BOOT, WRG HARN TERM (PART OF 3) |
|
2011-2013 |
|
| 010 |
11609789 |
NUT, HEX, M8X1.25, 6.6 THK, 10, GMW3200. (BAT WIRE) |
|
2011-2013 |
01 |
| 012 |
11609412 |
NUT, HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200 (BAT POS CBL) |
|
2011-2013 |
01 |
