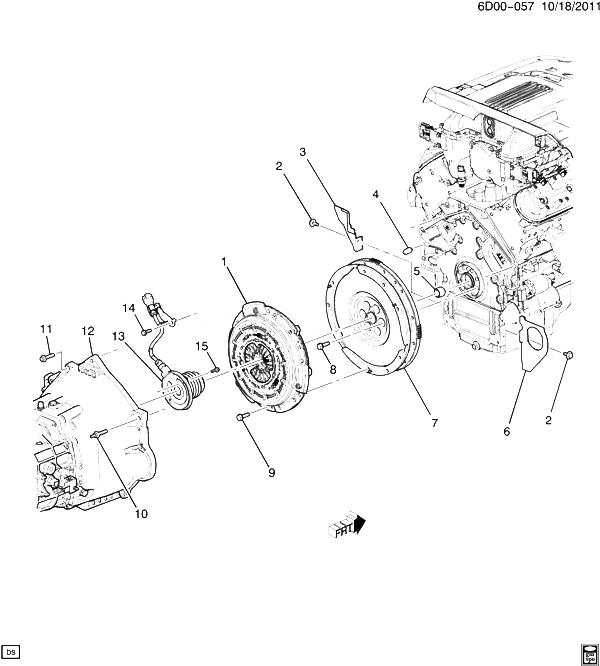

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24240679 |
PLATE, CLU PRESS DRVN (W/CVR) |
DN (MG9) |
2011-2013 |
01 |
| 002 |
12560226 |
BOLT, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
2011-2013 |
02 |
| 003 |
24261714 |
COVER, TRANS (ACDelco #24261714) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 004 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2011-2013 |
02 |
| 005 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 006 |
24261712 |
COVER, TRANS (ACDelco #24261712) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 007 |
24240678 |
FLYWHEEL, ENG (INCLS 8) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 008 |
12563485 |
BOLT, FLYWHL (PART OF 7) (M11X1.5X29) |
DN (LSA, MG9) |
2011-2013 |
08 |
| 009 |
12561465 |
BOLT, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
DN (LSA, MG9) |
2011-2013 |
06 |
| 010 |
12553527 |
BOLT, TRANS (M10X40) |
DN (MG9) |
2011-2013 |
03 |
| 011 |
11515768 |
BOLT, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS) |
|
2011-2013 |
05 |
| 012 |
24258817 |
TRANSMISSION, MAN (CODE AL1, A3S) (INCLS 13-15) (SEE GROUP 04.000 TRANSMISSION ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
DN (MG9) |
2011-2013 |
01 |
| 013 |
24238684 |
CYLINDER, CLU ACTR (PART OF 12) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 014 |
|
BOLT, CLU ACTR (PART OF 12) |
|
2011-2013 |
|
| 015 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 12) |
|
2011-2013 |
02 |
