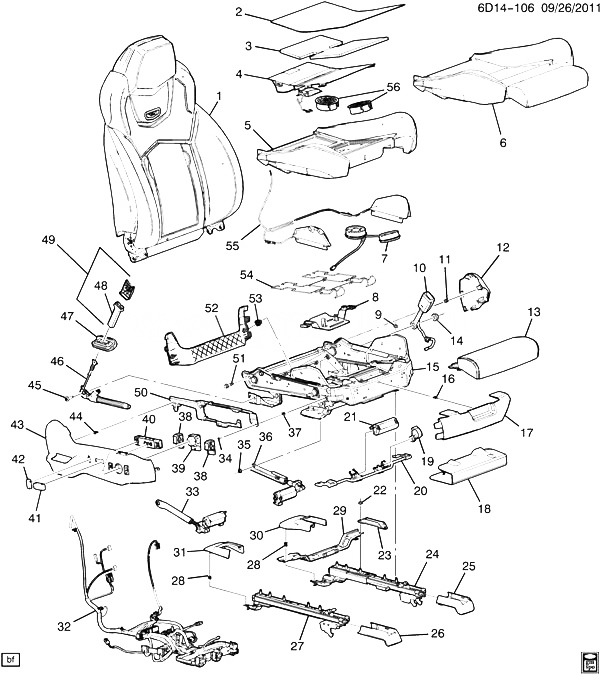

(6D14-106) 2012-2013 DM47 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (VENTED/HEATED KB6, RECARO W2E) CADILLAC - CTS COUPE 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, P/SEAT BK (W/HTR) (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) 2011-2013
002 HEATER, P/SEAT CUSH (PART OF 6) 2011-2013
002 HEATER, P/SEAT CUSH (PART OF 6) 2012-2013
003 MAT, F/SEAT VENT FAN (PART OF 6) 2011-2013
003 MAT, F/SEAT VENT FAN (PART OF 6) 2012-2013
004 SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 6) 2011-2013
004 SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 6) 2012-2013
005 PAD, P/SEAT CUSH (PART OF 6) 2011-2013
005 PAD, P/SEAT CUSH (PART OF 6) 2012-2013
006 20903437 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (TITANIUM) DN47 (AH8, AL2, ECH, KB6, W2E, 01C) (EXC KA1) 2011-2013 01
006 22779715 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (TITANIUM) DM47 (AH8, AL2, ECH, KB6, WBL, W2E, 01C) (EXC KA1) 2012-2013 01
006 22788004 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (EBONY) DN35-47-69 (AH8, AL2, ECH, KB6, W2E, 01G) (EXC KA1) 2012-2013 01
006 22788004 COVER, P/SEAT CUSH (INCLS 2-5, 13, 56) (EBONY) DM35-47 (AH8, AL2, ECH, KB6, WBL, W2E, 01G) (EXC KA1) 2012-2013 01
007 20793341 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL DN (KB6, W2E) (EXC KA1) 2011-2012 01
008 20859963 BRACKET, P/SEAT RR (PART OF 15) (SUPPRESSION MODULE) DN (W2E) 2011-2013 01
008 20859963 BRACKET, P/SEAT RR (PART OF 15) (SUPPRESSION MODULE) DM35-47-69 (W2E) 2012-2013 01
009 NUT, P/SEAT (PART OF 15) 2011-2013
009 NUT, P/SEAT (PART OF 15) 2012-2013
010 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (EBONY) DM, DN (01G) 2012-2013 01
010 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 14) (TITANIUM) DM, DN (01C) 2012-2013 01
011 CLIP, P/SEAT (PART OF 12) 2011-2013
011 CLIP, P/SEAT (PART OF 12) 2012-2013
012 20875405 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DN (01G) 2011-2013 01
012 20875405 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DM (01G) 2012-2013 01
012 20875406 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DN (01C) 2011-2013 01
012 20875406 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DM (01C) 2012-2013 01
012 20875408 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DN (01G) 2011-2013 01
012 20875408 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DM (01G) 2012-2013 01
012 20875409 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DN (01C) 2011-2013 01
012 20875409 COVER, P/SEAT RECL FIN (INCLS 11) (TITANIUM) DM (01C) 2012-2013 01
012 20875405 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DN47 (02W) 2011-2013 01
012 20875408 COVER, P/SEAT RECL FIN (INCLS 11) (EBONY) DN47 (02W) 2011-2013 01
013 PAD, F/SEAT CUSH FRT EXTN (PART OF 6) 2011-2013
013 PAD, F/SEAT CUSH FRT EXTN (PART OF 6) 2012-2013
014 NUT, P/SEAT BELT (BKL SI) (PART OF 10) 2011-2013
014 NUT, P/SEAT BELT (BKL SI) (PART OF 10) 2012-2013
015 20929302 FRAME, P/SEAT CUSH (INCLS 8, 9, 19-24, 27, 29, 33, 35-37, 54) (FOR RECARO SEAT ONLY) DN47 (AH8, AL2, ECH, W2E) 2011-2013 01
015 20993915 FRAME, P/SEAT CUSH (INCLS 8, 9, 19-24, 27, 29, 33, 35-37, 54) (SERVICE BY 20929302 FOR RECARO SEAT) DM47 (AH8, AL2, ECH, KB6, WBL, W2E) (EXC KA1) 2012-2013 01
016 CLIP, P/SEAT (PART OF 17) 2011-2013
016 CLIP, P/SEAT (PART OF 17) 2012-2013
017 20859965 PANEL, P/SEAT CUSH FIN (INCLS 16) (EBONY) (FRONT NOSE COVER) DN47 (AH8, AL2, ECH, KB6, W2E, 02W) (EXC KA1) 2011-2013 01
017 20859965 PANEL, P/SEAT CUSH FIN (INCLS 16) (EBONY) (FRONT NOSE COVER) DN47 (AH8, AL2, ECH, KB6, W2E, 01G) (EXC KA1) 2012-2013 01
017 20859965 PANEL, P/SEAT CUSH FIN (INCLS 16) (EBONY) (FRONT NOSE COVER) DM47 (AH8, AL2, ECH, KB6, WBL, W2E, 01G) (EXC KA1) 2012-2013 01
017 20859966 PANEL, P/SEAT CUSH FIN (INCLS 16) (TITANIUM) (FRONT NOSE COVER) DM (AH8, W2E, 01C) 2012-2013 01
018 20777456 COVER, P/SEAT ADJR FIN (EBONY) (CARPET) DM, DN 2011-2013 01
019 MODULE, F/SEAT ADJR MEMORY (PART OF 15) 2011-2013
019 MODULE, F/SEAT ADJR MEMORY (PART OF 15) 2012-2013
020 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 15) (INCLS 21) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DN 2011-2013 01
020 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 15) (INCLS 21) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DM 2012-2013 01
021 ACTUATOR, P/SEAT ADJR (PART OF 15, 20) 2011-2013
021 ACTUATOR, P/SEAT ADJR (PART OF 15, 20) 2012-2013
022 NUT, P/SEAT (PART OF 15) 2011-2013
022 NUT, P/SEAT (PART OF 15) 2012-2013
023 BRACE, P/SEAT (PART OF 15) 2011-2013
023 BRACE, P/SEAT (PART OF 15) 2012-2013
024 TRACK, P/SEAT INR ADJR (PART OF 15) 2011-2013
024 TRACK, P/SEAT INR ADJR (PART OF 15) 2012-2013
025 20812654 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DM47 (01C, 01G) 2012-2013 01
025 20812654 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DN47 (01C, 01G, 02W, W2E, KB6) (EXC KA1) 2011-2013 01
026 20812657 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DM47 (01C, 01G) 2012-2013 01
026 20812657 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DN47 (01C, 01G, 02W, KB6) (EXC KA1) 2011-2013 01
027 TRACK, P/SEAT OTR ADJR (PART OF 15) 2011-2013
027 TRACK, P/SEAT OTR ADJR (PART OF 15) 2012-2013
028 CLIP, P/SEAT (PART OF 30, 31) 2011-2013
028 CLIP, P/SEAT (PART OF 30, 31) 2012-2013
029 BRACE, P/SEAT (PART OF 15) 2011-2013
029 BRACE, P/SEAT (PART OF 15) 2012-2013
030 15947299 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) DN47 (01G, 02W) 2011-2013 01
030 20812660 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) DM47 (01C, 01G) 2012-2013 01
030 20812660 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) DN47 (01C) 2011-2013 01
031 15947291 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 28) (EBONY) DN47 (01G, 02W) 2011-2013 01
031 20812663 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 28) (EBONY) DM, DN47 (W2E, 01C, 01G) 2011-2013 01
032 15894132 WIRE, P/SEAT CUSH PAD DN35-47-69 2011-2013 01
032 15894132 WIRE, P/SEAT CUSH PAD DM35-47-69 2012-2013 01
033 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 15) DN 2011-2013 01
033 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 15) DM47 2012-2013 01
034 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2011-2013 09
035 NUT, P/SEAT (PART OF 15) 2011-2013
035 NUT, P/SEAT (PART OF 15) 2012-2013
036 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 15) DN (AH8, AL2) 2011-2013 01
036 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 15) DM (AH8, AL2) 2012-2013 01
037 NUT, P/SEAT (PART OF 15) 2011-2013
037 NUT, P/SEAT (PART OF 15) 2012-2013
038 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DM (EBS, ECH, 01C) 2011-2013 01
038 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DN (01C) 2011-2013 01
038 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DM (01G) 2011-2013 01
038 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DN (01G) 2011-2013 01
038 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DN47 (02W) 2011-2013 01
039 25802502 SWITCH, P/SEAT LUMBAR CONT (EBONY) (16.682) DN (AL2, 01G) 2012-2013 01
039 25802505 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) (16.682) DN (ECH, W2E, 01C) (EXC KA1) 2011-2013 01
039 25802505 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) (16.682) DM (ECH, 01C) (EXC KA1) 2012-2013 01
040 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DM 2012-2013 01
040 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DN 2011-2013 01
041 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DM, DN (01C) 2011-2013 01
041 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN35-47-69 (01G) 2011-2013 01
041 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN47 (02W) 2011-2013 01
042 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DN47 (01G, 02W) 2011-2013 01
042 15222985 KNOB, P/SEAT RECL (TITANIUM) DM (01C) 2012-2013 01
042 15222985 KNOB, P/SEAT RECL (TITANIUM) DN (01C) 2011-2013 01
042 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DM47 (01G) 2012-2013 01
043 20793323 BEZEL, P/SEAT ADJR SW (INCLS 44) (EBONY) DM, DN47 (KB6, W2E, 01G, 02W) (EXC KA1) 2012-2013 01
043 20793324 BEZEL, P/SEAT ADJR SW (INCLS 44) (TITANIUM) DM47 (AH8, ECH, KB6, W2E, 01C) (EXC KA1) 2012-2013 01
043 20793324 BEZEL, P/SEAT ADJR SW (INCLS 44) (TITANIUM) DM, DN47 (AH8, ECH, KB6, W2E, 01C) (EXC KA1) 2012-2013 01
044 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 43) 2011-2013 04
045 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 46) 2011-2013
045 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 46) 2012-2013
046 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 45) DM, DN47 2011-2013 01
047 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN (01G) 2011-2012 01
047 25982264 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) DN (W2E, 01C) 2011-2012 01
047 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DM (01G) 2012-2012 01
047 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN47 (02W) 2011-2012 01
048 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 49) 2011-2013
048 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 49) 2012-2013
049 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (EBONY) (LOWER) DM (01G) 2011-2013 02
049 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (EBONY) (LOWER) DN (01G, 02W) 2011-2013 02
049 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 48) (TITANIUM) (LOWER) DM, DN (01C) 2011-2013 02
050 20793340 BRACKET, F/SEAT ADJR FIN CVR (11.419) DM, DN47 (AH8) (EXC KA1) 2012-2012 01
051 25828643 BOLT, F/SEAT DN 2011-2013 08
051 25828643 BOLT, F/SEAT DM 2012-2013 08
052 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (EBONY) (11.573) DM, DN (01G) 2011-2013 01
052 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
052 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 53) (EBONY) (11.573) DN47 (02W) 2011-2013 01
053 CLIP, P/SEAT INR ADJR RR FIN (PART OF 52) 2011-2013
053 CLIP, P/SEAT INR ADJR RR FIN (PART OF 52) 2012-2013
054 WIRE, P/SEAT CUSH PAD (PART OF 15) 2011-2013
054 WIRE, P/SEAT CUSH PAD (PART OF 15) 2012-2013
055 20793003 BLADDER, F/SEAT CUSH SI BOLS (CUSH FRAME) DM, DN47 (W2E) 2012-2013 04
056 FAN, F/SEAT CUSH VENT (PART OF 6) 2011-2013
056 FAN, F/SEAT CUSH VENT (PART OF 6) 2012-2013
