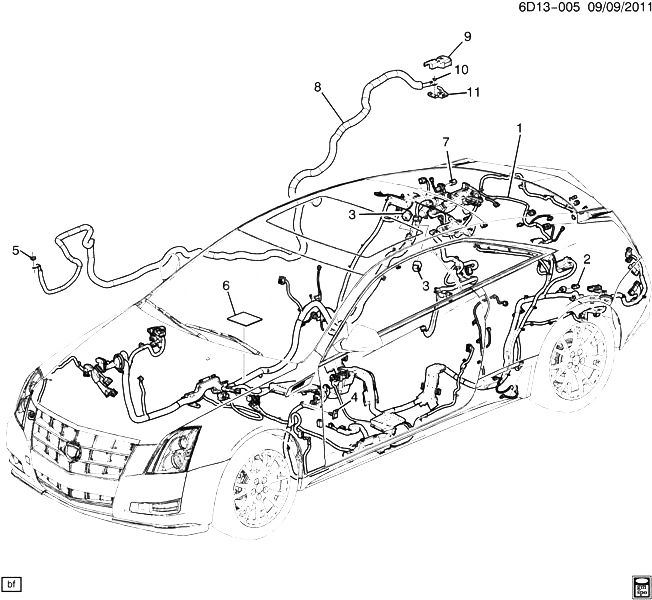

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22845158 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, U2Y) (EXC N38, T89, UE1, UTT) |
2012-2012 |
01 |
| 001 |
22845159 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878647) |
DM47 (ATH, N38, U2Y) (EXC T89, UE1, UTT) (1ST DES) |
2012-2012 |
01 |
| 001 |
22845160 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DN47 (U2Y) (EXC T89, UTT) |
2012-2012 |
01 |
| 001 |
22845162 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, UE1, U2Y) (EXC N38, UTT) |
2012-2012 |
01 |
| 001 |
22845163 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, N38, T89, U2Y) (EXC UE1, UTT) |
2012-2012 |
01 |
| 001 |
22845164 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DN47 (U2X) |
2012-2012 |
01 |
| 001 |
22845165 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DN47 (UTT, U2Y) |
2012-2012 |
01 |
| 001 |
22845166 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878654) |
DN47 (UAV) (EXC KB6) (1ST DES) |
2012-2012 |
01 |
| 001 |
22845167 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DN47 (KB6, UAV) |
2012-2012 |
01 |
| 001 |
22845168 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878656) |
DM47 (N38, U2S) (EXC TR7) (1ST DES) |
2012-2012 |
01 |
| 001 |
22845169 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878657) |
DM47 (N38, UAV) (1ST DES) |
2012-2012 |
01 |
| 001 |
22845172 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (N38, U2X) |
2012-2012 |
01 |
| 001 |
22845174 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, N38, UTT, U2Y) |
2012-2012 |
01 |
| 001 |
22845176 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878664) |
DM47 (UAV) (EXC N38) (1ST DES) |
2012-2012 |
01 |
| 001 |
22845179 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, N38, UE1, U2Y) (EXC UTT) |
2012-2012 |
01 |
| 001 |
22845180 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878667) |
DM47 (U2T) (1ST DES) |
2012-2012 |
01 |
| 001 |
22878647 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845159) |
DM47 (ATH, N38, U2Y) (EXC T89, UE1, UTT) (2ND DES) |
2012-2012 |
01 |
| 001 |
22878654 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845166) |
DN47 (UAV) (EXC KB6) (2ND DES) |
2012-2012 |
01 |
| 001 |
22878657 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845169) |
DM47 (N38, UAV) (2ND DES) |
2012-2012 |
01 |
| 001 |
22878664 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845176) |
DM47 (UAV) (EXC N38) (2ND DES) |
2012-2012 |
01 |
| 001 |
22878667 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845180) |
DM47 (U2T) |
2012-2012 |
01 |
| 001 |
22845170 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT PRIOR TO 2/24/12) (FOR 2ND DES SEE 22878658) |
DM47 (U2S) (EXC N38, TR7) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22845178 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, T89, U2Y) (EXC N38, UE1, UTT) (EXPORT) |
2012-2012 |
01 |
| 001 |
22845182 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) |
DM47 (ATH, TR7, U2S) (EXC N38) (EXPORT) |
2012-2012 |
01 |
| 001 |
22878656 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845168) |
DM47 (N38, U2S) (EXC TR7) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22878658 |
HARNESS, BODY WRG (INCLS 2, 3, 7-11) (USE ON VEHS BUILT ON OR AFTER 2/24/12) (FOR 1ST DES SEE 22845170) |
DM47 (U2S) (EXC N38, TR7) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 002 |
88988999 |
RESISTOR, DATA LINK (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DN47 |
2011-2012 |
01 |
| 002 |
88988999 |
RESISTOR, DATA LINK (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DM47 |
2011-2012 |
01 |
| 002 |
88988999 |
RESISTOR, DATA LINK (LAN TERMINATOR) (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DM47 |
2012-2012 |
01 |
| 002 |
88988999 |
RESISTOR, DATA LINK (LAN TERMINATOR) (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DN47 |
2012-2012 |
01 |
| 003 |
12193601 |
RELAY, MULTIUSE (PART OF 1) (BLACK) (USED W/CONNECTOR 15306045 W/O BRKTS 5-WAY MALE) (9.277) (ACDelco #15-8719) |
DM, DN47 |
2011-2013 |
01 |
| 003 |
12193601 |
RELAY, MULTIUSE (PART OF 1) (BLACK) (USED W/CONNECTOR 15306045 W/O BRKTS 5-WAY MALE) (9.277) (ACDelco #15-8719) |
DM47 (N38, U2X) |
2012-2012 |
01 |
| 004 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (BODY WRG HARN CONN BRKT) |
|
2011-2013 |
02 |
| 005 |
11609412 |
NUT, HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200 (BAT POS CBL) |
|
2011-2013 |
01 |
| 006 |
11515174 |
TAPE, BODY WRG HARN LEAD (4 1/4 X 7 1/2) (TRIM AS REQD) (OUTBOARD) (12.941) |
D47 |
2011-2013 |
01 |
| 007 |
20794101 |
FUSE, BODY WRG HARN (PART OF 1) |
DM, DN47 |
2012-2012 |
01 |
| 008 |
20794102 |
CABLE, BAT POS (PART OF 1) (SEE GROUP 02.000 BATTERY MOUNTING CABLES FOR DETAILED ILLUSTRATED VIEW) (ACDelco #20794102) |
DM, DN47 |
2011-2012 |
01 |
| 009 |
20921679 |
COVER, BAT POS CBL TERM (PART OF 1) |
DM, DN47 |
2011-2012 |
01 |
| 010 |
|
NUT, BAT CBL TERM (PART OF 1) |
|
2011-2013 |
|
| 011 |
20794153 |
TERMINAL, BAT POS CBL (PART OF 1) |
D35-47-69 |
2011-2012 |
01 |
