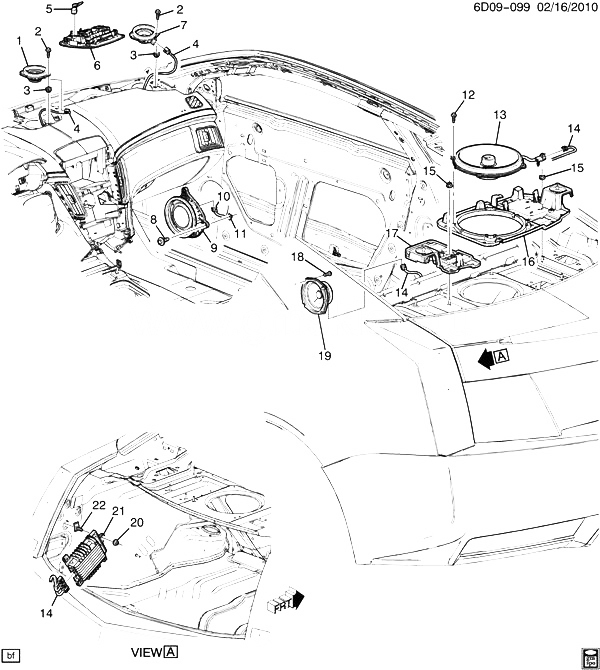

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15278540 |
SPEAKER, RDO FRT (ACDelco #15278540) |
D47-69 (UQA) (EXPORT) |
2011-2013 |
02 |
| 002 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT SPKR) |
|
2011-2013 |
06 |
| 003 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO FRT SPKR) (10.701) |
|
2011-2013 |
06 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 005 |
15246939 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 6) (RDO VOL COMP) |
DM, DN (EXC UTV) |
2011-2013 |
01 |
| 006 |
|
CONSOLE, RF (INCLS 5) (SEE GROUP 10.000 ROOF CONSOLE FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
|
2011-2013 |
|
| 007 |
15278540 |
SPEAKER, RDO FRT (ACDelco #15278540) |
D47-69 (UQA) (EXPORT) |
2011-2013 |
02 |
| 008 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT S/D SPKR) (9.665) |
|
2011-2013 |
06 |
| 009 |
15839233 |
SPEAKER, RDO FRT S/D (ACDelco #15839233) |
D47 (UQA) |
2011-2013 |
01 |
| 009 |
15839233 |
SPEAKER, RDO FRT S/D (ACDelco #15839233) |
DM47 (UQA) |
2011-2013 |
01 |
| 010 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 011 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
D47 |
2011-2013 |
06 |
| 012 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) |
|
2011-2013 |
08 |
| 013 |
25950304 |
SPEAKER, RDO RR (ACDelco #25950304) |
D47-69 (UQA) |
2011-2013 |
01 |
| 014 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 015 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/WDO PNL BR) |
|
2011-2013 |
10 |
| 016 |
25838823 |
CARRIER, M/FUNC ACSRY MDL |
D47 |
2011-2013 |
01 |
| 017 |
20914747 |
CARRIER, M/FUNC ACSRY MDL |
D47 |
2011-2013 |
01 |
| 018 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) |
|
2011-2013 |
04 |
| 019 |
25725733 |
SPEAKER, RDO RR S/D (ACDelco #25725733) |
DM, DN47 |
2011-2013 |
02 |
| 020 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO SPKR AMPF) |
|
2011-2013 |
04 |
| 021 |
20942617 |
AMPLIFIER, RDO SPKR (ACDelco #20942617) |
D47 (UQA) |
2011-2013 |
01 |
| 022 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RDO SPKR AMPF) |
|
2011-2013 |
02 |
