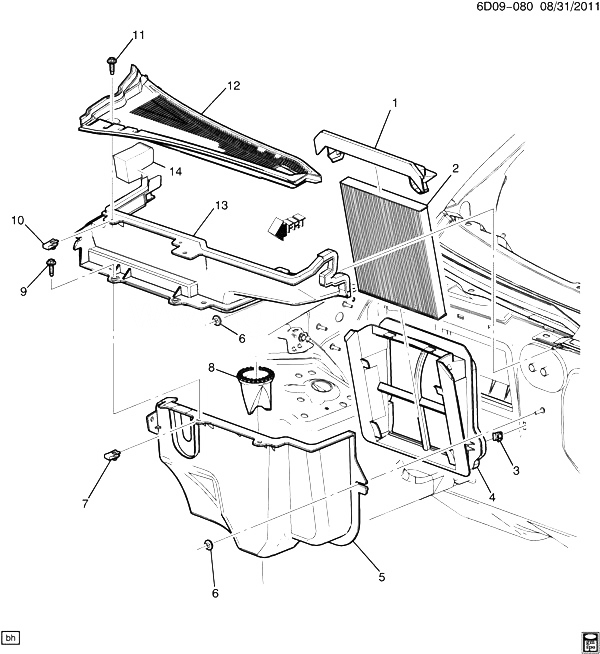

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19130428 |
COVER, PASS COMPT AIR FLTR ACC HOLE (WILL ALSO REQUIRE USE OF 19130429 ON CARS BUILT PRIOR TO 5/1/07) |
D |
2011-2013 |
01 |
| 002 |
19130403 |
FILTER KIT, PASS COMPT AIR (PARTICLE FILTER) (ACDelco #CF133) |
D35-47-69 |
2011-2013 |
01 |
| 003 |
|
RETAINER, PASS COMPT AIR FLTR (PART OF 4) |
|
2011-2013 |
|
| 004 |
19130561 |
HOUSING, PASS COMPT AIR FLTR (INCLS 3) |
D |
2011-2013 |
01 |
| 005 |
25900707 |
PANEL, AIR INL HSG LWR (INCLS 7) |
DM |
2011-2013 |
01 |
| 005 |
25900707 |
PANEL, AIR INL HSG LWR (INCLS 7) |
DN |
2011-2013 |
01 |
| 006 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) |
|
2011-2013 |
05 |
| 007 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 5) |
|
2011-2013 |
02 |
| 008 |
25746570 |
VALVE, PLNM DRN |
D47 |
2011-2013 |
01 |
| 009 |
25770699 |
BOLT, AIR INL (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) |
DM |
2011-2013 |
08 |
| 009 |
25770699 |
BOLT, AIR INL (M4X141X16) (SCREW-PAN HEAD C/R) (9.280) |
DN |
2011-2013 |
08 |
| 010 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 13) |
|
2011-2013 |
03 |
| 011 |
11609489 |
BOLT, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AIR INL GRL) |
|
2011-2013 |
04 |
| 012 |
25892885 |
PANEL, AIR INL GRL (SEE GROUP 10.000 WIPER SYSTEM/WINDSHIELD FOR DETAILED ILLUSTRATED VIEW) |
DM |
2011-2013 |
01 |
| 012 |
25892885 |
PANEL, AIR INL GRL (SEE GROUP 10.000 WIPER SYSTEM/WINDSHIELD FOR DETAILED ILLUSTRATED VIEW) |
DN |
2011-2013 |
01 |
| 013 |
22816664 |
PANEL, AIR INL HSG FRT UPR (INCLS 10) (USE T/W 20898508) |
DM |
2011-2013 |
01 |
| 013 |
22816664 |
PANEL, AIR INL HSG FRT UPR (INCLS 10) (USE T/W 20898508) |
DN |
2011-2013 |
01 |
| 014 |
20898508 |
SEAL, AIR INL HSG (ACDelco #20898508) |
DM |
2011-2013 |
01 |
| 014 |
20898508 |
SEAL, AIR INL HSG (ACDelco #20898508) |
DN |
2011-2013 |
01 |
