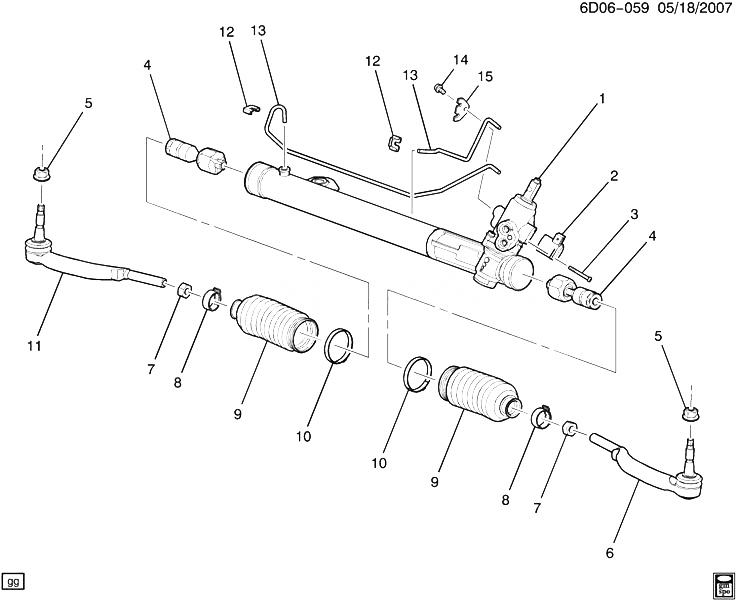

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22777702 |
GEAR, STRG (INCLS 2-5, 7-10, 12-15) (ACDelco #22777702) |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 002 |
25830755 |
SOLENOID, S/GR VLV (PART OF 1) |
DM, DN |
2011-2013 |
01 |
| 003 |
|
BOLT, S/GR VLV (PART OF 1) |
|
2011-2013 |
|
| 004 |
19177441 |
ROD KIT, STRG LNKG INR TIE (PART OF 1) (INCLS 5, 7, 8, 10) |
DM (MX7) |
2011-2013 |
02 |
| 005 |
11516078 |
NUT, STRG LNKG OTR TIE ROD (TO STRG ARM) (PART OF 1, 4, 6, 11) (M12X1.75X14THK, 25 OD) (8.917) |
D |
2011-2012 |
02 |
| 006 |
19177444 |
ROD KIT, STRG LNKG OTR TIE (INCLS 5) |
DM (MX7) |
2011-2013 |
02 |
| 007 |
11570374 |
NUT, STRG LNKG INR TIE ROD (PART OF 1, 4) (M14X1.5, 11 THK) |
D |
2011-2013 |
02 |
| 008 |
11516219 |
CLAMP, SPRINGBAND, HOSE DIA 17MM, WIDTH 15MM, 6298M (PART OF 1, 4, 9) |
|
2011-2013 |
02 |
| 009 |
19177439 |
BOOT KIT, S/GR (PART OF 1) (INCLS 8, 10) |
DM (LFX, LFW, MX7) |
2012-2012 |
01 |
| 010 |
12338017 |
CLAMP, WORM GEAR, 28.6-76.2, STAINLESS STEEL (PART OF 1, 4, 9) (ACDelco #12338017) |
|
2011-2013 |
02 |
| 011 |
19177445 |
ROD KIT, STRG LNKG OTR TIE (INCLS 5) |
DM (MX7) |
2011-2013 |
02 |
| 012 |
11571012 |
CLIP, S/GR PIPE (CLIP, PIPE S/GR (PART OF 1) (14X20X24) (CLIP - U, HARDENED STEEL, ZP) (*KIT1) |
D |
2011-2013 |
02 |
| 013 |
|
PIPE, S/GR (PART OF 1) (*KIT1) |
|
2011-2013 |
|
| 014 |
11571010 |
BOLT, P/S GR PIPE BRKT (BOLT, PIPE S/GR (PART OF 1) (M6X14, OD 13, TORX 35) |
D |
2011-2013 |
01 |
| 015 |
|
BRACKET, PIPE S/GR (PART OF 1) |
|
2011-2013 |
|
| K01 |
19177058 |
PIPE KIT, S/GR (INCLS 12, 13) |
DM (MX7) |
2011-2013 |
02 |
