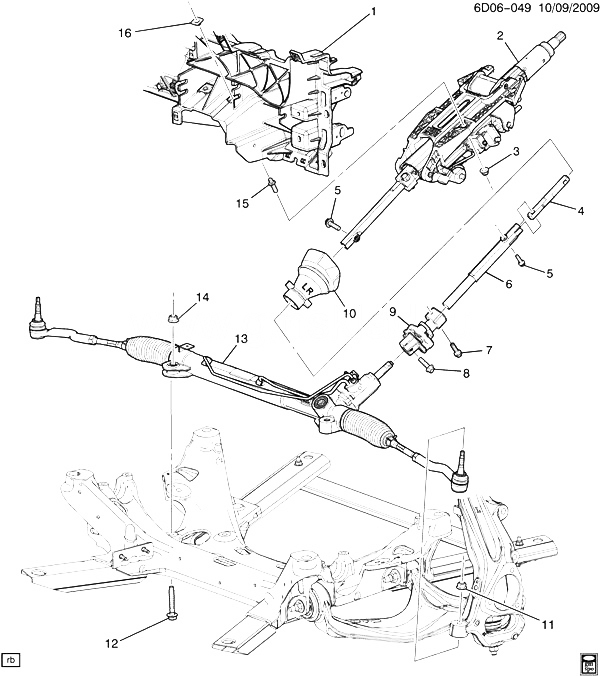

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22762905 |
CARRIER, I/P (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (INCLS 15, 16) |
DM, DN |
2012-2013 |
01 |
| 002 |
|
COLUMN, STRG (W/ INT STRG SHFT) (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) (INCLS 10) |
|
2011-2013 |
|
| 003 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (STRG COL) (ACDelco #11517996) |
|
2011-2013 |
02 |
| 004 |
25924052 |
SHAFT, STRG |
DM (MN6, MX0) |
2011-2012 |
01 |
| 004 |
25924052 |
SHAFT, STRG |
DN |
2011-2013 |
01 |
| 005 |
11610011 |
BOLT, INTER STRG SHF (M8X1.25X31, 17THD) |
D |
2011-2013 |
02 |
| 006 |
20908166 |
SHAFT, LWR INTER STRG (INCLS 7, 9) |
DM (MN6, MX0) |
2011-2012 |
01 |
| 006 |
20908166 |
SHAFT, LWR INTER STRG (INCLS 7, 9) |
DN |
2011-2013 |
01 |
| 007 |
11571223 |
BOLT, INTER STRG SHF (PART OF 6) (M8X1.25X36, 27THD) |
DM |
2012-2013 |
01 |
| 008 |
11518143 |
BOLT, INTER STRG SHF LWR (M10X1.5X38, 14.5THD) (8.900) |
D |
2011-2013 |
01 |
| 009 |
|
SHAFT, STRG LNKG PIV (PART OF 6) |
|
2011-2013 |
|
| 010 |
|
SEAL, INTER STRG SHF LWR (PART OF 2) |
|
2011-2013 |
|
| 011 |
11516078 |
NUT, STRG LNKG OTR TIE ROD (TO STRG ARM) (M12X1.75X14THK, 25 OD) (8.917) |
D |
2011-2012 |
02 |
| 012 |
11589278 |
BOLT, S/GR (M12X1.75X75.9, 45THD) (8.900) |
D |
2011-2013 |
03 |
| 013 |
|
GEAR, STRG (SEE GROUP 06.000 STEERING GEAR FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 014 |
11516078 |
NUT, S/GR (M12X1.75X14THK, 25 OD) (8.917) |
D |
2011-2012 |
02 |
| 015 |
11609875 |
STUD, FLANGE, M10X1.5X12.5, M10X1.5X29, 18 OD, 9.8, GMW3044, HDR-PT (PART OF 1) (8.981) |
|
2011-2013 |
02 |
| 016 |
11516819 |
NUT, STAMPED M10 X 1.5 (PART OF 1) |
|
2011-2013 |
02 |
