| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 459 |
|

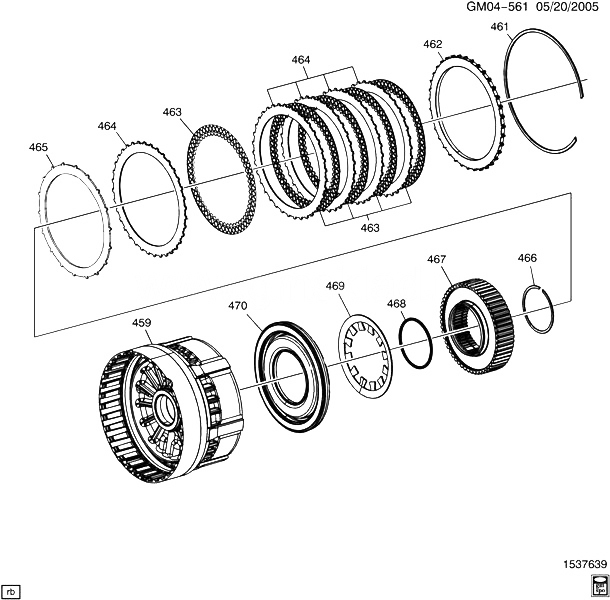

SUPPORT, CTR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 461 |
24231937 |
RING, LOW REV CLU BKG PLT RET (2.33MM +/- 0.05) (MUST BE USED T/W 24247402) (4.166) (ACDelco #24231937) |
DM (MYA) |
2012-2013 |
01 |
| 461 |
24231938 |
RING, LOW REV CLU BKG PLT RET (2.63MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24231938) |
DM (MYA) |
2012-2013 |
01 |
| 461 |
24247408 |
RING, LOW REV CLU BKG PLT RET (3.23MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24247408) |
DM (MYA) |
2012-2013 |
01 |
| 462 |
24247402 |
PLATE, LOW REV CLU BKG (MUST BE USED T/W 24231937/38/38, AND 24247407/08) (ACDelco #24247402) |
DM (MYA) |
2012-2013 |
01 |
| 463 |
24236861 |
PLATE, LOW REV CLU (*KIT2) (4.164) (ACDelco #24236861) |
DM (LF1, MYA, MX0) |
2012-2012 |
01 |
| 464 |
24258079 |
PLATE, LOW REV CLU (STEEL) (PART PKG CONTAINS 1 PART) (ACDelco #24258079) |
DM (MYA) |
2012-2013 |
04 |
| 465 |
24237971 |
PLATE, LOW REV CLU (WAVED) (ACDelco #24237971) |
DM (MYA) |
2012-2013 |
01 |
| 466 |
24228930 |
RING, LOW REV CLU SPR RET (ACDelco #24228930) |
DM (LF1, MYA) |
2012-2013 |
01 |
| 467 |
24252466 |
SPRAG KIT, LOW CLU (INCLS 468) (ACDelco #24252466) |
DM (LF1, MYA) |
2012-2012 |
01 |
| 468 |
|
SEAL, LOW CLU SPRAG (PART OF 467) (*KIT1) |
|
2012-2013 |
|
| 469 |
24228928 |
SPRING, LOW REV CLU (ACDelco #24228928) |
DM (LF1, MYA) |
2012-2013 |
01 |
| 470 |
24225525 |
PISTON, LOW REV CLU (ACDelco #24225525) |
DM (MYA) |
2012-2013 |
01 |
| K01 |
24238913 |
SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 468) (INCLS CONTROL VLV SOL ASM) (ACDelco #24238913) |
DM (MYA) |
2012-2013 |
01 |
| K02 |
24252458 |
PLATE KIT, CLU (INCLS 463) (ACDelco #24252458) |
DM (MYA) |
2012-2013 |
01 |
