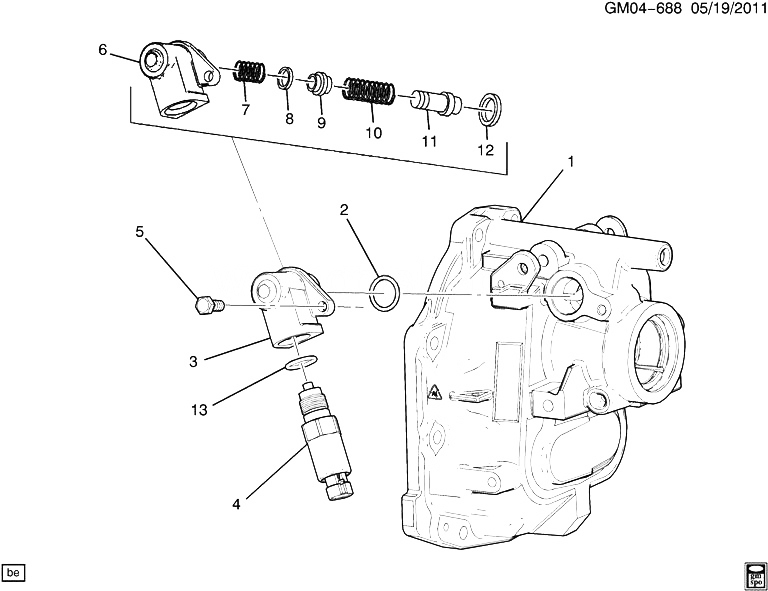

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19206208 |
EXTENSION, TRANS |
DN (MG9) |
2011-2013 |
01 |
| 002 |
12523301 |
SEAL, M/TRNS REV GR BLOCKOUT SOL HSG (O-RING) (4.307) (ACDelco #12523301) |
DN (MG9) |
2011-2013 |
02 |
| 003 |
19180052 |
HOUSING, M/TRNS REV GR BLOCKOUT SOL (INCLS 6-12) (ACDelco #19180052) |
DN (MG9) |
2011-2013 |
01 |
| 004 |
19178634 |
SOLENOID, M/TRNS REV GR BLOCKOUT (INCLS 13) (ACDelco #19178634) |
DN (MG9) |
2011-2013 |
01 |
| 005 |
12523302 |
BOLT, M/TRNS REV GR BLOCKOUT SOL HSG (4.307) |
DN (MG9) |
2011-2013 |
01 |
| 006 |
|
HOUSING, M/TRNS REV GR BLOCKOUT SOL (PART OF 3) |
|
2011-2013 |
|
| 007 |
|
SPRING, REV INTLK PLGR (PART OF 3) |
|
2011-2013 |
|
| 008 |
|
RING, REV SHFT BLOCKING RET (PART OF 3) |
|
2011-2013 |
|
| 009 |
|
COLLAR, TRANS REV SHFT LVR (PART OF 3) |
|
2011-2013 |
|
| 010 |
|
SPRING, REV SHFT STOP (PART OF 3) |
|
2011-2013 |
|
| 011 |
|
PLUNGER, REV LAT (PART OF 3) |
|
2011-2013 |
|
| 012 |
|
RING, REV SHFT BLOCKING RET (PART OF 3) |
|
2011-2013 |
|
| 013 |
12523293 |
SEAL, M/TRNS REV GR BLOCKOUT SOL (O-RING) (PART OF 4) (4.307) (ACDelco #12523293) |
DN (MG9) |
2011-2013 |
01 |
