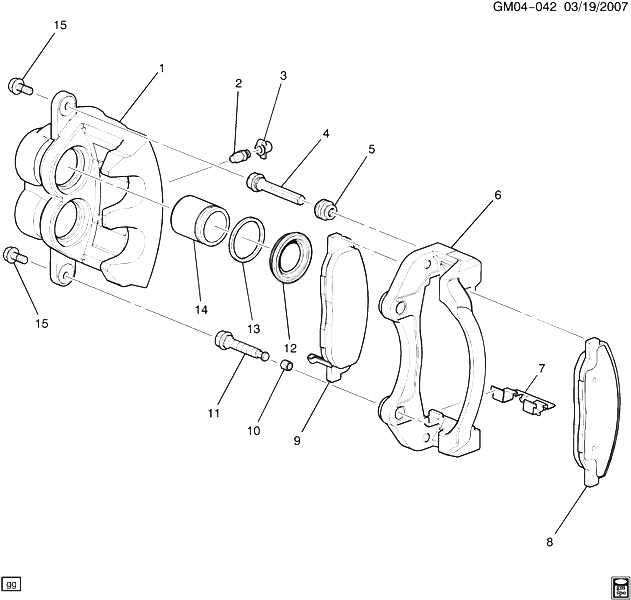

(GM04-042) 2011-2013 DM47 ТОРМОЗНОЙ СУППОРТ ПЕРЕДНИЙ (JE5) CADILLAC - CTS COUPE 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15851351) DM (JE5, MN6, MX0) 2011-2013 01
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15851351) DM (JE5, MX7) 2011-2013 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15853359) DM (JE5, MN6, MX0) 2011-2013 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15853359) DM (JE5, MX7) 2011-2013 01
002 88935776 VALVE, FRT BRK CLPR BLEDR (PART OF 1) (M10X1.0) (ACDelco #88935776) DM (JE5, F55) 2011-2013 02
003 88935785 CAP, FRT BRK CLPR BLEDR VLV (PART OF 1) D (JE5, JL9) 2011-2013 02
004 PIN, FRT BRK CLPR GDE (*KIT4) 2011-2013
005 SEAL, FRT BRK CLPR GDE PIN (*KIT3) 2011-2013
006 15851354 BRACKET, FRT BRK CLPR DM (JE5) 2011-2013 02
007 SPRING, FRT DISC BRK PAD RET (*KIT2) 2011-2013
008 PAD, FRT DISC BRK OTR (*KIT2) 2011-2013
009 PAD, FRT DISC BRK INR (*KIT2) 2011-2013
010 BUSHING, FRT BRK CLPR GDE PIN (*KIT3, KIT4) 2011-2013
011 PIN, FRT BRK CLPR GDE (*KIT4) 2011-2013
012 BOOT, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) 2011-2013
013 SEAL, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) 2011-2013
014 15926281 PISTON, FRT BRK CLPR (PART OF 1) (ACDelco #15926281) DM (JE5) 2011-2013 04
015 89027183 BOLT, FRT BRK CLPR GDE PIN (M8X1.0) (14MM SOCKET) DM (JE5) 2011-2013 04
K01 25814701 SEAL KIT, FRT BRK CLPR PSTN (INCLS 12, 13) (CONTAINS 2 PISTON BOOTS 2 PISTON SEALS) DM (JE5, MN6, MX0, MX7) 2011-2013 02
K02 22825195 PAD KIT, FRT DISC BRK (INCLS 7-9) (ACDelco #171-1088) DM (JE5, MN6, MX0, MX7) 2011-2013 01
K03 25814700 SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS (4)SEALS (2)BUSHINGS) DM (JE5) 2011-2013 01
K04 13504030 PIN KIT, FRT BRK CLPR GDE (INCLS 4, 10, 11) DM (JE5) 2011-2013 02
