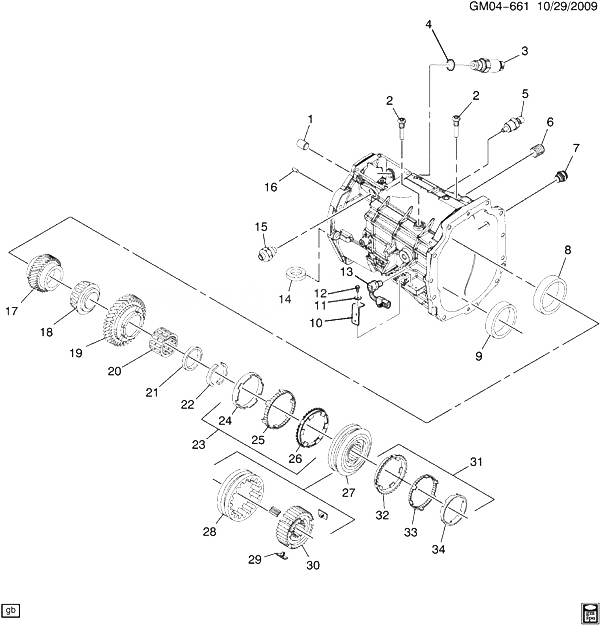

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89059427 |
BUSHING, SHFT SHF DTNT (4.307) (ACDelco #89059427) |
DN (MG9) |
2011-2013 |
02 |
| 002 |
12523243 |
BOLT, SHFT GDE DTNT PLT (4.303) |
DN (MG9) |
2011-2013 |
02 |
| 003 |
19210002 |
SOLENOID, M/TRNS 2ND 3RD GR BLOCKOUT (4.307) (ACDelco #19210002) |
DN (MG9) |
2011-2013 |
01 |
| 004 |
12523293 |
SEAL, REV LOCKOUT SOL (O RING) (ACDelco #12523293) |
DN (MG9) |
2011-2013 |
01 |
| 005 |
12458118 |
SENSOR, M/TRNS FLUID TEMP (ACDelco #12458118) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 006 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRANS OIL FIL) (ACDelco #25522466) |
|
2011-2013 |
01 |
| 007 |
19180517 |
FITTING, TRANS FLUID PMP OTLT PIPE (ACDelco #19180517) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 008 |
|
CUP, MAIN SHF BRG (PART OF 18) |
|
2011-2013 |
|
| 009 |
|
CUP, CNTR GR RR BRG (SEE GROUP 04.000 MANUAL TRANSMISSION PART 2 GEARS SHAFTS FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 010 |
19206215 |
BRACKET, B/U LP SW |
DN (LSA, MG9) |
2012-2013 |
01 |
| 011 |
89059443 |
WASHER, B/U LP SW |
DN (LSA, MG9) |
2012-2013 |
01 |
| 012 |
89059444 |
BOLT, B/U LP SW BRKT |
DN (LSA, MG9) |
2012-2013 |
01 |
| 013 |
89059441 |
SWITCH, B/U LP (ACDelco #D2299C) |
DN (LSA, MG9) |
2012-2013 |
01 |
| 014 |
12386078 |
MAGNET, TRANS (ACDelco #12386078) |
DN (MG9) |
2011-2013 |
02 |
| 015 |
89059430 |
DETENT, SHFT INTLK (ACDelco #89059430) |
DN (MG9) |
2011-2013 |
01 |
| 016 |
12523068 |
PIN, TRANS CASE LOC (0.685) |
DN (MG9) |
2011-2013 |
02 |
| 017 |
19206230 |
GEAR, 6TH (DRVN) (ACDelco #19206230) |
DN (MG9) |
2011-2013 |
01 |
| 018 |
19206219 |
BEARING, MAIN SHF CTR (INCLS 8) (ACDelco #19206219) |
DN (MG9) |
2011-2013 |
01 |
| 019 |
19178686 |
GEAR, 1ST |
DN (MG9) |
2011-2012 |
01 |
| 019 |
19256246 |
GEAR, 1ST (ACDelco #19256246) |
DN (MG9) |
2012-2013 |
01 |
| 020 |
12523188 |
BEARING, 1ST GR (4.383) (ACDelco #12523188) |
DN (MG9) |
2011-2013 |
01 |
| 021 |
89059975 |
RING, 1ST 2ND GR SYN RET (ACDelco #89059975) |
DN (MG9) |
2011-2013 |
01 |
| 022 |
89059974 |
WASHER, 1ST GR THR |
DN (MG9) |
2011-2013 |
02 |
| 023 |
19256241 |
RING, 1ST GR BLOCKING (INCLS 24-26) |
DN (MG9) |
2011-2013 |
01 |
| 024 |
|
CONE, 1ST GR SYN INR (PART OF 23) |
|
2011-2013 |
|
| 025 |
|
CONE, 1ST GR SYN OTR (PART OF 23) |
|
2011-2013 |
|
| 026 |
|
RING, 1ST GR SYN (PART OF 23) |
|
2011-2013 |
|
| 027 |
19259991 |
SYNCHRONIZER, 1ST 2ND GR (INCL 28-30) |
DN (MG9) |
2011-2013 |
01 |
| 028 |
|
SLEEVE, 1ST 2ND GR SYN (PART OF 27) |
|
2011-2013 |
|
| 029 |
|
INSERT, 1ST 2ND GR SYN (PART OF 27) |
|
2012-2013 |
|
| 030 |
|
HUB, 1ST 2ND GR SYN (PART OF 27) |
|
2011-2013 |
|
| 031 |
19260754 |
RING, 2ND GR BLOCKING (INCLS 32-34) |
DN (MG9) |
2011-2013 |
01 |
| 032 |
|
RING, 2ST GR SYN (PART OF 31) |
|
2011-2013 |
|
| 033 |
|
CONE, 2ND GR SYN OTR (PART OF 31) |
|
2011-2013 |
|
| 034 |
|
CONE, 2ND GR SYN INR (PART OF 31) |
|
2011-2013 |
|
