| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

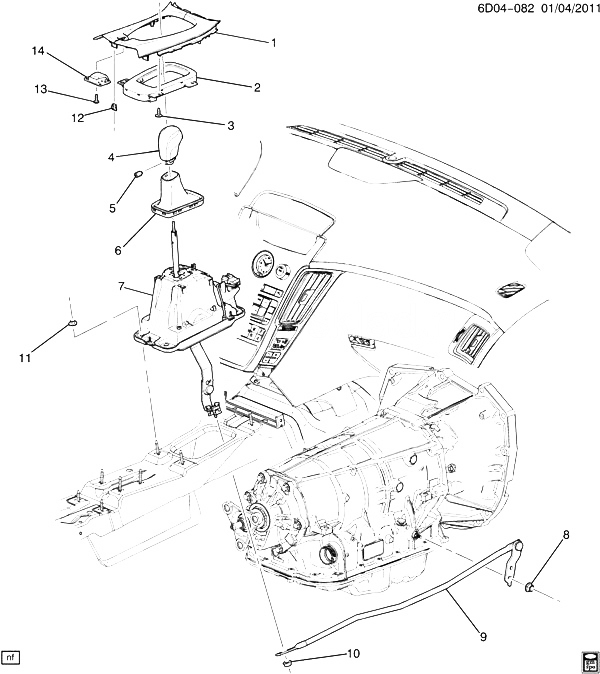

| 001 |
20960677 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 2, 3, 12-14) (SILVER) (W/ PART BRAKE SWITCH) |
DM47 (MYA, 4AL, 4AM, 4AR) |
2012-2012 |
01 |
| 002 |
25801116 |
INDICATOR, A/TRNS CONT (SHFTR TR PLT) (PART OF 1) |
DM (MYA, MYB) |
2011-2013 |
01 |
| 003 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 1) |
|
2011-2013 |
04 |
| 004 |
20907105 |
KNOB, A/TRNS CONT LVR (INCLS 5) (EBONY) |
DM (MYA, MX0, 4AC, 4AL, 4AM, 4AR, 5AC) |
2012-2013 |
01 |
| 004 |
20907105 |
KNOB, A/TRNS CONT LVR (INCLS 5) (EBONY) |
DM (MYA, MX7, 4AC, 4AL, 4AM, 4AR, 5AC) |
2012-2013 |
01 |
| 004 |
25824055 |
KNOB, A/TRNS CONT LVR (INCLS 5) (COCOA) (ALL LEATHER) |
DM (MYA, MX0, MX7, 4AC) (EXC 03F, 5AC) |
2012-2013 |
01 |
| 004 |
25824057 |
KNOB, A/TRNS CONT LVR (INCLS 5) (EBONY) (SIDE EBONY LEATHER MIDDLE FIGURED SAPELE) |
D35-47-69 (MYA, MX0, MX7, 03F, 4AL, 4AM, 4AR) (EXC 5AC) |
2012-2013 |
01 |
| 004 |
25824059 |
KNOB, A/TRNS CONT LVR (INCLS 5) (COCOA) (SIDE COCOA LEATHER MIDDLE FIGURED SAPELE) |
D35-47-69 (MYA, MYB, MX0, MX7, 03F, 4AC) |
2012-2013 |
01 |
| 004 |
25824060 |
KNOB, A/TRNS CONT LVR (INCLS 5) (EBONY) (ALL LEATHER) |
DM (MYA, MX0, 4AL, 4AM, 4AR) (EXC 03F, 5AC) |
2012-2013 |
01 |
| 005 |
11570687 |
BOLT, A/TRNS CONT LVR KNOB (PART OF 4) |
D |
2011-2013 |
01 |
| 006 |
25824062 |
BOOT, A/TRNS CONT (EBONY) |
DM (MYA, MX0, MX7, 4AL, 4AM, 4AR) |
2012-2013 |
01 |
| 006 |
25824064 |
BOOT, A/TRNS CONT (COCOA) |
D (MYA, MX0, MX7, 4AC) |
2012-2013 |
01 |
| 007 |
25824053 |
BASE, A/TRNS CONT |
DM (MX0) |
2011-2013 |
01 |
| 007 |
25824054 |
BASE, A/TRNS CONT |
DM (MX7) |
2011-2013 |
01 |
| 008 |
11514603 |
NUT, M10X1.5 15MM SOCKET (A/TRNS RANGE SEL LVR) |
(MX7) |
2011-2013 |
01 |
| 008 |
11519095 |
NUT, ACORN HEX, M8X1.0, 15MM THK, 9, 6047M, W/DOME. (A/TRNS RANGE SEL LVR) |
(MX0) |
2011-2013 |
01 |
| 009 |
15780845 |
LINK, A/TRNS RANGE SEL LVR |
D (LF1, LLT, MYA, MX0) |
2011-2013 |
01 |
| 009 |
22822706 |
LINK, A/TRNS RANGE SEL LVR |
DM35-47-69 (MYA, MX7) |
2012-2013 |
01 |
| 009 |
22822707 |
LINK, A/TRNS RANGE SEL LVR |
DM35-47-69 (LFX, LFW, MYA, MX0) |
2012-2013 |
01 |
| 009 |
15780845 |
LINK, A/TRNS RANGE SEL LVR |
D (LF1, LLT, MYB, MX0) |
2011-2012 |
01 |
| 010 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/TRNS RANGE SEL ROD ADJ) |
|
2011-2013 |
01 |
| 011 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (M/TRNS CONT BRKT) |
|
2011-2013 |
04 |
| 012 |
11610112 |
CLIP, F/FLR CNSL TR PLT (TR PLT TO SI PNL) (PART OF 1) (10.4 X 13 X 9) (14.683) |
D47 |
2011-2013 |
02 |
| 013 |
|
BOLT, F/FLR CNSL CVR (PART OF 1) |
|
2012-2013 |
|
| 014 |
|
COVER, F/FLR CNSL FRT (PART OF 1) |
|
2012-2013 |
|
