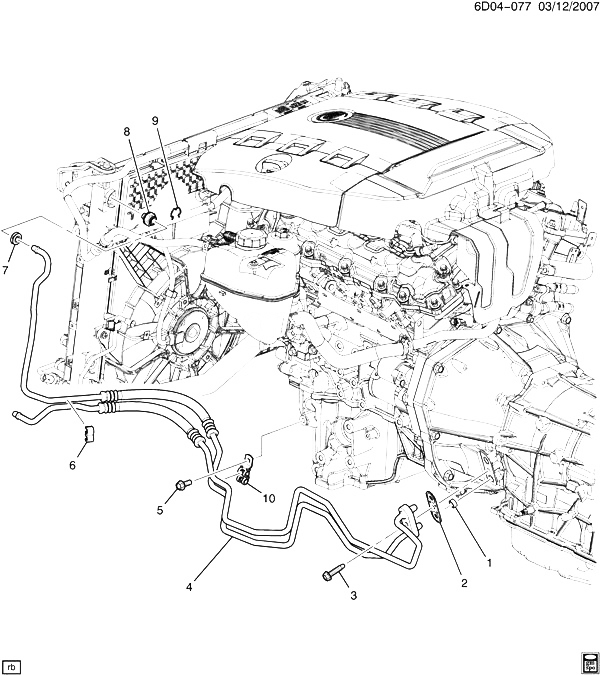

(6D04-077) 2012-2013 DM35-47-69 МАСЛОПРОВОДЫ ОХЛАЖДЕНИЯ АВТОМАТИЧЕСКОЙ КОРОБКИ ПЕРЕДАЧ (MYA, ALL-WHEEL DRIVE MX7, EXC EXTRA CAPACITY V03) CADILLAC - CTS COUPE 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24237658 SEAL, TRANS FLUID CLR PIPE FTG (AT TRANS) (SEALS ONE PIPE) (ACDelco #24237658) D 2011-2013 02
002 15251488 SEAL, TRANS FLUID CLR HOSE (PART OF 4) (SEALS TWO PIPES) (ACDelco #15251488) DM 2011-2013 01
003 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2011-2013 01
004 20977539 HOSE, TRANS FLUID CLR (INCLS 2, 6, 7, 10) (ACDelco #20977539) DM (MYA, MX7) (EXC V03) 2011-2013 01
005 11570082 BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2011-2013 01
006 10405874 CLIP, TRANS FLUID CLR HOSE (PART OF 4) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DM, DN 2011-2013 01
007 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 4) (PLASTIC RETAINER) (ACDelco #15052228) DM 2011-2013 02
008 FITTING, TRANS FLUID CLR PIPE 2012-2013
009 RETAINER, TRANS FLUID CLR PIPE FTG 2012-2013
010 BRACKET, TRANS OIL CLR INL OTLT PIPE (PART OF 4) 2012-2013
