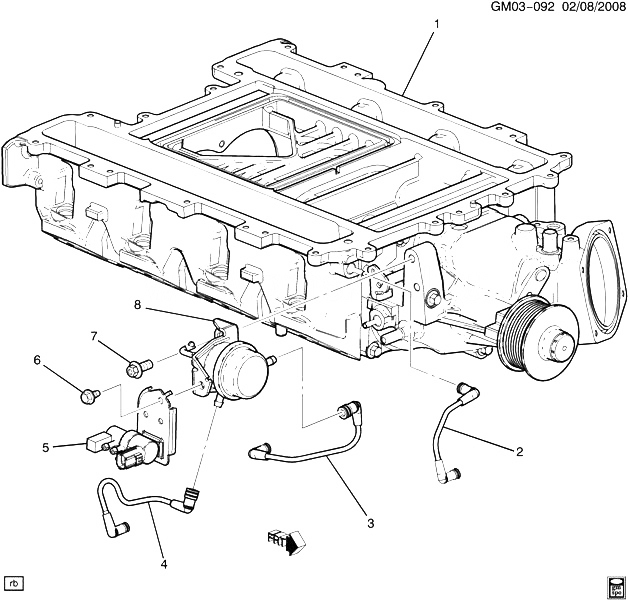

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 006 |
11519964 |
BOLT, HFH, M6X1X13, 6 THD, 14.2 OD, 8.8, GMW3359, MAT POINT (CHRG AIR BYPASS REG SOL VLV) |
|
2011-2013 |
01 |
| 007 |
24504679 |
BOLT, SPCHG BYPASS VLV ACTR (PART OF 8) (HFH, M8X1.25X20, 18 THD W/10MM OF 6124M ADH, 17 O.D., 9.8, 7114M) |
DN (LSA) |
2011-2013 |
02 |
| 008 |
19180859 |
ACTUATOR KIT, SPCHG BYPASS VLV (INCLS 7) |
DN (LSA) |
2011-2013 |
01 |
| 001 |
19257754 |
SUPERCHARGER KIT, (KIT CONTAINS CAP (19257754) FOR VACUUM PORT) |
DN (LSA) |
2011-2013 |
01 |
| 002 |
12615167 |
TUBE, CHRG AIR BYPASS VLV |
DN (LSA) |
2011-2013 |
01 |
| 003 |
12615169 |
TUBE, CHRG AIR BYPASS VLV VAC SCE |
DN (LSA) |
2011-2013 |
01 |
| 004 |
12609469 |
TUBE, SPCHG BYPASS VLV ACTR |
DN (LSA) |
2011-2013 |
01 |
| 005 |
12602160 |
VALVE, CHRG AIR BYPASS REG SOL |
DN (LSA) |
2011-2013 |
01 |
