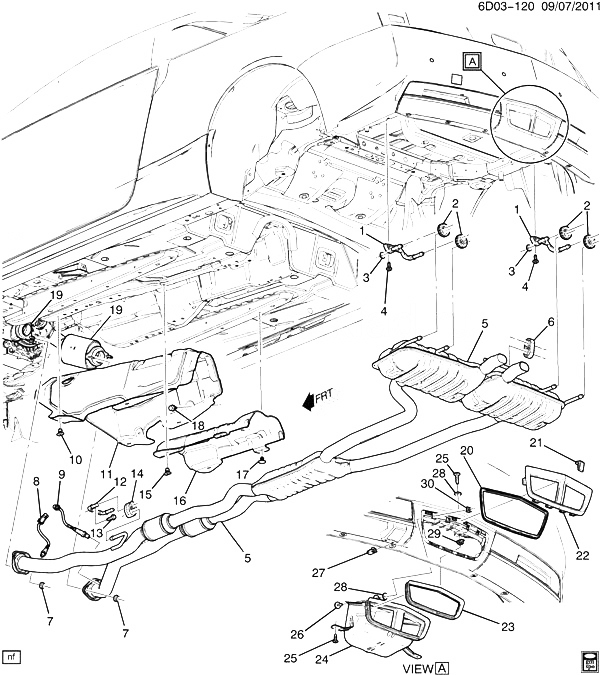

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25866387 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 2) |
DM47 |
2012-2013 |
02 |
| 002 |
20857446 |
INSULATOR, EXH MUFF RR HNGR (PART OF 1) |
DM |
2012-2013 |
02 |
| 003 |
11516650 |
NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) |
|
2012-2013 |
06 |
| 004 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR) |
|
2012-2013 |
04 |
| 005 |
22882839 |
MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 6, 14) |
DM47 (LFX, MN6, MX0) |
2012-2013 |
01 |
| 006 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (PART OF 5) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF INSULATORS) |
DM |
2012-2013 |
02 |
| 007 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (EXH MUFF) |
|
2012-2013 |
04 |
| 008 |
12634063 |
SENSOR, HTD OXY (POST-CATALYST BANK 2 SEN 2) (ACDelco #12634063) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 009 |
12634064 |
SENSOR, HTD OXY (POST-CATALYST BANK 1 SEN 2) (ACDelco #12634064) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 010 |
11570585 |
RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 11) |
D |
2012-2013 |
04 |
| 011 |
20987570 |
INSULATOR, EXH H/SHLD (INCLS 10) |
DM (MX0) |
2012-2013 |
01 |
| 011 |
20917002 |
INSULATOR, EXH H/SHLD (INCLS 10) |
DM (MN6) |
2012-2013 |
01 |
| 012 |
25991657 |
HANGER, EXH FRT PIPE |
DM (MN6, MX0) |
2012-2013 |
02 |
| 013 |
11900254 |
BOLT, HFH, M8X1.25X29, 19 THD, 18 OD, 8.8, GMW3359, M-POINT (EXH PIPE FRT HNGR BRKT) |
|
2012-2013 |
02 |
| 014 |
25924159 |
INSULATOR, EXH PIPE HNGR (PART OF 5) (61.0X48.8X31.0) (SINGLE) |
D |
2012-2013 |
02 |
| 015 |
11570586 |
RETAINER, EXH H/SHLD (PART OF 16) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DM |
2012-2013 |
02 |
| 016 |
20971705 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 15, 17) |
DM |
2012-2013 |
01 |
| 017 |
24501057 |
RETAINER, EXH H/SHLD (PART OF 16) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) |
DM |
2012-2013 |
02 |
| 018 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (EXH MANIF PIPE HNGR INSL) (8.950) (PUSH IN) |
|
2012-2013 |
02 |
| 019 |
|
CONVERTER, 3WAY CTLTC (SEE GROUP 03.000 EXHAUST SYSTEM/FRONT FOR DETAILED ILLUSTRATED VIEW) (14.764) |
|
2012-2013 |
|
| 020 |
20945661 |
INSULATOR, RR BPR FASCIA (GRAY) |
DM47 |
2012-2013 |
01 |
| 020 |
20945662 |
INSULATOR, RR BPR FASCIA (TITANIUM) |
DM47 |
2012-2013 |
01 |
| 021 |
11562364 |
RETAINER, RR BPR FASCIA (CLIP-18X10X11.6) (1.269) |
D47 |
2012-2013 |
02 |
| 022 |
25794874 |
BEZEL, R/END FASCIA EXH TAIL PIPE OPG |
DM47 |
2012-2013 |
01 |
| 023 |
20778470 |
GASKET, EXH RR PIPE (PART OF 24) |
DM47 |
2012-2013 |
01 |
| 024 |
25824427 |
SHIELD, EXH HT (INCLS 23, 29) |
DM47 |
2012-2013 |
01 |
| 025 |
11609457 |
SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (RR BPR FASCIA H/SHLD) |
|
2012-2013 |
04 |
| 026 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RR BPR FASCIA H/SHLD) (8.977) |
|
2012-2013 |
02 |
| 027 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA H/SHLD) |
|
2012-2013 |
02 |
| 028 |
20831851 |
SPACER, RR BPR FASCIA |
DM47 |
2012-2013 |
04 |
| 029 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 24) (10.512) |
|
2012-2013 |
02 |
| 030 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RR BPR FASCIA H/SHLD) (10.701) |
|
2012-2013 |
02 |
