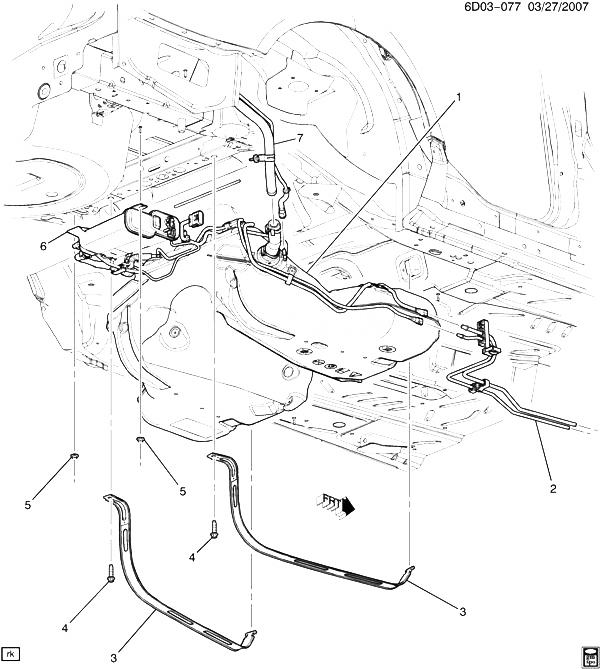

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
TANK, FUEL (W/SDR) (SEE GROUP 03.000 FUEL TANK VAPOR CANISTER FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 002 |
|
PIPE, BRK FUEL FEED EVAP EMIS (SEE GROUP 03.000 FUEL SUPPLY SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 003 |
25679207 |
STRAP, F/TNK |
D |
2011-2013 |
02 |
| 004 |
11517720 |
BOLT, METRIC HEX FLANGE HD, M10X1.5X50 (F/TNK STRP) |
|
2011-2013 |
02 |
| 005 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) |
|
2011-2013 |
02 |
| 006 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 FUEL TANK VAPOR CANISTER FOR DETAILED ILLUSTRATED VIEW) (LESS FILTER COVER) |
|
2011-2013 |
|
| 007 |
|
PIPE, F/TNK FIL (SEE GROUP 03.000 FUEL TANK FILLER PIPES HOSES FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
