| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

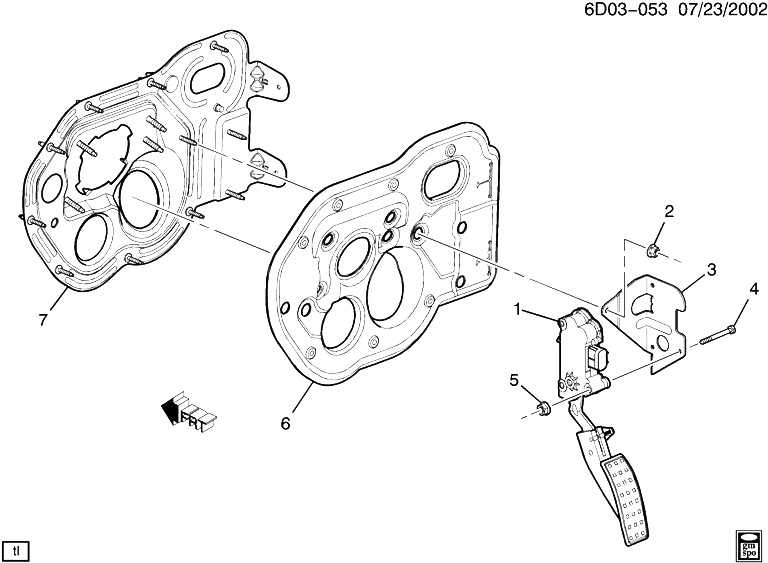

| 001 |
25858067 |
PEDAL, ACCEL (INCLS 3-5) |
DM (MN6) |
2011-2013 |
01 |
| 001 |
10379038 |
PEDAL, ACCEL (INCLS 3-5) (INCLS POSN SENSOR) |
DM (MYA) (EXC JF5) |
2012-2013 |
01 |
| 001 |
10379038 |
PEDAL, ACCEL (INCLS 3-5) (INCLS POSN SENSOR) |
DN (MYD) (EXC JF5) |
2012-2013 |
01 |
| 001 |
10379039 |
PEDAL, ACCEL (INCLS 3-5) |
DM (MV7) (EXC JF5) |
2012-2013 |
01 |
| 001 |
10379039 |
PEDAL, ACCEL (INCLS 3-5) |
DN (MG9) (EXC JF5) |
2012-2013 |
01 |
| 001 |
25858066 |
PEDAL, ACCEL (INCLS 3-5) |
DM, DN (MYA, MYD, JF5) |
2012-2013 |
01 |
| 001 |
25858067 |
PEDAL, ACCEL (INCLS 3-5) |
DM, DN (MG9, JF5) |
2012-2013 |
01 |
| 001 |
25858067 |
PEDAL, ACCEL (INCLS 3-5) |
DM (MG9, MV7) |
2012-2012 |
01 |
| 002 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (ACCEL PED LVR) |
|
2011-2013 |
03 |
| 003 |
|
BRACKET, ACCEL PED (PART OF 1) |
|
2011-2013 |
|
| 004 |
|
BOLT, ACCEL PED LVR (PART OF 1) |
|
2011-2013 |
|
| 005 |
|
NUT, ACCEL PED LVR (PART OF 1) |
|
2011-2013 |
|
| 006 |
25913292 |
BARRIER, BRK PED BRKT SND |
DN (MYD, MX0) |
2011-2013 |
01 |
| 006 |
25931380 |
BARRIER, BRK PED BRKT SND |
DM (MV7, MN6) |
2011-2012 |
01 |
| 006 |
25931380 |
BARRIER, BRK PED BRKT SND |
DN (MG9, MN6) |
2011-2013 |
01 |
| 006 |
25913292 |
BARRIER, BRK PED BRKT SND |
DM (LFW, LFX, MYA, MX0, MX7) |
2012-2013 |
01 |
| 007 |
|
REINFORCEMENT, STRG COL SUPT BRKT |
|
2011-2013 |
|
