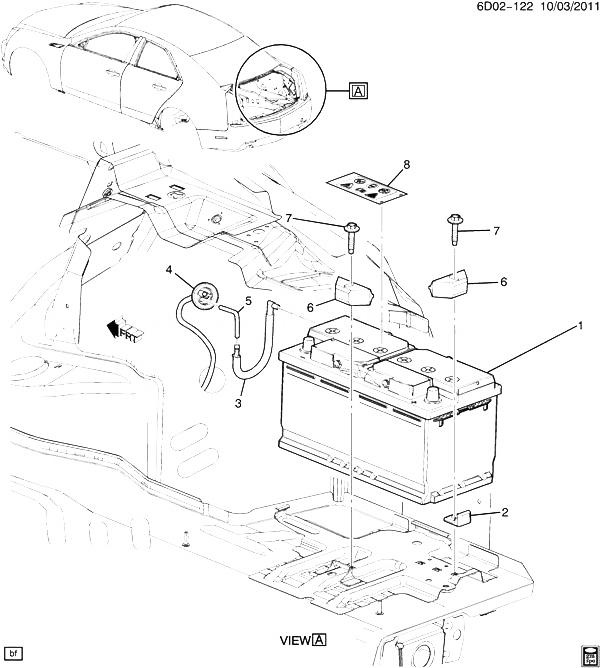

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88865275 |
BATTERY, (INCLS 8) (CCA 660) (TOP POST) (278X175X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #48HPG) |
|
2011-2013 |
|
| 002 |
25844065 |
BRACKET, BAT HOLDN RET |
D47-69 (LSA) |
2011-2012 |
01 |
| 002 |
25844065 |
BRACKET, BAT HOLDN RET |
D35-47-69 (LFW) |
2012-2012 |
01 |
| 002 |
25844065 |
BRACKET, BAT HOLDN RET |
D35-47-69 (LFX) |
2012-2012 |
01 |
| 003 |
20869203 |
HOSE, BAT VENT (FROM FIRST BAT VENT HOSE TO BATTERY) (ACDelco #20869203) |
D35-47-69 (LFW, LFX, LSA) |
2012-2013 |
01 |
| 004 |
|
HARNESS, BODY WRG (INCLS 5) (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 005 |
|
HOSE, BAT VENT (PART OF 4) |
|
2011-2013 |
|
| 006 |
14005061 |
RETAINER, BAT HOLDN (PLASTIC) |
D35-47-69 |
2011-2013 |
02 |
| 007 |
11509853 |
BOLT, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET) |
|
2011-2013 |
02 |
| 008 |
25808256 |
LABEL, BAT WRNG (PART OF 1) (ARABIC) |
D47-69 (KJ1) |
2011-2013 |
01 |
