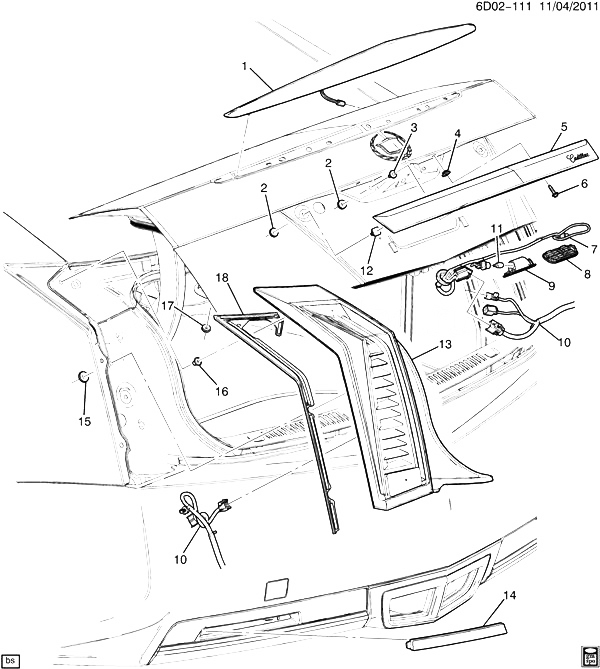

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20972856 |
LAMP, HIGH MT STOP |
DM, DN47 (TB8, TS6) (EXC T89) |
2012-2013 |
01 |
| 001 |
20972857 |
LAMP, HIGH MT STOP |
DM, DN47 (TS6, T89) |
2012-2013 |
01 |
| 001 |
20972866 |
LAMP, HIGH MT STOP |
DM47 (T89) (EXC TS6) |
2012-2013 |
01 |
| 001 |
22847108 |
LAMP, HIGH MT STOP |
DM47 (EXC TS6, T89) |
2012-2013 |
01 |
| 002 |
11519612 |
NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (R/CMPT LID APLQ) |
|
2011-2013 |
04 |
| 003 |
11570746 |
STUD, R/CMPT LID APLQ (PART OF 5) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) |
D47 (ATH) |
2011-2013 |
02 |
| 004 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (R/CMPT LID APLQ) |
|
2011-2013 |
02 |
| 005 |
22814000 |
APPLIQUE, R/CMPT LID (INCLS 3, 12) (SEE GROUP 12.000 REAR COMPARTMENT HARDWARE FOR DETAILED ILLUSTRATED VIEW) (CHROME) (W/O CAMERA HARN ASM) |
DM, DN47 (ATG, UVC) |
2012-2013 |
01 |
| 005 |
22814001 |
APPLIQUE, R/CMPT LID (INCLS 3, 12) (SEE GROUP 12.000 REAR COMPARTMENT HARDWARE FOR DETAILED ILLUSTRATED VIEW) (CHROME) (W/O LAMP ASM, CAMERA HARN ASM) |
DM, DN47 (ATH, UVC) |
2012-2013 |
01 |
| 005 |
22814002 |
APPLIQUE, R/CMPT LID (INCLS 3, 12) (SEE GROUP 12.000 REAR COMPARTMENT HARDWARE FOR DETAILED ILLUSTRATED VIEW) (CHROME) (W/O HARNESS ASM LAMP ASM) |
DM, DN47 (ATH) (EXC UVC) |
2012-2013 |
01 |
| 006 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (R/CMPT LID APLQ) (9.665) |
|
2011-2013 |
02 |
| 007 |
20942761 |
HARNESS, RR LIC PLT LP WRG (INCLS 8) |
DM, DN47 (ATH, UVC) |
2011-2012 |
01 |
| 007 |
20942762 |
HARNESS, RR LIC PLT LP WRG (INCLS 8) |
DM, DN47 (ATH) (EXC UVC) |
2011-2012 |
01 |
| 007 |
20942763 |
HARNESS, RR LIC PLT LP WRG (INCLS 8) |
DM, DN47 (ATG, UVC) |
2011-2012 |
01 |
| 008 |
25796933 |
SWITCH, R/CMPT LID REL (PART OF 7) (ARGENT) (INTERIOR MOUNTED ON DOOR) (ACDelco #D1417G) |
DM, DN47 (A45) |
2011-2013 |
01 |
| 008 |
20877759 |
SWITCH, R/CMPT LID REL (PART OF 7) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) |
DM, DN47 (ATH) |
2011-2013 |
01 |
| 009 |
13502178 |
LAMP, RR LIC PLT |
DM, DN47 |
2011-2013 |
02 |
| 010 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 011 |
13500812 |
BULB, RR LIC PLT LP (TRADE #W5WLL) (ACDelco #13500812) |
DM, DN47 |
2011-2013 |
01 |
| 012 |
11570701 |
CLIP, R/CMPT LID LWR MLDG (PART OF 5) (M6X1X20, 8 THD) (BOLT - T, 8.8, GMW4205, 15.5 SQ HD W/WASHER.) |
DM, DN47 (ATG, ATH, UVC) |
2012-2013 |
02 |
| 013 |
20921570 |
LAMP, TAIL |
D47 (T4F, T89, T94) |
2012-2013 |
01 |
| 013 |
20921571 |
LAMP, TAIL |
D47 (T4F, T89, T94) |
2012-2013 |
01 |
| 013 |
22841730 |
LAMP, TAIL |
DM, DN47 (T4F) (EXC TB8, T94) |
2011-2013 |
01 |
| 013 |
22841730 |
LAMP, TAIL |
DM, DN47 (EXC T4F, T89, T94) |
2011-2013 |
01 |
| 013 |
22841729 |
LAMP, TAIL |
DM, DN47 (T4F) (EXC TB8, T94) |
2011-2013 |
01 |
| 013 |
22841729 |
LAMP, TAIL |
DM, DN47 (EXC T4F, T89, T94) |
2012-2013 |
01 |
| 013 |
22795546 |
LAMP, TAIL |
DM, DN47 (TB8, T4F) (EXPORT) |
2011-2013 |
01 |
| 013 |
22841727 |
LAMP, TAIL |
DM, DN47 (TB8, T4F, T89) (EXPORT) |
2012-2013 |
01 |
| 014 |
25880226 |
REFLECTOR, RR BPR FASCIA |
DM35-47 (ATG, ATH) |
2011-2013 |
01 |
| 014 |
25880226 |
REFLECTOR, RR BPR FASCIA |
DN47 |
2011-2013 |
01 |
| 014 |
25894905 |
REFLECTOR, RR BPR FASCIA |
DN47 |
2011-2013 |
01 |
| 014 |
25894905 |
REFLECTOR, RR BPR FASCIA |
DM35-47 (ATG, ATH) |
2011-2013 |
01 |
| 015 |
11517736 |
NUT, HEX, M6X1, 5.7 HIGH, 24 OD, 9, 7111M, W/2.5 THK SEALING WA (T/LP) |
|
2011-2013 |
06 |
| 016 |
11571225 |
PLUG, T/LP BOLT HOLE (BLACK) (FITS 9.9 DIA HOLE, 17 OD, 16.5 LENGTH) |
DM, DN47 |
2011-2013 |
06 |
| 017 |
11611049 |
NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (HIGH MT S/LP) |
|
2011-2013 |
06 |
| 018 |
22798208 |
SEALING STRIP, T/LP TO Q/PNL |
DM, DN47 |
2011-2013 |
01 |
| 018 |
22798209 |
SEALING STRIP, T/LP TO Q/PNL |
DM, DN47 |
2011-2013 |
01 |
