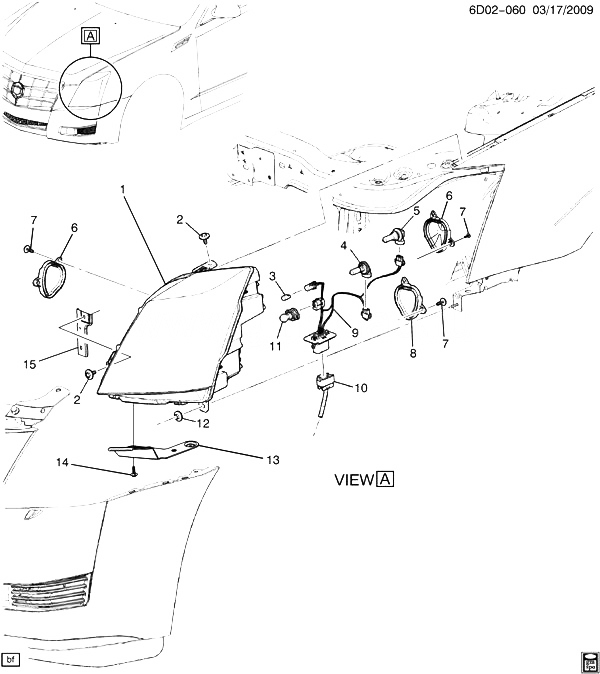

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22783445 |
HEADLAMP, (INCLS 3-9, 11, 13, 14) |
DM (EXC TB8, T4F, T94) |
2011-2013 |
01 |
| 001 |
22783446 |
HEADLAMP, (INCLS 3-9, 11, 13, 14) |
DM, DN (EXC TB8, T4F, T94) |
2011-2013 |
01 |
| 002 |
11518094 |
BOLT, HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (HDLP) |
|
2011-2013 |
04 |
| 003 |
01999382 |
BULB, (PART OF 1) (ACDelco #W5WLL) (LONGER LIFE) |
|
2011-2013 |
01 |
| 004 |
92095787 |
BULB, LOW BEAM HDLP (PART OF 1) (TRADE #H11) (ACDelco #92095787) |
DM, DN35-47-69 (EXC TB8, T4F, T94) |
2011-2013 |
02 |
| 005 |
92095788 |
BULB, HIGH BEAM HDLP (PART OF 1) (TRADE #H9) (ACDelco #H9) |
D35-47-69 (EXC TB8, T4F, T94) |
2012-2013 |
02 |
| 006 |
25794778 |
CAP, HDLP SOC BULB LK (PART OF 1) (2.725) |
D35-47-69 |
2011-2013 |
02 |
| 007 |
11570322 |
BOLT, HDLP (PART OF 1) (M4.8X1.59X16) (HEX WASHER HEAD) (2.727) |
D47 |
2011-2013 |
09 |
| 008 |
25864591 |
COVER, HDLP BULB ACC HOLE (HIGH BEAM) (PART OF 1) |
D47 (EXC T84) |
2011-2013 |
01 |
| 009 |
|
HARNESS, HDLP WRG (PART OF 1) |
|
2011-2013 |
|
| 010 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FORWARD LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 011 |
10351679 |
BULB, HDLP (PART OF 1) (AMBER) (ACDelco #10351679) |
D35-47-69 (EXC TB8, T4F, T94) |
2011-2013 |
02 |
| 012 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HDLP) |
|
2011-2013 |
02 |
| 013 |
15896562 |
BRACKET, HDLP (PART OF 1) (W/ FRT SI MKR PARK T/SIG LP) (TO FRONT FASCIA) |
DM, DN47 |
2011-2013 |
01 |
| 014 |
11570322 |
BOLT, HDLP (PART OF 1) (M4.8X1.59X16) (HEX WASHER HEAD) (2.727) |
D47 |
2011-2013 |
03 |
| 015 |
15869580 |
BRACKET, HDLP (TO FRONT SIDE RAIL) |
D35-47-69 |
2011-2013 |
01 |
| 015 |
25924112 |
BRACKET, HDLP (TO FRONT SIDE RAIL) |
D35-47-69 |
2011-2013 |
01 |
