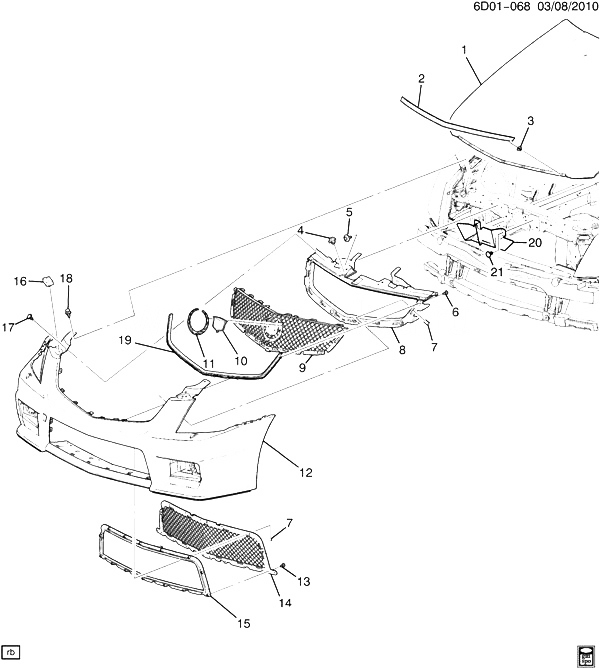

(6D01-068) 2011-2013 DN РЕШЕТКА РАДИАТОРА CADILLAC - CTS COUPE 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22789397 HOOD, (SEE GROUP 08.000 HOOD FOR DETAILED ILLUSTRATED VIEW) DN 2012-2013 01
002 20897985 MOLDING, HOOD FRT (INCLS 3) (W/RETAINER) DN 2011-2013 01
003 11570524 RETAINER, HOOD CTR MLDG (PART OF 2) (10.5 X 11.8 X 8.73) D47 2011-2013 08
004 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (FRT BPR FASCIA SUPT) 2011-2013 04
005 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT BPR CTR FIL SUPT) (8.977) 2011-2013 02
006 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (FRT BPR FASCIA A/DFL) 2011-2013 14
007 11562364 RETAINER, FRT BPR FASCIA (CLIP-18X10X11.6) (1.269) DN 2011-2013 33
008 25891998 GRILLE, FRT UPR (INCLS 9-11, 19) DN (CE4) 2011-2013 01
009 GRILLE, FRT UPR (PART OF 8) 2011-2013
010 15263150 EMBLEM, FRT GRL (PART OF 8) (CREST) DN 2012-2013 01
011 15263149 EMBLEM, FRT GRL (PART OF 8) (WREATH) DN 2012-2013 01
012 25947966 FASCIA, FRT BPR (SEE GROUP 07.000 BUMPER/FRONT FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) DN 2011-2013 01
013 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 15) 2011-2013 08
014 SCREEN, FRT GRL (PART OF 15) 2011-2013
015 25891997 GRILLE, FRT LWR (INCLS 13, 14) DN (CE4) 2011-2013 01
016 25768800 BUMPER, FRT BPR FASCIA D47 2011-2013 02
017 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR LWR FASCIA) (8.950) (PUSH IN) 2011-2013 02
018 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA (PUSH IN)) (8.950) (PUSH IN) 2011-2013 02
019 BEZEL, FRT GRL OPG (PART OF 8) 2011-2013
020 20777958 SHIELD, FRT GRL SIGHT DN 2011-2013 01
021 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (FRT GRL WAT DEFL) 2011-2013 01
