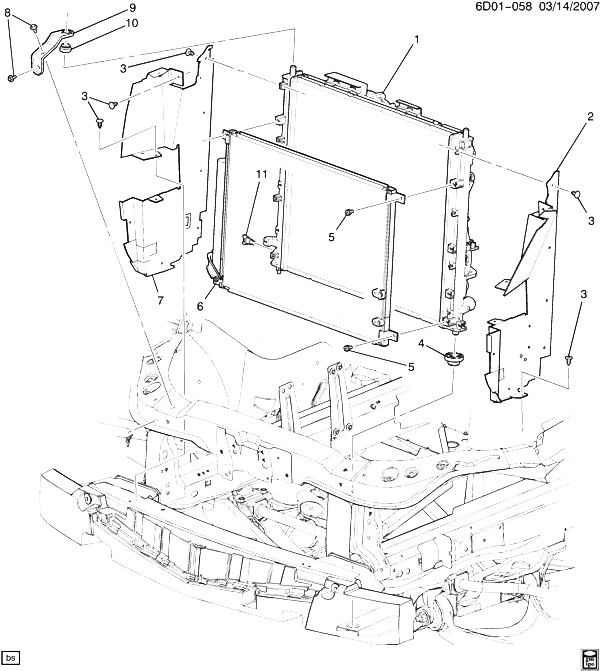

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20983746 |
RADIATOR, (INCLS 4, 11) (ACDelco #21793) |
DM (LFX) |
2012-2013 |
01 |
| 002 |
25895886 |
BAFFLE, RAD AIR SI (INCLS 3) |
DM |
2011-2013 |
01 |
| 003 |
|
RETAINER, RAD AIR BFL (PART OF 2, 7) |
|
2012-2013 |
|
| 004 |
15932850 |
INSULATOR, RAD LWR (PART OF 1) |
D |
2011-2013 |
02 |
| 005 |
11570324 |
BOLT, A/C CNDSR (M6X1X14, 9 THD) |
D |
2011-2013 |
04 |
| 006 |
20929423 |
CONDENSER, A/C (SEE GROUP 09.000 A/C REFIGERATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-63543) |
DM |
2011-2013 |
01 |
| 007 |
25895887 |
BAFFLE, RAD AIR SI (INCLS 3) |
DM |
2011-2013 |
01 |
| 008 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (RAD UPR MT BRKT) |
|
2011-2013 |
04 |
| 009 |
15267706 |
BRACKET, RAD UPR (INCLS 10) |
DM |
2011-2013 |
02 |
| 010 |
|
INSULATOR, RAD UPR (PART OF 9) |
|
2012-2013 |
|
| 011 |
19129764 |
PLUG, RAD DRN (PART OF 1) |
DM |
2011-2013 |
01 |
