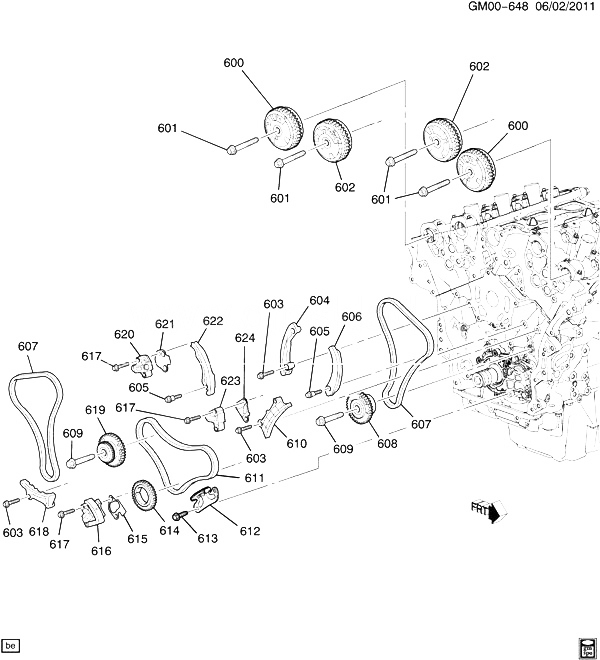

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 600 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 601 |
11588279 |
BOLT, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) |
|
2012-2013 |
04 |
| 602 |
12626160 |
ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 602 |
12626161 |
ACTUATOR, CM/SHF POSN (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED12634613) (INT) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 603 |
11588255 |
BOLT, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (PART OF 604, 610, 618) (8.900) (ACDelco #11588255) |
|
2012-2013 |
06 |
| 604 |
12623514 |
GUIDE, TMG CHAIN (INCLS 603) (PIVOT ARM) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 605 |
11561619 |
BOLT, M8X1.25 6H 43.0, GMW25 (8.8) STL, GMW3179 CODE C (TMG CHAIN TENSR) |
|
2012-2013 |
02 |
| 606 |
12623513 |
GUIDE, TMG CHAIN (PIVOT ARM) |
DM (LFX) |
2012-2013 |
01 |
| 607 |
12633452 |
CHAIN, CM/SHF INTER DRV (SECONDARY) (*KIT1) |
DM (LFX) |
2012-2013 |
02 |
| 608 |
12612839 |
SPROCKET, TMG CHAIN IDLER (INCLS 609) (IDLER LH) (0.736) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 609 |
11588252 |
BOLT, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3179 CODE G (PART OF 608, 619) |
|
2012-2013 |
02 |
| 610 |
12600461 |
GUIDE, TMG CHAIN (INCLS 603) (2 MOUNTING HOLES) (SECONDARY) |
DM (LFX) |
2012-2013 |
01 |
| 611 |
12633451 |
CHAIN, CM/SHF INTER DRV (PRIMARY) (*KIT1) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 612 |
12586959 |
GUIDE, TMG CHAIN (2 MOUNTING HOLES) (LOWER PRIMARY) |
DM (LFX) |
2012-2013 |
01 |
| 613 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE) |
|
2012-2013 |
02 |
| 614 |
12645465 |
SPROCKET, CR/SHF |
DM (LFW, LFX) |
2012-2013 |
01 |
| 615 |
12589477 |
GASKET, TMG CHAIN HSG (PRIMARY) (*KIT1) (ACDelco #12589477) |
DM (LFX) |
2012-2013 |
01 |
| 616 |
12609263 |
TENSIONER, CM/SHF INTER DRV CHAIN (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609263) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 617 |
11588255 |
BOLT, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (TMG CHAIN TENSR) (8.900) (ACDelco #11588255) |
|
2012-2013 |
06 |
| 618 |
12597417 |
GUIDE, TMG CHAIN (INCLS 603) (UPPER PRIMARY) |
DM (LFX) |
2012-2013 |
01 |
| 619 |
12612838 |
SPROCKET, TMG CHAIN IDLER (INCLS 609) (0.736) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 620 |
12609259 |
TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609259) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 621 |
12589479 |
GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589479) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 622 |
12600462 |
GUIDE, TMG CHAIN (2 MOUNTING HOLES) (SECONDARY) |
DM (LFX) |
2012-2013 |
01 |
| 623 |
12609261 |
TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609261) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 624 |
12589478 |
GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589478) |
DM (LFW, LFX) |
2012-2013 |
01 |
| K01 |
12651450 |
CHAIN PKG, TMG (INCLS 607, 611, 615, 616, 620, 621, 623, 624) (ACDelco #12651450) |
DM47 (LFX) |
2012-2012 |
01 |
