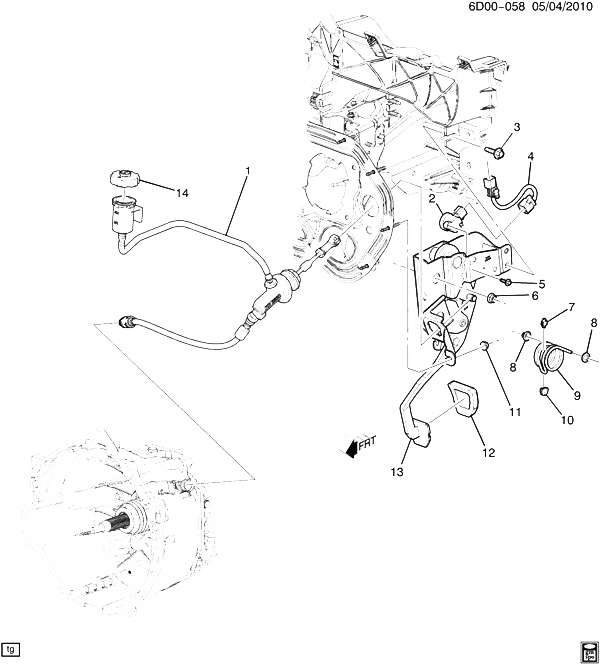

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24238683 |
CYLINDER, CLU MAS (INCLS 14) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 002 |
10302722 |
SENSOR, CLU PED POSN (PART OF 13) (4.625) |
DN35-47-69 (MN6) |
2012-2013 |
01 |
| 003 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (CLU PED BRKT) (T/W 12345493 REPLCS 25534835) |
|
2011-2013 |
02 |
| 004 |
20844030 |
HARNESS, CLU SHFT CONT ACTR WRG (PART OF 13) |
DN35-47-69 (MN6, W2E) |
2011-2013 |
01 |
| 004 |
20844030 |
HARNESS, CLU SHFT CONT ACTR WRG (PART OF 13) |
DN47-69 (AQ9, MN6) |
2011-2013 |
01 |
| 005 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (PART OF 13) |
|
2011-2013 |
01 |
| 006 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (CLU PED BRKT) |
|
2011-2013 |
02 |
| 007 |
25989481 |
GUIDE, CLU PED RTN SPR (PART OF 13) |
DN (MN6) |
2011-2013 |
01 |
| 008 |
25971502 |
BUSHING, CLU PED RTN SPR (PART OF 13) |
DN (MN6) |
2011-2013 |
02 |
| 009 |
25971500 |
SPRING, CLU PED RTN (PART OF 13) |
DN (MN6) |
2011-2013 |
01 |
| 010 |
25971504 |
BUSHING, CLU PED RTN SPR GDE (PART OF 13) |
DN (MN6) |
2011-2013 |
01 |
| 011 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CLU PED) |
|
2011-2013 |
01 |
| 012 |
15854394 |
PAD, CLU PED (PART OF 13) |
DN (MN6) |
2011-2013 |
01 |
| 013 |
25858073 |
PEDAL, CLU (W/BRKT) (INCLS 2, 4, 5, 7-10, 12) |
DN (MG9, W2E) |
2011-2013 |
01 |
| 013 |
25932331 |
PEDAL, CLU (W/BRKT) (INCLS 2, 4, 5, 7-10, 12) |
DN (MN6, AQ9) |
2011-2013 |
01 |
| 014 |
|
CAP, CLU M/CYL RSVR (PART OF 1) |
|
2011-2013 |
|
