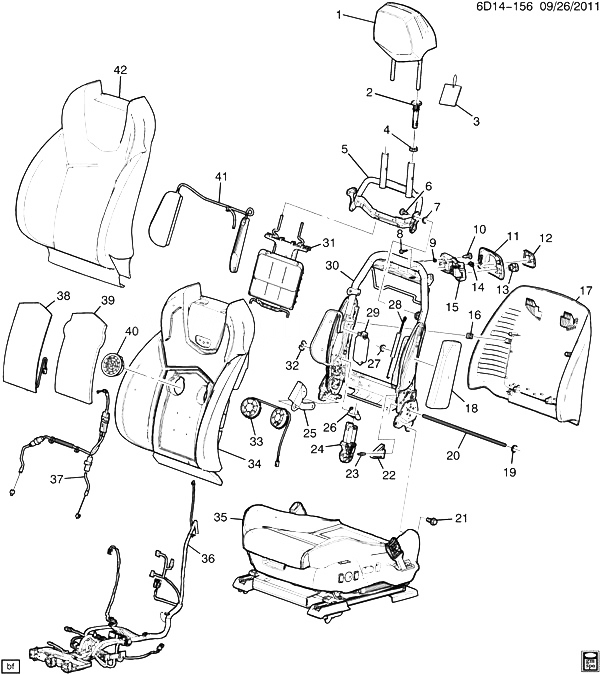

(6D14-156) 2011-2013 DN47 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (RECARO W2E) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20938094 RESTRAINT, D/SEAT HD (EBONY) DN47(ECH, KB6, W2E, 02W) (EXC KA1) 2011-2013 01
001 20793233 RESTRAINT, D/SEAT HD (EBONY) DN47(ECH, KB6, W2E, 01G) (EXC KA1) 2011-2011 01
001 20793234 RESTRAINT, D/SEAT HD (TITANIUM) DN47(KB6, W2E, 01C) (EXC KA1) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DN(01G, 02W) 2011-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DN(01C) 2011-2013 01
003 20845363 FABRIC, VEH CLNG (V-SERIES CLEANING CLOTH) DN 2011-2013 01
004 25994444 RETAINER, D/SEAT H/RST GDE (PART OF 30) D35-47-69 2011-2013 01
005 25994442 SUPPORT, D/SEAT H/RST (PART OF 30) DN47(ECH) 2011-2013 01
006 BOLT, D/SEAT H/RST SUPT (PART OF 30) 2011-2013
007 25995124 BUSHING, F/SEAT BK PIV (PART OF 30) DN 2011-2013 02
008 25995123 BUMPER, F/SEAT BK (PART OF 30) DN 2011-2013 02
009 11570654 NUT, D/SEAT (PART OF 15) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DM, DN47 2011-2013 05
010 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 15) 2011-2013 02
011 20815262 BEZEL, D/SEAT BK LAT REL HDL (INCLS 14) (EBONY) (EZ ENTRY) DN47(W2E, 01G, 02W) 2011-2013 01
011 20815263 BEZEL, D/SEAT BK LAT REL HDL (INCLS 14) (TITANIUM) (EZ ENTRY) DN47(01C) 2011-2011 01
012 20815255 HANDLE, D/SEAT RECL (TITANIUM) (EZ ENTRY) DM, DN47(01C) 2011-2013 01
012 20815254 HANDLE, D/SEAT RECL (EBONY) (EZ ENTRY) DN47(01G, 02W) 2011-2013 01
013 20779566 SWITCH, F/SEAT BK POSN (EBONY) DN47(02W) 2011-2013 02
013 20779566 SWITCH, F/SEAT BK POSN (EBONY) DM, DN47(01G) 2011-2013 02
013 20779567 SWITCH, F/SEAT BK POSN (TITANIUM) DM, DN47(01C) 2011-2013 02
014 CLIP, D/SEAT BK CUSH LAT REL HDL (PART OF 11) 2011-2013
015 20815246 HANDLE, F/SEAT EASY ENTRY (INCLS 9, 10) (EBONY) (EZ ENTRY) DM, DN47(01G) 2011-2013 01
015 20815246 HANDLE, F/SEAT EASY ENTRY (INCLS 9, 10) (EBONY) (EZ ENTRY) DN47(02W) 2011-2013 01
015 20815247 HANDLE, F/SEAT EASY ENTRY (INCLS 9, 10) (TITANIUM) (EZ ENTRY) DM, DN47(01C) 2011-2013 01
016 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 17) 2011-2013 04
017 25939325 PANEL, D/SEAT BK FIN (INCLS 16) (EBONY) (PANEL IS WRAPPED IN LEATHER) DN47(A45, W2E, 02W) 2011-2013 01
017 25939330 PANEL, D/SEAT BK FIN (INCLS 16) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DN47(A45, ECH, W2E, 01C) 2011-2011 01
017 25939326 PANEL, D/SEAT BK FIN (INCLS 16) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DN47(W2E, 01C) 2011-2013 01
017 25939325 PANEL, D/SEAT BK FIN (INCLS 16) (EBONY) (PANEL IS WRAPPED IN LEATHER) DN47(A45, ECH, 01G) 2011-2013 01
018 20970105 AIRBAG, D/SEAT SI D47 2011-2013 01
019 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 30) 2011-2013 02
020 15894212 BAR, F/SEAT BK FRM CR (PART OF 30) DM, DN 2011-2013 02
021 25828643 BOLT, F/SEAT (PART OF 30) DN 2011-2013 08
022 25994443 BRACKET, D/SEAT (11.419) DN35-47-69 2011-2013 02
023 11610252 RIVET, POP, 4.7 DIA SHANK, 16.39 LENGTH, 1.52-9.52 GRP RNG, SAE 1008 STL, GM (F/SEAT CUSH SI BOLS) 2011-2013 01
024 15894214 ACTUATOR, D/SEAT RECL (PART OF 30) DN 2011-2013 01
025 20875405 COVER, D/SEAT RECL FIN (EBONY) DN(01G) 2011-2013 01
025 20875406 COVER, D/SEAT RECL FIN (TITANIUM) DN(01C) 2011-2013 01
025 20875408 COVER, D/SEAT RECL FIN (EBONY) DN(01G) 2011-2013 01
025 20875409 COVER, D/SEAT RECL FIN (TITANIUM) DN(01C) 2011-2013 01
025 20875405 COVER, D/SEAT RECL FIN (EBONY) DN47(02W) 2011-2012 01
025 20875408 COVER, D/SEAT RECL FIN (EBONY) DN47(02W) 2011-2012 01
026 BRACKET, D/SEAT RECL ACTR (PART OF 30) 2011-2013
027 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) 2011-2013 02
028 25994445 SPRING, F/SEAT H/RST ADJ RET (PART OF 30) DM, DN 2011-2013 02
029 20793256 PUMP, D/SEAT P/SEAT CUSH AIR DN(W2E) 2011-2013 02
030 20929307 FRAME, D/SEAT BK (INCLS 4-8, 19-21, 24, 26, 28, 32, 37) (SERVICE SEATBACK FRAME) DN47(AL2, A45, ECH, KB6, W2E) (EXC KA1) 2011-2013 01
031 20793293 LUMBAR SUB, D/SEAT DN(KB6, W2E) (EXC KA1) 2011-2013 01
032 CLIP, ACTUATOR P/SEAT RECL) (PART OF 30) 2011-2013
033 20793341 BLOWER, D/SEAT BACK VENTILATION HEAT COOL DN(KB6, W2E) (EXC KA1) 2011-2013 01
034 PAD, D/SEAT BK (PART OF 42) 2011-2013
035 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2011-2013
036 20929297 HARNESS, D/SEAT WRG DN47(AL2, A45, ECH, KB6, W2E) (EXC KA1) 2011-2011 01
037 20793164 CABLE, F/SEAT BK LAT REL (EZ-ENTRY) (PART OF 30) DM, DN47 2011-2013 02
038 HEATER, D/SEAT BK (PART OF 42) 2011-2013
039 MAT, F/SEAT VENT FAN (PART OF 42) 2011-2013
040 FAN, F/SEAT BK CUSH VENT (PART OF 42) 2011-2013
041 20929296 BLADDER, F/SEAT LUMBAR SUPT DN47 2011-2011 02
042 20994004 COVER, D/SEAT BK (INCLS 34, 38-40) (TITANIUM) (SERVICE SEATBACK CUSHION) DN47(AL2, A45, ECH, KB6, W2E, 01C) (EXC KA1) 2011-2011 01
042 20994002 COVER, D/SEAT BK (INCLS 34, 38-40) (EBONY) (SERVICE SEATBACK CUSHION) DN47(AL2, A45, ECH, KB6, W2E, 01G) (EXC KA1) 2011-2011 01
042 20994003 COVER, D/SEAT BK (INCLS 34, 38-40) (SAFFRON) (SERVICE SEATBACK CUSHION) DN47(AL2, A45, ECH, KB6, W2E, 02W) (EXC KA1) 2011-2013 01
