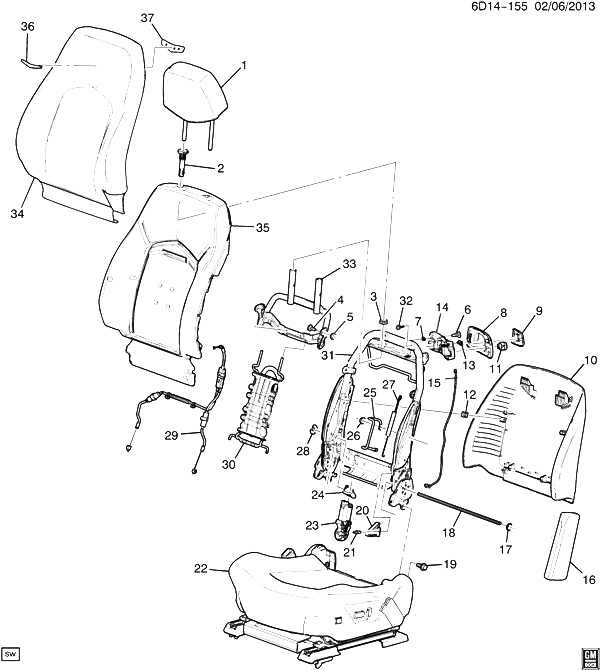

(6D14-155) 2011-2013 DM47 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (EXC POWER LUMBAR AL2) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20812527 RESTRAINT, D/SEAT HD (EBONY) (LEATHERETTE) DM47(AQ9, EWH, 01G) (EXC AL2, A45) 2011-2013 01
001 20830413 RESTRAINT, D/SEAT HD (TITANIUM) DM47(AQ9, EWH, 01C) 2011-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DM(01C) 2011-2013 01
002 25785791 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DM(01G) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DM(01G) 2011-2013 01
002 25908165 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM(01C) 2011-2013 01
003 25994444 RETAINER, D/SEAT H/RST GDE D35-47-69 2011-2013 01
004 BOLT, F/SEAT H/RST (*KIT1) 2011-2013
005 25995124 BUSHING, F/SEAT BK PIV DM 2011-2013 02
006 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 14) 2011-2013 02
007 11570654 NUT, D/SEAT (PART OF 14) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DM, DN47 2011-2013 05
008 20815262 BEZEL, D/SEAT BK LAT REL HDL (INCLS 13) (EBONY) (EZ ENTRY) DM47(AQ9, 01G) 2011-2013 01
008 20815263 BEZEL, D/SEAT BK LAT REL HDL (INCLS 13) (TITANIUM) (EZ ENTRY) DM47(AQ9, 01C) 2011-2013 01
009 20815254 HANDLE, D/SEAT RECL (EBONY) (EZ ENTRY) DM47(01G) 2011-2013 01
009 20815255 HANDLE, D/SEAT RECL (TITANIUM) (EZ ENTRY) DM, DN47(01C) 2011-2013 01
010 25939329 PANEL, D/SEAT BK FIN (INCLS 12) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM(01G) 2011-2013 01
010 25939330 PANEL, D/SEAT BK FIN (INCLS 12) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM(01C) 2011-2013 01
011 20779566 SWITCH, F/SEAT BK POSN (EBONY) DM, DN47(01G) 2011-2013 02
011 20779567 SWITCH, F/SEAT BK POSN (TITANIUM) DM, DN47(01C) 2011-2013 02
012 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10) 2011-2013 04
013 CLIP, D/SEAT BK CUSH LAT REL HDL (PART OF 8) 2011-2013
014 20815246 HANDLE, F/SEAT EASY ENTRY (INCLS 6, 7) (EBONY) (EZ ENTRY) DM, DN47(01G) 2011-2013 01
014 20815247 HANDLE, F/SEAT EASY ENTRY (INCLS 6, 7) (TITANIUM) (EZ ENTRY) DM, DN47(01C) 2011-2013 01
015 22838780 HARNESS, D/SEAT WRG DM47(AQ9, EWH) (EXC AL2, AX4, A45) 2011-2011 01
016 20970105 AIRBAG, D/SEAT SI D47 2011-2013 01
017 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (D/SEAT RECL) (*KIT1) 2011-2013 02
018 15894212 BAR, F/SEAT BK FRM CR (*KIT1) DM, DN 2011-2013 02
019 25828643 BOLT, F/SEAT (*KIT1) DM 2011-2013 08
020 25994443 BRACKET, D/SEAT (11.419) DM 2011-2013 02
021 RIVET, D/SEAT ADJR BRKT (*KIT1) 2011-2013
022 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) (EBONY) (14.880) 2011-2013
023 15894214 ACTUATOR, D/SEAT RECL (*KIT1) DM 2011-2013 01
024 BRACKET, D/SEAT RECL ACTR (*KIT1) 2011-2013
025 25994418 BRACKET, D/SEAT SI AIRBAG DM, DN(AQ9) 2011-2013 01
026 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) 2011-2013 02
027 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2011-2013 02
028 CLIP, ACTUATOR D/SEAT RECL (*KIT1) 2011-2013
029 20793164 CABLE, F/SEAT BK LAT REL (EZ-ENTRY) DM, DN47 2011-2013 02
030 25939527 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (NON-ADJ LUMBAR) DM47(AQ9, EWH) (EXC AL2) 2011-2013 01
031 25955770 FRAME, D/SEAT BK (SUB-ASM) (*KIT1) DM47(EWH) 2011-2013 01
032 25995123 BUMPER, F/SEAT BK DM 2011-2013 02
033 25994442 SUPPORT, D/SEAT H/RST DM47 2011-2013 01
034 22737804 COVER, D/SEAT BK (EBONY) DM47(AQ9, EWH, 01G) (EXC AL2, AX4, A45) 2011-2011 01
034 22737805 COVER, D/SEAT BK (TITANIUM) DM47(AQ9, EWH, 01C) (EXC AL2, AX4, A45) 2011-2011 01
035 20810966 PAD, D/SEAT BK DM47(AQ9, EWH) (EXC AL2, AX4, A45) 2011-2011 01
036 22958608 PANEL, F/SEAT BK UPR FIN (EMBLEM) DM47(AQ9, EWH) (EXC AL2, AX4, A45) 2011-2011 01
037 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM47(AQ9, EWH) (EXC AL2, AX4, A45) 2011-2011 01
K01 25804621 FRAME, D/SEAT BK (INCLS 4, 17-19, 21, 23, 24, 28, 31) DM47(AQ9, EWH) (EXC AL2, A45) 2011-2013 01
