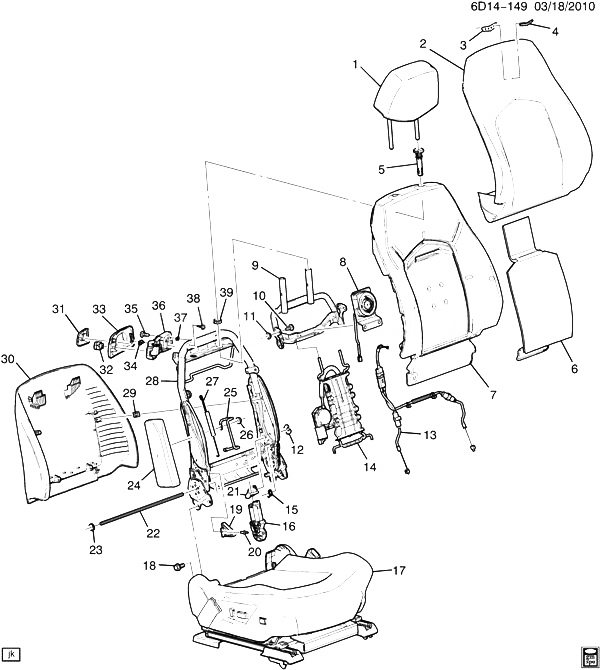

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20812526 |
RESTRAINT, P/SEAT HD (EBONY) (LEATHER) |
DM47(EBS, 01G) |
2011-2011 |
01 |
| 001 |
20867414 |
RESTRAINT, P/SEAT HD (CASHMERE) |
DM(01D) |
2011-2012 |
01 |
| 001 |
20867413 |
RESTRAINT, P/SEAT HD (TITANIUM) |
DM47(AQ9, EBS, 01C) |
2011-2012 |
01 |
| 002 |
22738038 |
COVER, P/SEAT BK (INCLS 3, 4) (EBONY) |
DM47(AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) |
2011-2012 |
01 |
| 002 |
22738039 |
COVER, P/SEAT BK (INCLS 3, 4) (TITANIUM) |
DM47(AH8, AL2, AQ9, EBS, KB6, 01C) (EXC KA1) |
2011-2012 |
01 |
| 002 |
22738040 |
COVER, P/SEAT BK (INCLS 3, 4) (CASHMERE) |
DM47(AH8, AL2, AQ9, EBS, KB6, 01D) (EXC KA1) |
2011-2012 |
01 |
| 003 |
|
RETAINER, P/SEAT BK CUSH (PART OF 2) |
|
2011-2011 |
|
| 004 |
|
EMBLEM, P/SEAT BK CUSH (PART OF 2) |
|
2011-2011 |
|
| 005 |
25785786 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
DM(01D) |
2011-2012 |
01 |
| 005 |
25785789 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) |
DM(01D) |
2011-2012 |
01 |
| 005 |
25785791 |
GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) |
DM(01G) |
2011-2012 |
01 |
| 005 |
25908135 |
GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) |
DM(01C) |
2011-2012 |
01 |
| 005 |
25785788 |
GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) |
DM47(01G) |
2011-2012 |
01 |
| 005 |
25908165 |
GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) |
DM(01C) |
2011-2012 |
01 |
| 006 |
25994412 |
MAT, F/SEAT BK VENT FAN |
DM(AL2, AQ9, A45, EBS, KB6) (EXC KA1) |
2011-2011 |
01 |
| 007 |
20810971 |
PAD, P/SEAT BK (HEAT VENT) |
DM47(AH8, AL2, AQ9, EBS, KB6) (EXC KA1) |
2011-2011 |
01 |
| 008 |
25939274 |
BLOWER, P/SEAT BACK VENTILATION HEAT COOL |
DM(EBS, KB6) (EXC KA1) |
2011-2011 |
01 |
| 009 |
25994442 |
SUPPORT, P/SEAT H/RST |
DM, DN47 |
2011-2012 |
01 |
| 010 |
|
BOLT, P/SEAT H/RST SUPT |
|
2011-2011 |
|
| 011 |
25995124 |
BUSHING, F/SEAT BK PIV |
DM |
2011-2012 |
02 |
| 012 |
|
RETAINER, F/SEAT RECL ACTR BRKT (*KIT1) |
|
2011-2011 |
|
| 013 |
20793164 |
CABLE, F/SEAT BK LAT REL (EZ-ENTRY) (*KIT1) |
DM, DN47 |
2011-2012 |
02 |
| 014 |
25939270 |
LUMBAR SUB, P/SEAT (SHALE) (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (2-WAY) (PWR) |
DM47(AH8, AL2, AQ9) |
2011-2012 |
01 |
| 015 |
|
SPRING, P/SEAT ADJR RTN (*KIT1) |
|
2011-2011 |
|
| 016 |
15894214 |
ACTUATOR, P/SEAT RECL (*KIT1) |
DM |
2011-2012 |
01 |
| 017 |
|
PAD, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/PASSENGER-CUSHION FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2012 |
|
| 018 |
25828643 |
BOLT, F/SEAT |
DM |
2011-2012 |
08 |
| 019 |
25994443 |
BRACKET, P/SEAT FRT |
DM, DN47 |
2011-2012 |
02 |
| 020 |
|
RIVET, P/SEAT BRKT |
|
2011-2011 |
|
| 021 |
|
BRACKET, F/SEAT RECL ACTR (*KIT1) |
|
2011-2011 |
|
| 022 |
15894212 |
BAR, F/SEAT BK FRM CR (*KIT1) |
DM, DN |
2011-2012 |
02 |
| 023 |
11571066 |
NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (D/SEAT RECL) (*KIT1) |
|
2011-2012 |
02 |
| 024 |
20970098 |
AIRBAG, P/SEAT SI |
DM, DN(AQ9) |
2011-2012 |
01 |
| 025 |
25994419 |
BRACKET, P/SEAT SI AIRBAG |
DM |
2011-2012 |
01 |
| 026 |
11517068 |
NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) |
|
2011-2012 |
02 |
| 027 |
25994445 |
SPRING, F/SEAT H/RST ADJ RET |
DM, DN |
2011-2012 |
02 |
| 028 |
25955769 |
FRAME, P/SEAT BK (SUB-ASM) (*KIT1) |
DM, DN47 |
2011-2012 |
01 |
| 029 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 30) |
|
2011-2012 |
04 |
| 030 |
25939492 |
PANEL, P/SEAT BK FIN (INCLS 29) (CASHMERE) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) |
DM47(AH8, AL2, AQ9, EBS, 01D) |
2011-2012 |
01 |
| 030 |
25939494 |
PANEL, P/SEAT BK FIN (INCLS 29) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) |
DM47(AH8, AL2, AQ9, EBS, 01G) |
2011-2011 |
01 |
| 030 |
25939489 |
PANEL, P/SEAT BK FIN (INCLS 29) (EBONY) (PANEL IS WRAPPED IN LEATHER) |
DM47(AH8, AQ9, EBS, 01G) |
2011-2011 |
01 |
| 030 |
25939495 |
PANEL, P/SEAT BK FIN (INCLS 29) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) |
DM35-47-69(AL2, AQ9, EBS, 01C) |
2011-2012 |
01 |
| 030 |
25939490 |
PANEL, P/SEAT BK FIN (INCLS 29) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) |
DM47(AQ9, EBS, 01C) |
2011-2012 |
01 |
| 030 |
25939487 |
PANEL, P/SEAT BK FIN (INCLS 29) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) |
DM(AH8, AL2, AQ9, EBS, 01D) |
2011-2012 |
01 |
| 031 |
20815258 |
HANDLE, P/SEAT RECL (EBONY) (EZ ENTRY) |
DM47(01G) |
2011-2012 |
01 |
| 031 |
20815259 |
HANDLE, P/SEAT RECL (TITANIUM) (EZ ENTRY) |
DM47(01C) |
2011-2012 |
01 |
| 031 |
20815260 |
HANDLE, P/SEAT RECL (CASHMERE) (EZ ENTRY) |
DM47(01D) |
2011-2012 |
01 |
| 032 |
20779566 |
SWITCH, F/SEAT BK POSN (EBONY) |
DM, DN47(01G) |
2011-2012 |
02 |
| 032 |
20779567 |
SWITCH, F/SEAT BK POSN (TITANIUM) |
DM, DN47(01C) |
2011-2012 |
02 |
| 032 |
20779568 |
SWITCH, F/SEAT BK POSN (CASHMERE) |
DM47(01D) |
2011-2012 |
02 |
| 033 |
20815266 |
BEZEL, P/SEAT BK LAT REL HDL (INCLS 34) (EBONY) (EZ ENTRY) |
DM47(01G) |
2011-2012 |
01 |
| 033 |
20815267 |
BEZEL, P/SEAT BK LAT REL HDL (INCLS 34) (TITANIUM) (EZ ENTRY) |
DM, DN47(01C) |
2011-2012 |
01 |
| 033 |
20815268 |
BEZEL, P/SEAT BK LAT REL HDL (INCLS 34) (CASHMERE) (EZ ENTRY) |
DM47(01D) |
2011-2012 |
01 |
| 034 |
|
CLIP, P/SEAT BK CUSH LAT REL HDL (PART OF 33) |
|
2011-2011 |
|
| 035 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 36) |
|
2011-2012 |
02 |
| 036 |
20815250 |
HANDLE, F/SEAT EASY ENTRY (INCLS 35, 37) (EBONY) |
DM47(01G) |
2011-2012 |
01 |
| 036 |
20815251 |
HANDLE, F/SEAT EASY ENTRY (INCLS 35, 37) (TITANIUM) (EZ ENTRY) |
DM, DN47(AH8, 01C) |
2011-2012 |
01 |
| 036 |
20815252 |
HANDLE, F/SEAT EASY ENTRY (INCLS 35, 37) (CASHMERE) (EZ ENTRY) |
DM47(01D) |
2011-2012 |
01 |
| 037 |
11570654 |
NUT, D/SEAT (PART OF 36) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
DM, DN47 |
2011-2012 |
05 |
| 038 |
25995123 |
BUMPER, F/SEAT BK |
DM |
2011-2012 |
02 |
| 039 |
25994444 |
RETAINER, P/SEAT H/RST GDE |
D35-47-69 |
2011-2012 |
01 |
| K01 |
25804612 |
FRAME, P/SEAT BK (INCLS 12, 13, 15, 16, 21-23, 28) |
DM47(AH8, AQ9, EWH, EBS) |
2011-2012 |
01 |
