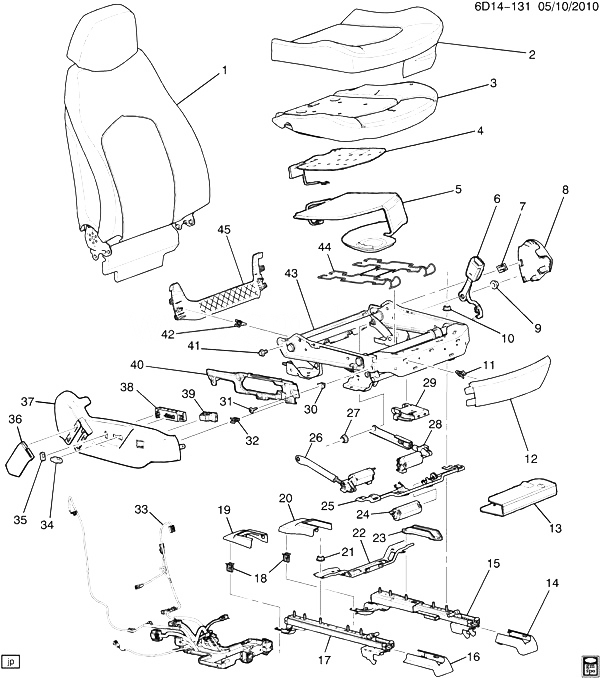

(6D14-131) 2011 DM47 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (VENTED/HEATED KB6) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) 2011-2013
002 25780356 COVER, P/SEAT CUSH (CASHMERE) DM47(AH8, AL2, AQ9, EBS, KB6, 01D) (EXC KA1) 2011-2013 01
002 25908925 COVER, P/SEAT CUSH (TITANIUM) DM47(AH8, AL2, AQ9, EBS, KB6, 01C) (EXC KA1) 2011-2013 01
002 20981873 COVER, P/SEAT CUSH (EBONY) DM47(AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) 2011-2013 01
003 PAD, P/SEAT CUSH (*KIT1) 2011-2011
004 MODULE, AIRBAG FRT PASS PRESENCE (*KIT1) 2011-2011
005 MAT, F/SEAT VENT FAN (*KIT1) 2011-2013
006 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 9) (EBONY) DM, DN(01G, 02W) (EXC AX4) 2011-2011 01
006 19259318 BELT KIT, P/SEAT (BKL SI) (INCLS 9) (CASHMERE) DM, DN(01D) (EXC AX4) 2011-2011 01
006 19181819 BELT KIT, P/SEAT (BKL SI) (INCLS 9) (EBONY) DM, DN(AX4, 01D, 01G) (EXPORT) 2011-2011 01
006 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 9) (TITANIUM) DM, DN(01C) (EXC AX4) 2011-2011 01
007 CLIP, P/SEAT RECL LWR FIN (PART OF 8) 2011-2011
008 15947253 COVER, P/SEAT RECL LWR FIN (INCLS 7) (CASHMERE) DM(01D) 2011-2013 01
008 15947255 COVER, P/SEAT RECL LWR FIN (INCLS 7) (EBONY) DM(01G) 2011-2013 01
008 25908859 COVER, P/SEAT RECL LWR FIN (INCLS 7) (TITANIUM) DM, DN(01C) 2011-2013 01
009 NUT, P/SEAT BELT (PART OF 6) 2011-2011
010 NUT, P/SEAT (PART OF 43) 2011-2011
011 CLIP, P/SEAT ADJR FIN (PART OF 12) 2011-2011
012 15947234 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (CASHMERE) DM(01D) 2011-2013 01
012 15947236 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (EBONY) DM(01G) 2011-2013 01
012 25908857 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (TITANIUM) DM(01C) 2011-2013 01
013 20777456 COVER, P/SEAT ADJR FIN (EBONY) (CARPET) DM, DN 2011-2013 01
014 20812654 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DM47(01C, 01G) 2011-2013 01
014 20812655 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) DM47(01D) 2011-2013 01
015 TRACK, P/SEAT INR ADJR (PART OF 43) 2011-2011
016 20812657 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DM47(01C, 01G) 2011-2013 01
016 20812658 COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) DM47(01D) 2011-2013 01
017 TRACK, P/SEAT OTR ADJR (PART OF 43) 2011-2011
018 CLIP, P/SEAT (PART OF 19, 20 2011-2011
019 20812663 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (EBONY) DM, DN47(AQ9, 01C, 01G) 2011-2013 01
019 20812664 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (CASHMERE) DM47(01D) 2011-2013 01
020 20812660 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (EBONY) DM47(01C, 01G) 2011-2013 01
020 20812661 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (CASHMERE) DM47(01D) 2011-2013 01
021 NUT, P/SEAT (PART OF 43) 2011-2011
022 BRACE, P/SEAT (PART OF 43) 2011-2011
023 BRACKET, P/SEAT (PART OF 43) 2011-2011
024 ACTUATOR, P/SEAT ADJR (PART OF 25, 43) 2011-2011
025 15894137 MOTOR, P/SEAT ADJR ACTR (INCLS 24) (PART OF 43) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DM 2011-2013 01
026 15894173 ACTUATOR, F/SEAT TILT ADJR (PART OF 43) DM(AL2, A45) 2011-2013 01
026 15894172 ACTUATOR, F/SEAT TILT ADJR (PART OF 43) DM(AQ9) (EXC AL2, A45) 2011-2013 01
026 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 43) DM(AH8, AL2) 2011-2013 01
026 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 43) DM47(AH8) (EXC AL2) 2011-2013 01
027 NUT, P/SEAT (PART OF 43) 2011-2011
028 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 43) DM 2011-2011 01
029 25780793 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL DM(EBS, KB6) (EXC KA1) 2011-2013 01
030 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2011-2013 09
031 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2011-2013 09
032 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 37) 2011-2013 04
033 20930111 HARNESS, P/SEAT CONT MDL WRG DM47(AH8, AL2, AQ9, EBS, KB6) (EXC KA1) 2011-2011 01
033 20812617 HARNESS, P/SEAT CONT MDL WRG DM47(AH8, AL2, AQ9, EBS, KB6) (EXC KA1) 2011-2011 01
034 15889525 KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) DM47(01D) 2011-2013 01
034 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DM, DN(01C) 2011-2013 01
034 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN35-47-69(01G) 2011-2013 01
034 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN47(02W) 2011-2013 01
035 15222985 KNOB, P/SEAT RECL (TITANIUM) DM(01C) 2011-2013 01
035 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DM47(01G) 2011-2013 01
035 15889531 KNOB, P/SEAT RECL (CASHMERE) (16.682) DM47(01D) 2011-2013 01
036 15952350 COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) DM47(01D) 2011-2011 01
037 25908858 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 32) (TITANIUM) (8-WAY) DM(AH8, AL2, 01C) 2011-2011 01
037 25994758 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 32) (CASHMERE) DM47(AH8, AL2, AQ9, EBS, 01D) 2011-2013 01
037 25994756 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 32) (EBONY) DM, DN47(AQ9, 01G, 02W) 2011-2013 01
038 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DM 2011-2013 01
039 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DM(01G) 2011-2011 01
039 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DM(01D) 2011-2013 01
040 25994140 BRACKET, P/SEAT RECL HDL BZL DM(AQ9, EBS, EAM, EWH) 2011-2013 01
041 25828643 BOLT, F/SEAT DM 2011-2013 08
042 CLIP, P/SEAT ADJR FIN (PART OF 45) 2011-2011
043 20993915 FRAME, P/SEAT CUSH (INCLS 10, 15, 17, 21-28, 44) (SERVICE BY 20929302 FOR RECARO SEAT) DM47(AH8, AL2, AQ9, EBS) 2011-2013 01
044 WIRE, P/SEAT CUSH PAD (PART OF 43) 2011-2011
045 15947257 COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (CASHMERE) (11.573) DM(01D) 2011-2013 01
045 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (EBONY) (11.573) DM, DN(01G) 2011-2013 01
045 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (TITANIUM) (11.573) D35-47-69(01C) 2011-2013 01
K01 22739288 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3-5) DM, DN(EBS, ECH, KB6) 2011-2013 01
