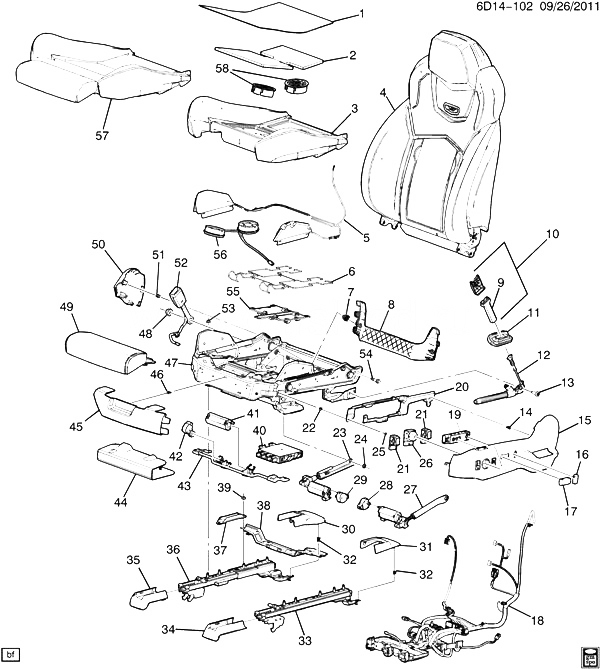

(6D14-102) 2011 DN47 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (VENTED/HEATED KB6, RECARO W2E) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HEATER, D/SEAT CUSH (PART OF 57) 2011-2011
002 MAT, F/SEAT VENT FAN (PART OF 57) 2011-2011
003 PAD, D/SEAT CUSH (PART OF 57) 2011-2011
004 COVER, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) (EBONY) 2011-2011
005 20793003 BLADDER, F/SEAT CUSH SI BOLS (CUSH FRAME) DN47(W2E) 2011-2011 04
006 15894132 WIRE, D/SEAT CUSH PAD (PART OF 47) DM, DN47 2011-2011 01
007 CLIP, D/SEAT INR ADJR RR FIN (PART OF 8) 2011-2011
008 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 7) (EBONY) (11.573) DN(01G) 2011-2011 01
008 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 7) (EBONY) (11.573) DN47(02W) 2011-2011 01
008 25908343 COVER, D/SEAT CUSH CLOSEOUT (INCLS 7) (TITANIUM) (11.573) D35-47-69(01C) 2011-2011 01
009 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 10) 2011-2011
010 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 9) (EBONY) (LOWER) DM, DN(01G) 2011-2011 02
010 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 9) (TITANIUM) (LOWER) DM, DN(01C) 2011-2011 02
011 25982266 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN47(02W) 2011-2011 01
011 25982266 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN(01G) 2011-2011 01
011 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) D35-47-69(01C) 2011-2011 01
012 19257693 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 13) DM, DN47 2011-2011 01
013 11609992 BOLT, D/SEAT BELT TENSR (RETR SI) (PART OF 12) (M10X1.5X30, 30 THD) (8.977) DM, DN47 2011-2011 01
014 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 15) 2011-2011 04
015 20793327 BEZEL, D/SEAT ADJR SW (INCLS 14) (TITANIUM) DN47(A45, KB6, W2E, 01C) (EXC KA1) 2011-2011 01
015 20793326 BEZEL, D/SEAT ADJR SW (INCLS 14) (EBONY) DM, DN47(ECH, KB6, W2E, 01G, 02W) (EXC KA1) 2011-2011 01
016 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) DN(01C) 2011-2011 01
016 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) DN47(01G, 02W) 2011-2011 01
017 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) DN(01C) 2011-2011 01
017 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DN47(02W) 2011-2011 01
017 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DN(01G) 2011-2011 01
018 25994400 HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) DM, DN47(AL2, AQ9, A45, ECH, KA1) (EXC KB6) 2011-2011 01
018 20929297 HARNESS, D/SEAT WRG DN47(AL2, A45, ECH, KB6, W2E) (EXC KA1) 2011-2011 01
019 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) DM, DN 2011-2011 01
020 20792969 BRACKET, F/SEAT ADJR FIN CVR (11.419) DN47(A45, W2E) (EXC KA1) 2011-2011 01
021 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DN47(02W) 2011-2011 01
021 25908452 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) D(01C) 2011-2011 01
021 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DN47(01G) 2011-2011 01
021 25802502 SWITCH, D/SEAT LUMBAR CONT (LUMBAR ADJ) (EBONY) (16.682) DN47(AL2, A45, ECH, KB6, W2E, 01G) (EXC AX4, KA1) 2011-2011 01
021 25802505 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) (16.682) DN47(ECH, W2E, 01C) (EXC KA1) 2011-2011 01
022 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (PART OF 47) 2011-2011 AR
023 15894173 ACTUATOR, F/SEAT TILT ADJR (PART OF 47) (INCLS 29) DN(AL2, A45) 2011-2011 01
024 NUT, D/SEAT (PART OF 47) 2011-2011
025 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2011-2011 09
026 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DN47(02W) 2011-2011 01
026 25908452 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) D(01C) 2011-2011 01
026 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DN47(01G) 2011-2011 01
026 25802502 SWITCH, D/SEAT LUMBAR CONT (LUMBAR ADJ) (EBONY) (16.682) DN47(AL2, A45, ECH, KB6, W2E, 01G) (EXC AX4, KA1) 2011-2011 01
026 25802505 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) (16.682) DN47(ECH, W2E, 01C) (EXC KA1) 2011-2011 01
027 15894164 ACTUATOR, D/SEAT OTR ADJR RR VERT (PART OF 47) (INCLS 28) DN(AL2, A45) 2011-2011 01
028 MODULE, D/SEAT ADJR MEMORY (PART OF 27, 47) 2011-2011
029 MODULE, D/SEAT ADJR MEMORY (PART OF 23, 47) 2011-2011
030 20812651 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 32) (EBONY) DN47(01C, 01G, 02W) 2011-2011 01
031 20812648 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 32) (EBONY) DN47(01C, 01G, 02W) 2011-2011 01
032 CLIP, D/SEAT (PART OF 30, 31) 2011-2011
033 TRACK, D/SEAT OTR ADJR (PART OF 47) 2011-2011
034 20812642 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DN47(01C, 01G, 02W) 2011-2011 01
034 20812657 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DN47(01C, 01G, 02W, KB6) (EXC KA1) 2011-2011 01
035 20812645 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DN47(AL2, A45, ECH, KB6, W2E, 01G, 02W) (EXC KA1) 2011-2011 01
035 20812642 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DN47(AL2, A45, ECH, KB6, W2E, 01C) (EXC AX4, KA1) 2011-2011 01
035 20812645 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DN47(AL2, AQ9, A45, ECH, KA1, 01C, 01G, 02W) (EXC KB6) 2011-2011 01
036 TRACK, D/SEAT INR ADJR (PART OF 47) 2011-2011
037 BRACE, D/SEAT (PART OF 47) 2011-2011
038 BRACE, D/SEAT (PART OF 47) 2011-2011
039 NUT, D/SEAT (PART OF 47) 2011-2011
040 20938299 MODULE, D/SEAT ADJR MEMORY DM, DN47 2011-2011 AR
040 20938299 MODULE, D/SEAT ADJR MEMORY (11.558) DM, DN47 2011-2011 AR
041 ACTUATOR, D/SEAT ADJR (PART OF 43, 47) 2011-2011
042 MODULE, D/SEAT ADJR MEMORY (PART OF 43, 47) 2011-2011
043 15894138 MOTOR, D/SEAT ADJR ACTR (PART OF 47) (INCLS 41, 42) (W/SEAT ADJR MEMORY MDL) (ACDelco #15894138) DN(A45) 2011-2011 01
043 15894137 MOTOR, D/SEAT ADJR ACTR (PART OF 47) (INCLS 41, 42) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DN 2011-2011 01
044 20777456 COVER, D/SEAT ADJR FIN (EBONY) (CARPET) DM, DN 2011-2011 01
045 20859969 PANEL, D/SEAT CUSH FIN (INCLS 46) (TITANIUM) DN(A45, W2E, 01C) 2011-2011 01
045 20859968 PANEL, D/SEAT CUSH FIN (INCLS 46) (EBONY) DN47(W2E, 01G, 02W) (EXC KA1) 2011-2011 01
046 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 45) 2011-2011 03
047 20929303 FRAME, D/SEAT CUSH (INCLS 6, 21-23, 27-29, 33, 36-39, 41-43, 53) (SERVICE CUSHION FRAME) DN47(AL2, A45, ECH, KB6, W2E) (EXC KA1) 2011-2011 01
047 20993911 FRAME, D/SEAT CUSH (INCLS 6, 21-23, 27-29, 33, 36-39, 41-43, 53) DN47(AL2, AQ9, A45, ECH, KA1) 2011-2011 01
048 NUT, D/SEAT BELT (BKL SI) (PART OF 52) 2011-2011
049 PAD, F/SEAT CUSH FRT EXTN (PART OF 57) 2011-2011
050 15947251 COVER, D/SEAT INR RECL FIN (INCLS 51) (EBONY) DN47(01G, 02W) 2011-2011 01
050 25908341 COVER, D/SEAT INR RECL FIN (INCLS 51) (TITANIUM) DN(01C) 2011-2011 01
050 15947255 COVER, D/SEAT INR RECL FIN (INCLS 51) (EBONY) DN47(W2E, 01G) 2011-2011 01
050 15947259 COVER, D/SEAT INR RECL FIN (INCLS 51) (EBONY) (11.573) DM, DN(W2E, 01G, ECH) (EXC KA1) 2011-2011 01
050 25908859 COVER, D/SEAT INR RECL FIN (INCLS 51) (TITANIUM) DM, DN(01C) 2011-2011 01
051 CLIP, D/SEAT (PART OF 50) 2011-2011
052 19259317 BELT KIT, D/SEAT (BKL SI) (INCLS 48) (EBONY) DM, DN(01G, 02W) (EXC AX4) 2011-2011 01
052 19259319 BELT KIT, D/SEAT (BKL SI) (INCLS 48) (TITANIUM) DM, DN(01C) (EXC AX4) 2011-2011 01
053 NUT, D/SEAT (PART OF 47) 2011-2011
054 25828643 BOLT, F/SEAT DN 2011-2011 08
055 25994775 BRACKET, D/SEAT ADJR MEMORY MDL DM, DN47 2011-2011 01
056 20793341 BLOWER, D/SEAT CUSH VENTILATION HEAT COOL DN 2011-2011 01
057 20929308 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (SAFFRON) (SERVICE CUSHION COVER) DN47(AL2, A45, ECH, KB6, W2E, 02W) (EXC KA1) 2011-2011 01
057 20792929 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (EBONY) DN35-47(AL2, A45, KB6, W2E, 01G) (EXC KA1) 2011-2011 01
057 20792930 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (TITANIUM) DN35-47(AL2, A45, KB6, W2E, 01C) (EXC KA1) 2011-2011 01
057 20812479 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (SAFFRON) DN47(AL2, AQ9, A45, ECH, KA1, 02W) (EXC KB6) 2011-2011 01
057 20981883 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (TITANIUM) (SUEDE) DN47(AL2, AQ9, A45, ECH, KA1, 01C) (EXC AX4, KB6) 2011-2011 01
057 20812479 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (SAFFRON) DN47(AL2, AQ9, AX4, A45, ECH, KA1, 02W) (EXC KB6) (EXPORT) 2011-2011 01
057 25994184 COVER, D/SEAT CUSH (INCLS 1-3, 49, 58) (EBONY) (SUEDE) DN47(AL2, AQ9, AX4, A45, ECH, KA1, 01G) (EXC KB6) (EXPORT) 2011-2011 01
058 HEATER, D/SEAT CUSH (PART OF 57) 2011-2011
