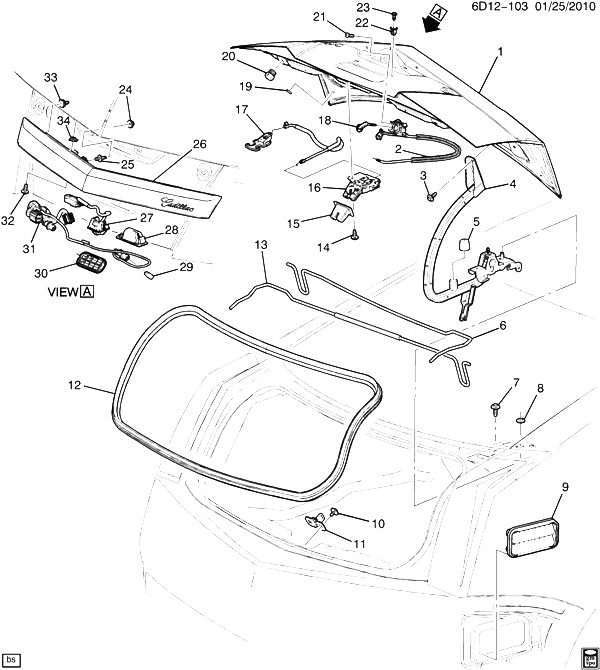

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20955445 |
LID, R/CMPT |
DM, DN47 |
2011-2013 |
01 |
| 002 |
20789740 |
CYLINDER KIT, R/CMPT LID LK (W/ KEY) (INCLS 18) (ACDelco #D1489G) |
D47(ATH) |
2011-2013 |
01 |
| 002 |
22821172 |
CYLINDER KIT, R/CMPT LID LK (W/ KEY) (INCLS 18) |
D47(ATG) |
2011-2013 |
01 |
| 003 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (R/CMPT LID HGE (LID SI)) |
|
2011-2013 |
04 |
| 004 |
20831463 |
HINGE, R/CMPT LID |
DM, DN47 |
2011-2013 |
01 |
| 004 |
20831464 |
HINGE, R/CMPT LID |
DM, DN47 |
2011-2013 |
01 |
| 005 |
|
COVER, R/CMPT LID HGE BPR |
|
2011-2013 |
|
| 006 |
25816312 |
ROD, R/CMPT LID HGE TORQ |
DM, DN47 |
2011-2013 |
01 |
| 006 |
23138604 |
ROD, R/CMPT LID HGE TORQ (12.187) (SERV CMP OF SPOILER PKGS) |
DM47 |
2011-2013 |
01 |
| 007 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (R/CMPT LID HGE (BODY SI)) |
|
2011-2013 |
02 |
| 008 |
11500324 |
WASHER, M10X 2.5 THK PHOS (R/CMPT LID HGE (BODY SI)) (ACDelco #11500324) |
|
2011-2013 |
02 |
| 008 |
11516071 |
NUT, M8X1.25, 7.1THK, 13.05 O.D., 10, ZC (R/CMPT LID HGE (BODY SI)) |
|
2011-2013 |
02 |
| 009 |
22702778 |
VALVE, QTR OTR PNL PRESS RLF |
DM |
2011-2013 |
02 |
| 009 |
22702778 |
VALVE, QTR OTR PNL PRESS RLF |
DN |
2011-2013 |
02 |
| 010 |
11609540 |
BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (R/CMPT LID LAT STKR) (8.977) |
|
2011-2013 |
02 |
| 011 |
13321093 |
STRIKER, R/CMPT LID LAT |
D47 |
2011-2013 |
01 |
| 012 |
20821451 |
WEATHERSTRIP, R/CMPT LID |
DM, DN47 |
2011-2013 |
01 |
| 013 |
25816311 |
ROD, R/CMPT LID HGE TORQ |
DM, DN47 |
2011-2013 |
01 |
| 013 |
23138603 |
ROD, R/CMPT LID HGE TORQ (12.187) (SERV CMP OF SPOILER PKGS) |
DM47 |
2011-2013 |
01 |
| 014 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (R/CMPT LID LAT) |
|
2011-2013 |
02 |
| 015 |
13501990 |
COVER, R/CMPT LID LAT |
D47 |
2011-2013 |
01 |
| 016 |
13501988 |
LATCH, R/CMPT LID |
D47 |
2011-2013 |
01 |
| 016 |
13501988 |
LATCH, R/CMPT LID (12.242) |
D47 |
2011-2013 |
01 |
| 017 |
20814552 |
CABLE, R/CMPT LID INTR REL LAT |
DM, DN47 |
2011-2013 |
01 |
| 018 |
20985619 |
KEY, DR LK IGN LK (UNCODED) (PART OF 2) (MASTER) |
DM47(ATG) |
2011-2013 |
01 |
| 018 |
25995382 |
KEY, DR LK IGN LK (UNCODED) (PART OF 2) |
D47(ATH) |
2011-2013 |
02 |
| 018 |
20985619 |
KEY, DR LK IGN LK (UNCODED) (PART OF 2) (MASTER) |
DN(ATG) |
2011-2013 |
01 |
| 019 |
25888200 |
PLUG, R/CMPT LID PNL GA HOLE (RECTANGULAR) (12.179) |
DM, DN47 |
2011-2013 |
06 |
| 020 |
90346903 |
BUMPER, R/CMPT LID |
DM, DN47 |
2011-2013 |
02 |
| 021 |
|
RIVET, R/CMPT LID LK CYL |
|
2011-2013 |
|
| 022 |
25704358 |
NUT, RR LIC PLT (15X18X23.8) (7.831) |
D |
2011-2013 |
02 |
| 023 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) |
|
2011-2013 |
02 |
| 024 |
11519612 |
NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (R/CMPT LID APLQ) |
|
2011-2013 |
04 |
| 025 |
11570746 |
STUD, R/CMPT LID APLQ (PART OF 26) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) |
D47(ATH) |
2011-2013 |
02 |
| 026 |
25917674 |
APPLIQUE, R/CMPT LID (W/LIC PLT LP) (INCLS 25, 33) (CHROME) (FOR USE ON VEHICLES BUILT ON OR PRIOR TO 5/1/11) (FOR 2ND DESIGN SEE 22814002) |
DM, DN47(ATH) (EXC UVC) (1ST DES) |
2011-2011 |
01 |
| 026 |
25917675 |
APPLIQUE, R/CMPT LID (W/LIC PLT LP) (INCLS 25, 33) (CHROME) (FOR USE ON VEHICLES BUILT ON OR PRIOR TO 5/1/11) (FOR 2ND DESIGN SEE 22814001) |
DM, DN47(ATH, UVC) (1ST DES) |
2011-2011 |
01 |
| 026 |
20944066 |
APPLIQUE, R/CMPT LID (W/LIC PLT LP) (INCLS 25, 33) (CHROME) (FOR USE ON VEHICLES BUILT ON OR PRIOR TO 5/1/11) (FOR 2ND DESIGN SEE 22814000) |
DM, DN47(ATG, UVC) (EXC ATH) (1ST DES) |
2011-2011 |
01 |
| 026 |
22814000 |
APPLIQUE, R/CMPT LID (INCLS 25, 33) (CHROME) (W/O CAMERA HARN ASM) (FOR USE ON VEHICLES BUILT ON OR AFTER 5/2/11) (FOR 1ST DESIGN SEE 20944066) |
DM, DN47(ATG, UVC) (EXC ATH) (2ND DES) |
2011-2011 |
01 |
| 026 |
22814001 |
APPLIQUE, R/CMPT LID (INCLS 25, 33) (CHROME) (W/O LAMP ASM, CAMERA HARN ASM) (FOR USE ON VEHICLES BUILT ON OR AFTER 5/2/11) (FOR 1ST DESIGN SEE 25917675) |
DM, DN47(ATH, UVC) (2ND DES) |
2011-2011 |
01 |
| 026 |
22814002 |
APPLIQUE, R/CMPT LID (INCLS 25, 33) (CHROME) (W/O HARNESS ASM LAMP ASM) (FOR USE ON VEHICLES BUILT ON OR AFTER 5/2/11) (FOR 1ST DESIGN SEE 25917674) |
DM, DN47(ATH) (EXC UVC) (2ND DES) |
2011-2011 |
01 |
| 027 |
22737873 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY |
DM, DN47(UVC) |
2011-2013 |
01 |
| 028 |
13502178 |
LAMP, RR LIC PLT |
DM, DN47 |
2011-2013 |
02 |
| 029 |
13500812 |
BULB, RR LIC PLT LP (TRADE #W5WLL) (ACDelco #13500812) |
DM, DN47 |
2011-2013 |
01 |
| 030 |
25796933 |
SWITCH, R/CMPT LID REL (PART OF 31) (ARGENT) (INTERIOR MOUNTED ON DOOR) (ACDelco #D1417G) |
DM, DN47(A45) |
2011-2013 |
01 |
| 030 |
20877759 |
SWITCH, R/CMPT LID REL (PART OF 31) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) |
DM, DN47(ATH) |
2011-2013 |
01 |
| 031 |
20942761 |
HARNESS, RR LIC PLT LP WRG (INCLS 30) |
DM, DN47(ATH, UVC) |
2011-2012 |
01 |
| 031 |
20942762 |
HARNESS, RR LIC PLT LP WRG (INCLS 30) |
DM, DN47(ATH) (EXC UVC) |
2011-2012 |
01 |
| 031 |
20942763 |
HARNESS, RR LIC PLT LP WRG (INCLS 30) |
DM, DN47(ATG, UVC) |
2011-2012 |
01 |
| 032 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (R/CMPT LID APLQ) (9.665) |
|
2011-2013 |
02 |
| 033 |
11570701 |
CLIP, R/CMPT LID LWR MLDG (PART OF 26) (M6X1X20, 8 THD) (BOLT - T, 8.8, GMW4205, 15.5 SQ HD W/WASHER.) |
DM, DN47(ATG, UVC) |
2011-2011 |
02 |
| 033 |
11570701 |
CLIP, R/CMPT LID LWR MLDG (PART OF 26) (M6X1X20, 8 THD) (BOLT - T, 8.8, GMW4205, 15.5 SQ HD W/WASHER.) |
DM, DN47(ATH) |
2011-2011 |
02 |
| 034 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (R/CMPT LID APLQ) |
|
2011-2013 |
02 |
