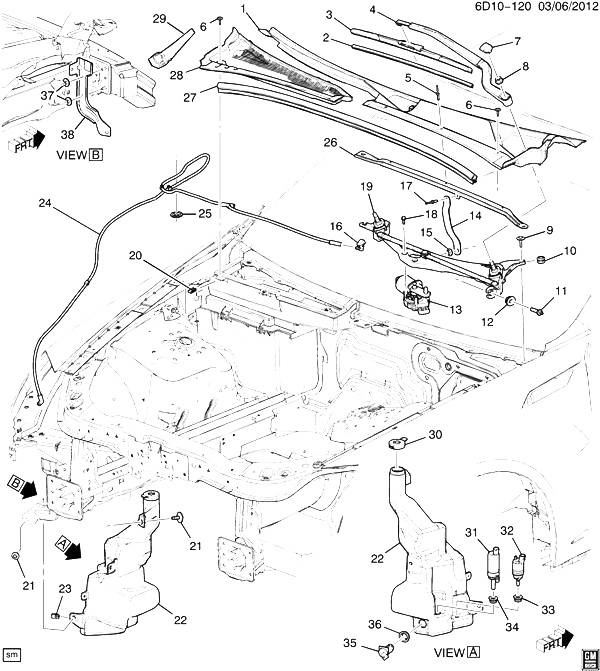

(6D10-120) 2011-2013 DM,DN47 СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ ВЕТРОВОГО СТЕКЛА CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25921038 PANEL, AIR INL GRL (INCLS 5, 14, 17, 26, 27) DN47(LSA, MG9) 2011-2013 01
001 25921038 PANEL, AIR INL GRL (INCLS 5, 14, 17, 26, 27) DM47(LLT, MG9) 2011-2011 01
001 25949050 PANEL, AIR INL GRL (INCLS 5, 26, 27) DM47(LLT, MYA, MYB, MYD) 2011-2011 01
001 25949050 PANEL, AIR INL GRL (INCLS 5, 26, 27) DN47(LSA, MYA, MYB, MYD) 2011-2011 01
002 15890056 WIPER, W/S DM 2011-2013 01
002 15890057 WIPER, W/S DM 2011-2013 01
002 20932035 WIPER, W/S DN 2011-2013 01
002 20932036 WIPER, W/S DN 2011-2013 01
003 15890062 BLADE, WSW DM 2011-2013 01
003 15890064 BLADE, WSW DM 2011-2013 01
003 20791461 BLADE, WSW DN 2011-2013 01
003 20791462 BLADE, WSW DN 2011-2013 01
004 15890058 ARM, WSW DM 2011-2013 01
004 15890060 ARM, WSW DM 2011-2013 01
004 20791463 ARM, WSW DN 2011-2013 01
004 20791464 ARM, WSW DN 2011-2013 01
005 11561261 RIVET, DOME HEAD, 4.76X13.0, AA5052-0 AL ALLOY, GM4472M TYPE O (PART OF 1) 2011-2013 03
006 11609489 BOLT, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AIR INL GRL) 2011-2013 04
007 22793593 CAP, WSW ARM NUT D47 2011-2013 02
008 11609634 NUT, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM) 2011-2013 02
009 BOLT, WSW TRANS (PART OF 19) 2011-2013
010 BUSHING, WSW TRANS LINK INSL (PART OF 19) 2011-2013
011 11570235 STUD, WSW SYS MDL D47 2011-2013 01
012 BUSHING, WSW TRANS LINK INSL (PART OF 19) 2011-2013
013 25877338 MOTOR, WSW (INCLS 18) (ACDelco #25877338) DM 2011-2013 01
013 25877338 MOTOR, WSW (INCLS 18) (ACDelco #25877338) DN 2011-2013 01
014 BRACE, AIR INL GRL PNL (PART OF 1) 2011-2013
015 11589145 NUT, PUSH ON, M10, 20.0 OD, GMW3359 (AIR INL GRL PNL) 2011-2013 01
016 25815793 NOZZLE, WSWA D47 2011-2013 02
017 RIVET, AIR DISTR BRKT (PART OF 1) 2011-2013
018 BOLT, WSW MOT (PART OF 13) 2011-2013
019 20953035 TRANSMISSION, WSW (INCLS 9, 10, 12) (ACDelco #20953035) DN 2011-2013 01
019 20953035 TRANSMISSION, WSW (INCLS 9, 10, 12) (ACDelco #20953035) DM 2011-2013 01
020 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (AIR INL HSG) 2011-2013 03
021 11518094 BOLT, HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (WSWA SOLV CNTNR) 2011-2013 04
022 20865557 CONTAINER KIT, WSWA SOLV (USE ON VEHS W/WSW BOTTLE W/HOLE SMALLER THAN 10.7MM OR 0.421 IN DIAMETER FOR HEADLAMP PUMP) (INCLS 23, 33-35) D47(CE4) 2011-2011 01
023 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 22) 2011-2011 02
024 25967016 HOSE, WSWA SOLV CNTNR (WINDSHIELD WASH HOSE) D47 2011-2013 01
025 11588441 NUT, STAMP SPECIAL BOLT RETAINER, 24.05X17.42X2.5, SAE 1050 SPR STL, GMW3359 (WSW) (PUSH NUT) 2011-2013 01
026 BRACE, AIR INL GRL PNL (PART OF 1) 2011-2013
027 10369166 WEATHERSTRIP, HOOD RR (PART OF 1) D47 2011-2013 01
028 25892885 PANEL, AIR INL GRL DM 2011-2013 01
028 25892885 PANEL, AIR INL GRL DN 2011-2013 01
029 25900731 SEAL, AIR INL GRL PNL SI D35-47-69 2011-2013 01
029 25900732 SEAL, AIR INL GRL PNL SI D35-47-69 2011-2013 01
030 13227300 CAP, WSWA SOLV CNTNR D47 2011-2013 01
031 22780328 PUMP, WSWA (HDL WA) (REAR) (ACDelco #22780328) D47(CE4) 2011-2013 01
032 20865559 PUMP, WSWA (FRT) (*KIT2) D47 2011-2013 01
033 22039457 GROMMET, WSWA SOLV CNTNR (PART OF 22) (ID 6.3MM, OD 18MM) (*KIT2) (10.153) D47 2011-2011 02
034 22039457 GROMMET, WSWA PUMP (PART OF 22) (ID 6.3MM, OD 18MM) D47(EXC CE4) 2011-2011 02
035 15254826 INDICATOR KIT, WSWA SOLV LVL (PART OF 22) (16.065) (ACDelco #15254826) D47 2011-2011 01
036 25956242 SEAL, WSWA SOLV LVL SW (PART OF 22) D47 2011-2013 01
037 11516650 NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (FRT BPR ENGY ABS LWR) 2011-2013 08
038 15869580 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2013 01
038 25924112 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2013 01
K02 22781080 PUMP KIT, WSWA W/SEAL (INCLS FRONT PUMP) (INCLS 32, 33) (W/FILTER GROMMET) (ACDelco #22781080) (USE ON VEH W/JOHNSON ELECTRIC PUMPS WHICH HAVE 90 DEGREE TERMINALS.) D47 2011-2013 01
