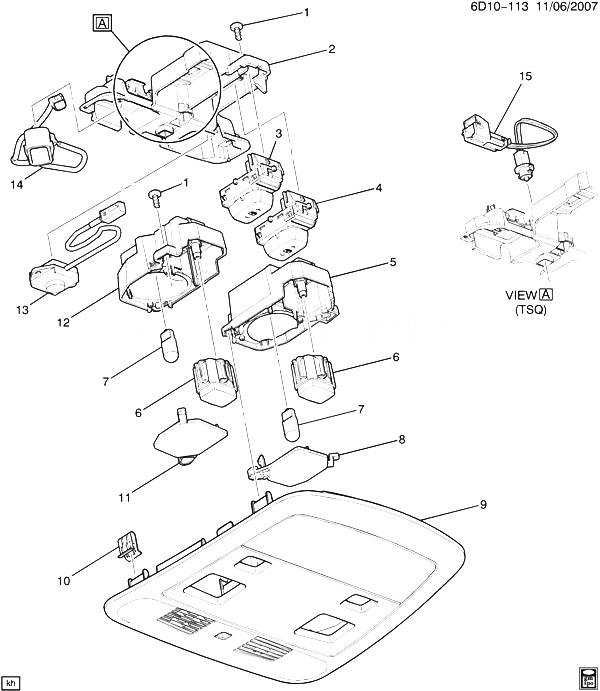

(6D10-113) 2011-2013 DM,DN47 ПОТОЛОЧНАЯ КОНСОЛЬ (SUNROOF CBF, EXC MOVEMENT SENSOR UTV, GARAGE OPENER UG1) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11562028 BOLT, RF CNSL (PART OF 9) D47 2011-2013 AR
002 PLATE, RF CNSL BKG (PART OF 9) 2011-2013
003 25789090 SWITCH, SUN RF SUNSHADE (PART OF 9) D 2011-2013 01
004 25789091 SWITCH, SUN RF (PART OF 9) D 2011-2013 01
005 25886563 LAMP, RF CNSL CTSY RDG (PART OF 9) (INCLS 6-8) D35-47-69 2011-2013 01
006 PUSHBUTTON, W/S HDR CTSY RDG LP SW (PART OF 5, 9, 12) 2011-2013
007 01999382 BULB, (PART OF 5, 9, 12) (ACDelco #W5WLL) (LONGER LIFE) 2011-2013 02
008 25886565 LENS, RF CNSL RDG LP (PART OF 5, 9) D35-47-69 2011-2013 01
009 25940364 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) (SNRF OH CONSOLE W/O ONSTAR) DM47(CBF, UQA, 4AL, 4AM, 4AR) (EXC TSQ, UE1, UG1, UTV, WXS) 2011-2012 01
009 25940365 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) (SNRF OH CONSOLE W/ONSTAR) DM47(CBF, UE1, UQA, 4AL, 4AM, 4AR) (EXC TSQ, UG1, UTV, WXS) 2011-2012 01
009 25940371 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) DM47(CBF, UQS, 4AL, 4AM, 4AR) (EXC TSQ, UE1, UG1, UTV, WXS) 2011-2012 01
009 25940371 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) DN47(CBF, UQS, 4AL, 4AM, 4BZ) (EXC TSQ, UE1, UG1, UTV, WXS) 2011-2011 01
009 25940372 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) DM, DN47(CBF, UQS, 4AL, 4AM, 4AR, 4BZ) (EXC TSQ, UG1, UTV) 2011-2012 01
009 25940372 CONSOLE, RF (INCLS 1-8, 10-14) (EBONY) DM, DN47(CBF, UQS, WXS, 4AL, 4AM, 4AR, 4BZ) (EXC TSQ, UE1, UG1, UTV) 2011-2011 01
009 25940374 CONSOLE, RF (INCLS 1-8, 10-15) (EBONY) DM, DN47(CBF, TSQ, UQS, 4AL, 4AM, 4AR, 4BZ) (EXC UE1, UG1, UTV, WXS) 2011-2012 01
009 25940382 CONSOLE, RF (INCLS 1-8, 10-15) (EBONY) DM, DN47(CBF, TSQ, UE1, UQS, 4AL, 4AM, 4AR, 4BZ) (EXC UG1, UTV, WXS) 2011-2013 01
009 25940382 CONSOLE, RF (INCLS 1-8, 10-15) (EBONY) DM47(CBF, TSQ, UQS, WXS, 4AL, 4AM, 4AR, 4BZ) (EXC UE1, UG1, UTV) 2011-2013 01
009 25940382 CONSOLE, RF (INCLS 1-8, 10-15) (EBONY) DN47(CBF, TSQ, UQS, WXS, 4AL, 4AM, 4AR, 4BZ) (EXC UE1, UG1, UTV) 2011-2013 01
010 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9) 2011-2013 04
011 25886564 LENS, RF CNSL RDG LP (PART OF 9, 12) D35-47-69 2011-2013 01
012 25886562 LAMP, RF CNSL CTSY RDG (PART OF 9) (INCLS 6, 7, 11) D35-47-69 2011-2013 01
013 15246939 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 9) (RDO VOL COMP) DM, DN(EXC UTV) 2011-2013 01
014 15241529 MICROPHONE, MOBILE TEL (PART OF 9) (2-WAY CAVITY) D35-47-69 2011-2011 01
015 25821823 LAMP, RF CNSL CTSY (PART OF 9) (PIN SPOT LED) D35-47-69 2011-2013 01
