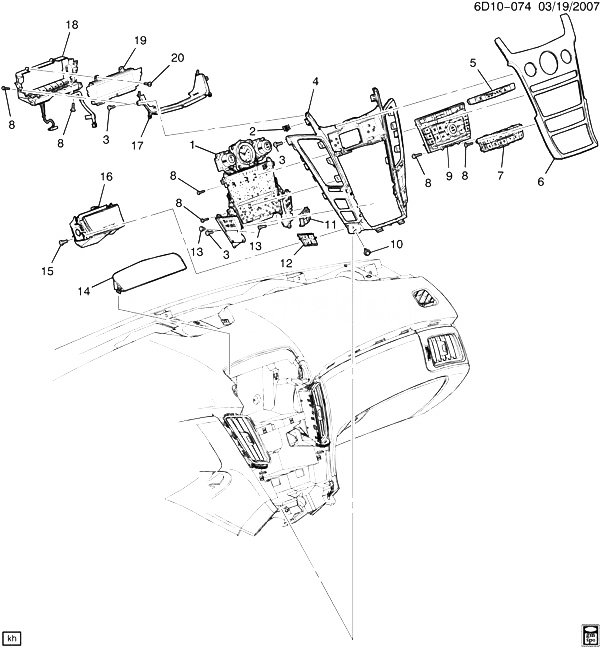

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20819971 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #20819971) |
DM(JJD, KA1, U2T, 4AL) |
2011-2011 |
01 |
| 001 |
20819975 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #20819975) (W/ TC ON TRACTION CONTROL SWITCH.) |
DM35-47-69(JJD, KA1, U2S, 4AM) |
2011-2011 |
01 |
| 001 |
20819980 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #20819980) |
DN(JJD, KA1, U2S, 4AL, 4AM, 4AR, 4BZ) |
2011-2011 |
01 |
| 001 |
20819981 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #20819981) |
DN(JJD, KB6, U2S, 4AL, 4AM, 4AR, 4BZ) |
2011-2011 |
01 |
| 001 |
25947717 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #25947717) (W/ TC ON TRACTION CONTROL SWITCH.) |
DM(JJD, KB6, U2R, 4AM) |
2011-2011 |
01 |
| 001 |
22748621 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #22748621) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KA1, U2S, 4AL) |
2011-2011 |
01 |
| 001 |
22748622 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #22748622) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM35-47-69(JJD, KA1, U2S, 4AM) |
2011-2011 |
01 |
| 001 |
22748623 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (CASHMERE) (ACDelco #22748623) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM35-47-69(JJD, KA1, U2S, 4AC, 4AR) |
2011-2011 |
01 |
| 001 |
22748624 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #22748624) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM35-47-69(KB6, U2S, 4AL) |
2011-2011 |
01 |
| 001 |
22748625 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #22748625) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM35-47-69(JJD, KB6, U2S, 4AM) |
2011-2011 |
01 |
| 001 |
22748626 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (CASHMERE) (ACDelco #22748626) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM35-47-69(JJD, KB6, U2S, 4AC, 4AR) |
2011-2011 |
01 |
| 001 |
22748643 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #22748643) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KA1, U2R, 4AL) |
2011-2011 |
01 |
| 001 |
22748644 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #22748644) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KA1, U2R, 4AM) |
2011-2011 |
01 |
| 001 |
22748647 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KB6, U2R, 4AL) |
2011-2011 |
01 |
| 001 |
22748648 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KB6, U2R, 4AM) |
2011-2011 |
01 |
| 001 |
22748649 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (W/ OFF ON TRACTION CONTROL SWITCH.) |
DM(JJD, KB6, U2R, 4AC, 4AR) |
2011-2011 |
01 |
| 001 |
22748620 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #22748620) |
DM(JJD, KA1, U2T, 4AC, 4AR) |
2011-2013 |
01 |
| 001 |
22748628 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #22748628) |
DM(JJD, U2T, 4AM) (EXC KA1, KB6) |
2011-2011 |
01 |
| 001 |
22748619 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (TITANIUM) (ACDelco #22748619) |
DM35-47-69(JJD, KA1, U2T, 4AM) |
2011-2013 |
01 |
| 001 |
22748627 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 2-9, 11-13, 17-20) (EBONY) (ACDelco #22748627) |
DM(JJD, U2T, 4AL) (EXC KA1, KB6) |
2011-2011 |
01 |
| 002 |
|
RETAINER, I/P ACSRY TR PLT (PART OF 1) |
|
2011-2013 |
|
| 003 |
|
BOLT, I/P ACSRY MT PLT (PART OF 1) |
|
2011-2013 |
|
| 004 |
|
PLATE, I/P ACSRY LWR TR (PART OF 1) |
|
2011-2013 |
|
| 005 |
|
DISPLAY, DRVR INFO (PART OF 1) |
|
2011-2013 |
|
| 006 |
|
PLATE, I/P ACSRY UPR TR (PART OF 1) |
|
2011-2013 |
|
| 007 |
|
CONTROL, HTR A/C (PART OF 1) |
|
2011-2013 |
|
| 008 |
|
BOLT, I/P ACSRY MT PLT (PART OF 1) |
|
2011-2013 |
|
| 009 |
|
CONTROL, AM/FM STEREO CLK CD PLYR RDO (PART OF 1) |
|
2011-2013 |
|
| 010 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) |
|
2011-2013 |
02 |
| 011 |
|
CONTROL, PASS TEMP (PART OF 1) |
|
2011-2013 |
|
| 012 |
|
CONTROL, TEMP (PART OF 1) |
|
2011-2013 |
|
| 013 |
|
BOLT, I/P ACSRY MT PLT (PART OF 1) |
|
2011-2013 |
|
| 014 |
25876731 |
COVER, I/P UPR TR (EBONY) (W/O NAV INFO DISPLAY) |
D35-47-69(U2R, U2S, U2T, 4AL, 4AM, 4AR, 4BZ) (EXPORT) |
2011-2011 |
01 |
| 015 |
11570587 |
BOLT, I/P CTR COMPT (ATTACH ICS COMPT ASM TO IP LWR) (D 30 X 1.12 X 10) |
D |
2011-2013 |
04 |
| 016 |
|
COMPARTMENT, I/P CTR (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (SILVER) |
|
2011-2013 |
|
| 017 |
|
HOUSING, AUDIO DISC PLYR (PART OF 1) |
|
2011-2013 |
|
| 018 |
|
BRACKET, AUDIO PLYR (PART OF 1) |
|
2011-2013 |
|
| 019 |
|
DISPLAY, AUDIO DISC PLYR (PART OF 1) |
|
2011-2013 |
|
| 020 |
|
BOLT, AUDIO PLYR BRKT (PART OF 1) |
|
2011-2013 |
|
