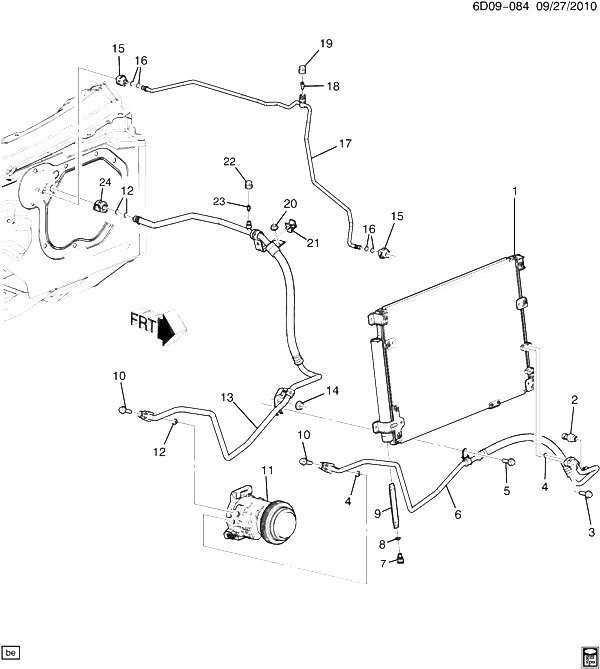

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25876662 |
CONDENSER, A/C (INCLS 7-9) (ACDelco #15-63558) |
DN |
2011-2013 |
01 |
| 002 |
22678731 |
SENSOR, A/C CYCLING FAN CONT A/C REFRIG PRESS (PART OF 6) (HIGH PRESSURE) (ALUMINUM W/O COATING) (ACDelco #15-50147) |
DN |
2011-2013 |
01 |
| 003 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR CNDSR HOSE) |
|
2011-2013 |
01 |
| 004 |
25740416 |
SEAL, A/C CMPR CNDSR HOSE (1/2IN) (PART OF 6) (ACDelco #15-31872) |
DN |
2011-2013 |
02 |
| 005 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (A/C CMPR CNDSR HOSE CLIP BRKT) |
|
2011-2013 |
01 |
| 006 |
22752063 |
HOSE, A/C CMPR CNDSR (INCLS 2, 4) (ACDelco #15-33886) |
DN |
2011-2013 |
01 |
| 007 |
|
PLUG, A/C RCVR DEHYDR (PART OF 1) |
|
2011-2013 |
|
| 008 |
|
SEAL, A/C RCVR DEHYDR CVR (O RING) (PART OF 1) |
|
2011-2013 |
|
| 009 |
|
DESICCANT, A/C REFRIG (PART OF 1) |
|
2011-2013 |
|
| 010 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR HOSE) |
|
2011-2013 |
02 |
| 011 |
19130461 |
COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21224) |
DN |
2011-2013 |
01 |
| 012 |
25740419 |
SEAL, A/C CMPR HOSE (5/8IN) (PART OF 13) (ACDelco #15-31873) |
D |
2011-2013 |
03 |
| 013 |
15261845 |
HOSE, A/C CMPR (INCLS 12, 21-23) (ACDelco #15-33887) |
DN |
2011-2013 |
01 |
| 014 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/C CMPR CNDSR HOSE CLA BRKT) (2.383) |
|
2011-2013 |
01 |
| 015 |
25728831 |
CLAMP, A/C CNDSR EVPR TUBE (L=35M W=31M H=32M) |
D |
2011-2013 |
02 |
| 016 |
25740418 |
SEAL, A/C CNDSR TUBE (O RING) (PART OF 17) (8MM) (ACDelco #15-31874) |
DM, DN |
2011-2013 |
04 |
| 017 |
25859130 |
TUBE, A/C CNDSR (INCLS 16, 18, 19) (ACDelco #15-33889) |
DN(LSA) |
2011-2013 |
01 |
| 018 |
88958095 |
VALVE, A/C REFRIG SERV (PART OF 17) (ACDelco #15-50154) |
D |
2011-2013 |
01 |
| 019 |
20913205 |
CAP, A/C REFRIG SERV VLV (PART OF 17) (M10X1.25) (SHORT THREADED, TETHERED CAP) (ACDelco #15-34411) |
D |
2011-2013 |
01 |
| 020 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (A/C TUBE BRKT) |
|
2011-2013 |
01 |
| 021 |
88958096 |
CLIP, A/C CMPR HOSE (PART OF 13) (BRACKET IS NOT INCLUDED) |
DM, DN |
2011-2013 |
01 |
| 022 |
88957401 |
CAP, A/C CMPR HOSE (SUCTION) (PART OF 13) (NON-TETHERED) (9.177) (ACDelco #15-32562) |
DN |
2011-2013 |
01 |
| 022 |
20913206 |
CAP, A/C REFRIG SERV VLV (PART OF 13) (M9X1.0) (TETHERED CAP) (ACDelco #15-34410) |
D |
2011-2013 |
01 |
| 023 |
88958095 |
VALVE, A/C REFRIG SERV (PART OF 13) (ACDelco #15-50154) |
D |
2011-2013 |
01 |
| 024 |
25728832 |
CLAMP, A/C CMPR CNDSR HOSE (L=38M W=32M H=39M) |
D |
2011-2013 |
01 |
