| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

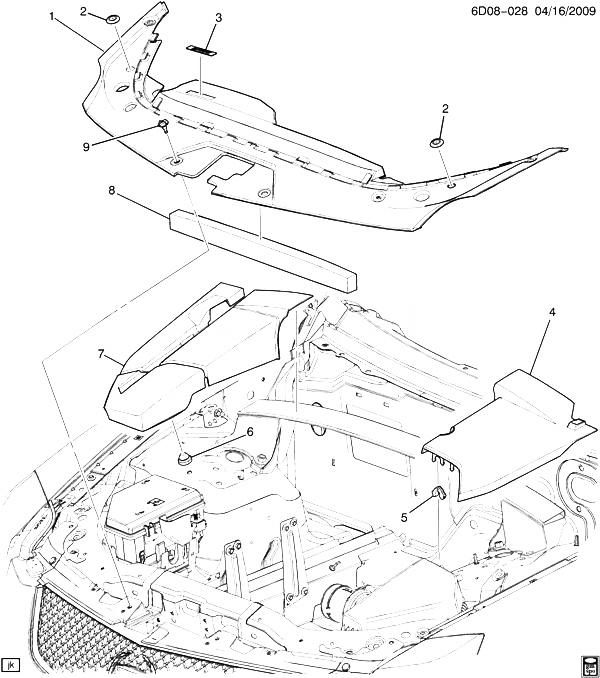

| 001 |
25812252 |
SHIELD, F/CMPT FRT SIGHT (INCLS 2, 3, 8) |
DN(LSA) |
2011-2013 |
01 |
| 002 |
15788083 |
PLUG, F/CMPT UPR S/RL ACC HOLE (PART OF 1) (18.5MM DIA) (ROUND) (12.940) |
DN(LSA) |
2011-2013 |
02 |
| 003 |
25927029 |
EMBLEM, F/END UPR TIE BAR (PART OF 1) (GM PERFORMANCE DIVISION) |
DN |
2011-2013 |
01 |
| 004 |
22836115 |
SHIELD PKG, U/HOOD APPEARANCE (INCLS 5-7) (8.160) |
DN |
2011-2012 |
01 |
| 005 |
12559120 |
INSULATOR, UPR INT MANIF CVR (PART OF 4) (HORSE-SHOE SHAPED) (ACDelco #12559120) |
DN(BNK) |
2011-2011 |
02 |
| 006 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 4) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) |
DN(LSA) |
2011-2013 |
01 |
| 007 |
|
SHIELD, F/CMPT SI SIGHT (PART OF 4) |
|
2011-2013 |
|
| 008 |
|
SEAL, RAD AIR UPR (PART OF 1) |
|
2011-2013 |
|
| 009 |
10382313 |
RETAINER, F/CMPT FRT SIGHT SHLD (025.0X35.6) (PUSH PIN) (8.090) |
D47 |
2011-2013 |
06 |
