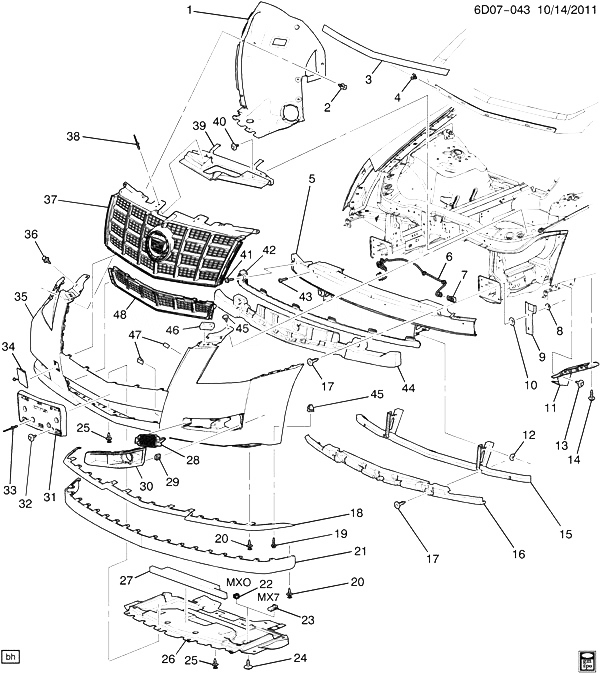

(6D07-043) 2011 DM47 БАМПЕР ПЕРЕДНИЙ (PEDESTRIAN PROTECTION B3T) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25940079 EXTENSION, FRT BPR FASCIA (W/HOLE) DM 2011-2011 01
001 25940080 EXTENSION, FRT BPR FASCIA (W/HOLE) DM 2011-2011 01
002 11589291 RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (FRT BPR FASCIA EXTN) 2011-2011 06
003 25887545 MOLDING, HOOD FRT (INCLS 4) DM 2011-2011 01
004 11570524 RETAINER, HOOD CTR MLDG (PART OF 3) (10.5 X 11.8 X 8.73) D47 2011-2011 08
005 25860888 BAR, FRT BPR IMP DM, DN(B3T, V76) (EXPORT) 2011-2011 01
006 25952187 HARNESS, I/P WRG HARN EXTN (FOR SAFINGDISCRM SENSOR) DM, DN(B3T) 2011-2011 01
007 25812678 SENSOR, PEDESTRIAN IMPACT DETECTION (SEE GROUP 02.000 PEDESTRIAN PROTECTION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (ACTIVE HOOD SYSTEM DISCRIMINATION SENSOR-FRT UPR BEAM) DM, DN(B3T) 2011-2011 01
007 25916157 SENSOR, PEDESTRIAN IMPACT DETECTION (SEE GROUP 02.000 PEDESTRIAN PROTECTION SYSTEM FOR DETAILED ILLUSTRATED VIEW) DM, DN(B3T) 2011-2011 01
008 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) 2011-2011 08
009 15869580 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2011 01
009 15896562 BRACKET, HDLP (W/ FRT SI MKR PARK T/SIG LP) (TO FRONT FASCIA) DM, DN47 2011-2011 01
009 15896563 BRACKET, HDLP (W/ FRT SI MKR PARK T/SIG LP) (TO FRONT FASCIA) DM, DN47 2011-2011 01
009 25924112 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2011 01
010 RETAINER, FRT BPR IMP BAR ANC PLT (PUSH ON) 2011-2011
011 20831753 REINFORCEMENT, FRT BPR FASCIA D47 2011-2011 01
011 20831754 REINFORCEMENT, FRT BPR FASCIA D47 2011-2011 01
012 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS LWR) 2011-2011 04
013 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA REINF) 2011-2011 02
014 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA RET) 2011-2011 02
015 25860887 BAR, FRT BPR LWR IMP D47(B3T) (EXPORT) 2011-2011 01
016 25860890 ABSORBER, FRT BPR FASCIA ENGY LWR DM(B3T, V76) (EXPORT) 2011-2011 01
017 21077131 RETAINER, FRT BPR FASCIA ENGY ABS DM 2011-2011 03
018 25970312 FASCIA, FRT BPR LWR DM 2011-2011 01
019 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT BPR FASCIA OTR RET) 2011-2011 04
020 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR LWR FASCIA) (8.950) (PUSH IN) 2011-2011 14
021 15272090 DEFLECTOR, FRT BPR FASCIA LWR DM 2011-2011 01
022 11570215 NUT, F/CMPT SPH SHLD (M6X1) (FITS HOLE SIZE 9.5X14, 2-3.8MM PNL THK, PUSH-IN TYPE) DM(MX7) 2011-2011 02
023 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (F/CMPT SPH SHLD (PUSH IN)) 2011-2011 04
024 11609681 BOLT, HEX W/FL WA, M6X1X25, 14 THD, 24 OD, GM6202M STEEL, GMW3200 (F/CMPT SPH SHLD) 2011-2011 04
025 11589291 RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT SPH SHLD (PUSH IN)) 2011-2011 12
026 15263372 DEFLECTOR, FRT AIR (INCLS 27) DM(LF1, LLT) 2011-2011 01
027 15274627 SEAL, RAD AIR LWR (PART OF 26) DM 2011-2011 01
028 20907553 DEFLECTOR, FRT BRK CLG AIR DM(FE2, FE5) (EXC TL1) 2011-2011 01
028 20907554 DEFLECTOR, FRT BRK CLG AIR DM(FE2, FE5) (EXC TL1) 2011-2011 01
029 11561857 CLIP, FRT FOG LP ADJ BOLT RET 2011-2011 04
030 20757038 BEZEL, FRT FOG LP DM35-47-69(FE1, FE2) (EXC TB8, TL1, T4F, T94) 2011-2011 01
030 20757039 BEZEL, FRT FOG LP DM35-47-69(FE1, FE2) (EXC TB8, TL1, T4F, T94) 2011-2011 01
030 15904574 BEZEL, FRT FOG LP (CHROME) DM47(FE2, FE3, T4F) (EXPORT) 2011-2011 01
030 15904575 BEZEL, FRT FOG LP (CHROME) DM47(FE2, FE3, T4F) (EXPORT) 2011-2011 01
031 15274674 BRACKET, FRT LIC PLT D47(VK3) 2011-2011 01
031 25967481 BRACKET, FRT LIC PLT DM47(VL6) 2011-2011 01
032 09423101 SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) 2011-2011 04
033 22579423 RIVET, FRT LIC PLT BRKT (5 X 25) (10.710) DM47 2011-2011 04
034 25793665 COVER, FRT BPR FASCIA FRT TOW HOOK ACC HOLE (PAINT TO MATCH) DM 2011-2011 01
035 25793663 FASCIA, FRT BPR (FOR VEHS EQUIPPED W/FRT BRAKE CALIPER COOLING DUCTS, MUST ALSO ORDER DUCTS 20772527 20772528) (PAINT TO MATCH) DM(EXC CE4) 2011-2011 01
035 25793664 FASCIA, FRT BPR (FOR VEHS EQUIPPED W/FRT BRAKE CALIPER COOLING DUCTS, MUST ALSO ORDER DUCTS 20772527 20772528) (PAINT TO MATCH) DM(CE4) 2011-2011 01
036 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR UPR FASCIA) (8.950) (PUSH IN) 2011-2011 02
037 20898704 GRILLE, FRT (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) (UPPER) DM(TL1, T4F) 2011-2011 01
037 25896043 GRILLE, FRT (UPPER) (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) DM(EXC TL1) 2011-2011 01
038 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (FRT BPR FASCIA SUPT) 2011-2011 04
039 22845695 SUPPORT, FRT BPR FASCIA D47 2011-2011 01
040 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT BPR CTR FIL SUPT) (8.977) 2011-2011 04
041 11570143 BOLT, FRT BPR IMP BAR (0.206) D47(B3T) (EXPORT) 2011-2011 01
042 25812678 SENSOR, PEDESTRIAN IMPACT DETECTION (SEE GROUP 02.000 PEDESTRIAN PROTECTION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (ACTIVE HOOD SYSTEM DISCRIMINATION SENSOR-FRT UPR BEAM) DM, DN(B3T) 2011-2011 01
042 25916157 SENSOR, PEDESTRIAN IMPACT DETECTION (SEE GROUP 02.000 PEDESTRIAN PROTECTION SYSTEM FOR DETAILED ILLUSTRATED VIEW) DM, DN(B3T) 2011-2011 01
043 11561427 SCREW, RND HD W/SHLDR M6X1X24 (FRT BPR IMP BAR) 2011-2011 05
044 25860889 ABSORBER, FRT BPR FASCIA ENGY UPR DM(B3T, V76) (EXPORT) 2011-2011 01
045 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA (PUSH IN)) (8.950) (PUSH IN) 2011-2011 02
046 25768800 BUMPER, FRT BPR FASCIA D47 2011-2011 02
047 11562364 CLIP, FRT GRL (CLIP-18X10X11.6) DM 2011-2011 22
048 20898707 GRILLE, FRT LWR (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) DM(TL1, T4F) 2011-2011 01
048 25896041 GRILLE, FRT LWR (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) DM(EXC TL1) 2011-2011 01
