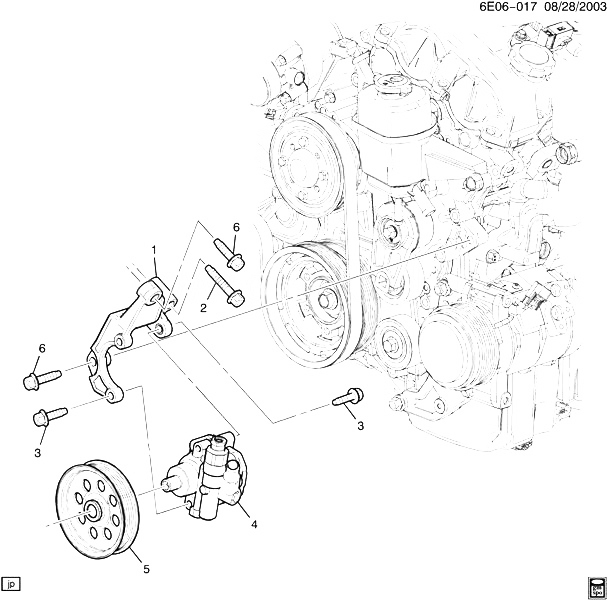

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12602074 |
BRACKET, P/S PUMP |
DM(LF1, LLT) |
2011-2011 |
01 |
| 002 |
11518632 |
BOLT, P/S PUMP BRKT (M10X1.5X70, 25.9 THD) (MATPOINT) |
D |
2011-2013 |
01 |
| 003 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (P/S PUMP) |
|
2011-2013 |
02 |
| 004 |
|
PUMP, P/S (SEE GROUP 06.000 STEERING PUMP ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 005 |
12613170 |
PULLEY, P/S PUMP |
DM(LF1, LLT) |
2011-2011 |
01 |
| 006 |
11588742 |
BOLT, HFH, M10X1.5X50, 26 THD, 22.3 OD, 10.9 STL, GMW3359, M-PT (P/S PUMP BRKT) |
|
2011-2013 |
02 |
