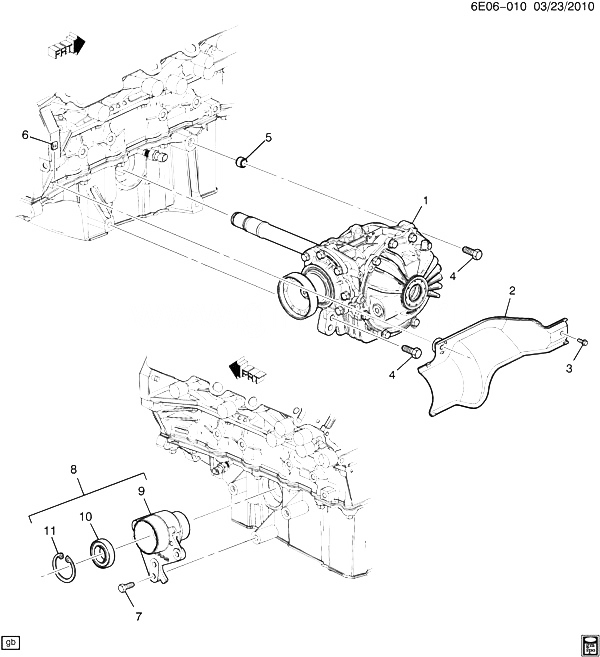

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CARRIER, FRT DIFF (SEE GROUP 06.000 DIFFERENTIAL CARRIER/FRONT AXLE FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 002 |
25790586 |
SHIELD, F/AXL PROP SHF HT |
DM(MX7) |
2011-2013 |
01 |
| 003 |
11514139 |
BOLT, W/WA M6X1X26, 17 OD, HDR PNT, FULL THD, 9.8, POR (F/AXL PROP SHF HT SHLD) |
|
2011-2013 |
02 |
| 004 |
11519346 |
BOLT, FRT DIFF CARR (BOLT-HFH W/CON WA, M12X1.75X60, 34 THD) |
DM |
2011-2013 |
03 |
| 005 |
89047874 |
PIN, FRT DIFF HALF CARR LOC (6.008) |
DM |
2011-2013 |
01 |
| 005 |
89047874 |
PIN, FRT DIFF HALF CARR LOC |
DM |
2011-2013 |
01 |
| 006 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (F/AXL PROP SHF HT SHLD PROPELLER SHAFT) |
|
2011-2013 |
01 |
| 007 |
11519348 |
BOLT, HFH, M10X1.5X41.35, 29.2 THD, 22.3 OD, 10.9, GMW3359 (FRT WHL DRV INTER SHF HSG) |
|
2011-2013 |
03 |
| 008 |
25714853 |
HOUSING, FRT WHL DRV INTER SHF (INCLS 9-11) (INCLS BEARING RETAINER) |
DM(MX7) |
2011-2013 |
01 |
| 009 |
|
HOUSING, FRT WHL DRV INTER SHF (PART OF 8) |
|
2011-2013 |
|
| 010 |
|
BEARING, FRT WHL DRV INTER SHF (PART OF 8) |
|
2011-2013 |
|
| 011 |
88996676 |
RETAINER, FRT WHL DRV INTER SHF BRG (PART OF 8) |
DM(MX7) |
2011-2013 |
01 |
